1695369 (6291570x54) - Canadiana 29" Snow Thrower (2007) Wiring Parts Diagram

29" Snow Thrower

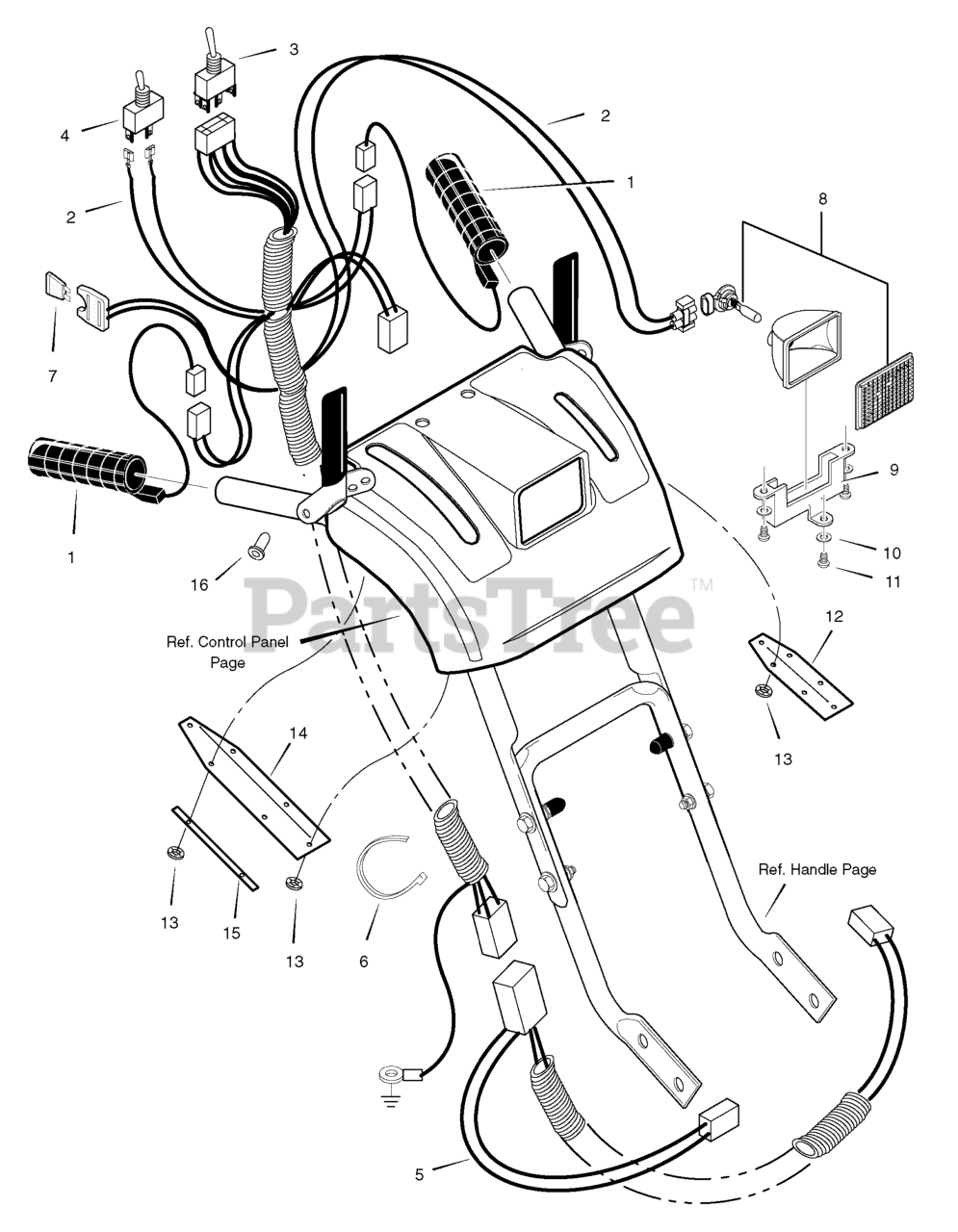

Wiring Parts Diagram

  • Title

1

Murray 1501352MA

GRIP, HEATED

$80.99

$

In Stock, only 1 left!

0

2

Murray 1501351MA

WIRE HARNESS, UPPER

$81.99

$

In Stock, only 1 left!

0

3

Murray 1501348MA

SWITCH, CHUTE ROTATION

$49.99

$

In Stock, only 1 left!

0

4

Murray 1501349MA

SWITCH, HEATED GRIP

$16.99

$

Usually ships in 2-12 days

0

5

Murray 1501350MA

WIRE HARNESS, LOWER

$32.99

$

Usually ships in 2-12 days

0

6

Murray 071372MA

TIE, CABLE

$4.49

$

In Stock, only 1 left!

0

7

FUSE, 7.5 AMP AUTOMOTIVE

$

$

Not available

8

Murray 762343MA

HEADLIGHT ASSEMBLY *

$69.99

$

In Stock, only 1 left!

0

9

Murray 578921MA

BRACKET

$6.99

$

Usually ships in 2-12 days

0

10

Murray 901736MA

WASHER, FLAT

$3.99

$

Usually ships in 2-12 days

0

11

Murray 901696MA

SCREW #8 X 0.50

$3.49

$

Usually ships in 2-12 days

0

12

Murray 1501402MA

COVER

$12.99

$

Usually ships in 2-12 days

0

13

Murray 028X79MA

NUT, PUSH

$3.49

$

Usually ships in 2-12 days

0

14

Murray 1501401MA

COVER

$5.99

$

Usually ships in 2-12 days

0

15

Murray 1501330MA

FRAME

$11.99

$

Usually ships in 2-12 days

0

16

Murray 760987MA

RIVET, 0.125 X 0.23

$3.99

$

In Stock, only 1 left!

0
