1695418 - Snapper 50" Mower Deck 50" Mower Deck - Housing, Arbors & Blades Parts Diagram

50" Mower Deck

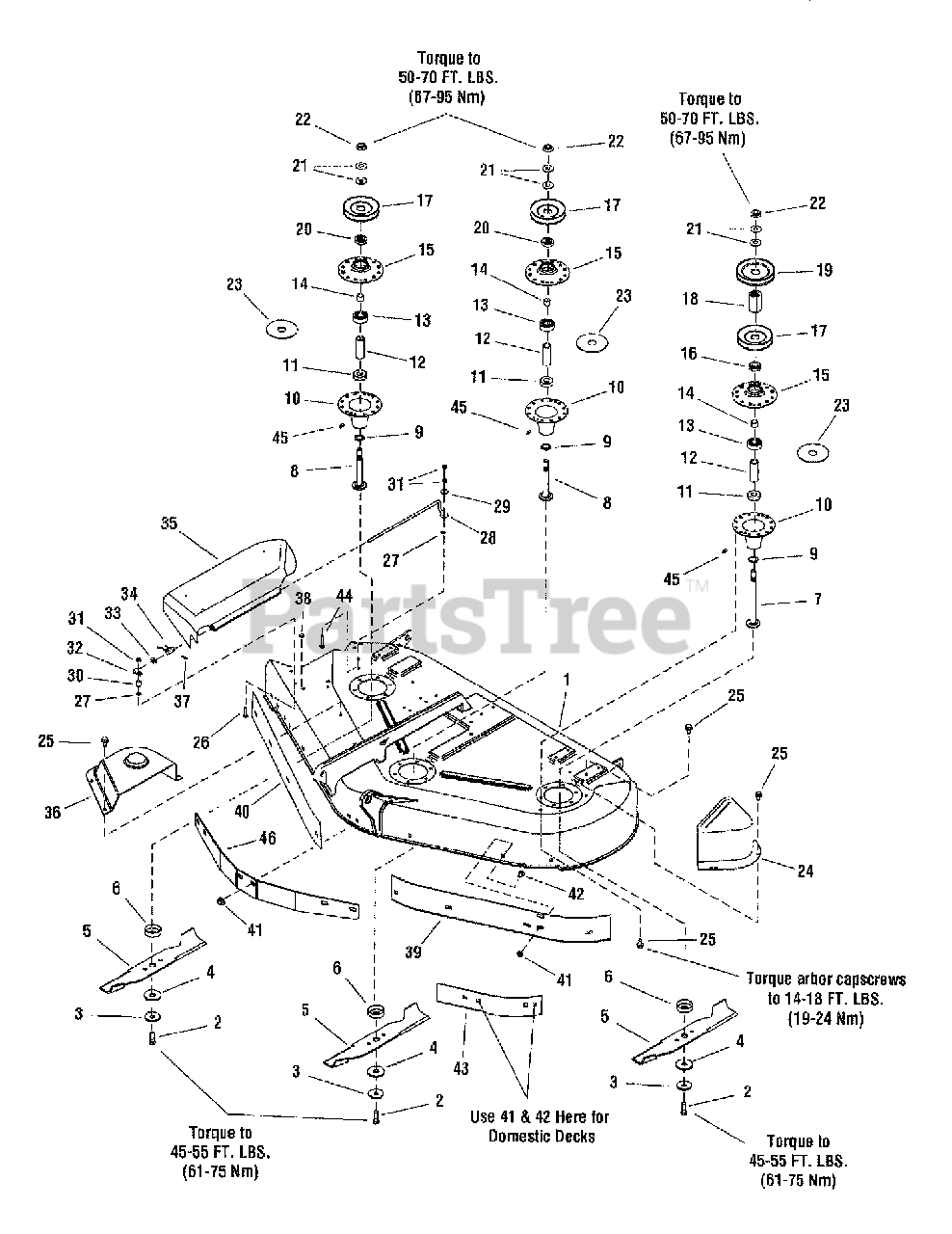

50" Mower Deck - Housing, Arbors & Blades Parts Diagram

  • Title

1

Snapper 1734785D

HOUSING ASSY, 50"

$

$

Not available

2

Snapper 2823471

CAPSCREW, Hex 7/16-14 x 1-1/4
(Superseded to 703579)

$4.49

$

In Stock, Qty 20+

0

3

Snapper 1656916

WASHER, Spring
(Superseded to 1656916SM)

$7.49

$

In Stock, Qty 20+

0

4

Snapper 80003696

WASHER, Hex, 11/16 x 2
(Superseded to 1713089SM)

Note: (Was 1713089)

$4.99

$

In Stock, Qty 20+

0

5

Snapper 1726453

BLADE, Mower 18.13" LG
(Superseded to 1726453YP)

Note: (Was 1708229)

$24.99

$

In Stock, Qty 20+

0

6

Snapper 1713196

SHIELD, Grass Lower Arbor
(Superseded to 1713196SM)

$9.49

$

In Stock, Qty 20+

0

7

Snapper 1713612

SHAFT, Arbor
(Superseded to 1713612SM)

$

$

Not available

8

Snapper 1713195

SHAFT, Arbor
(Superseded to 1713195SM)

$31.99

$

In Stock, Qty 12

0

9

Snapper 1713619

WASHER
(Superseded to 1713619SM)

$4.49

$

In Stock, Qty 20+

0

10

Snapper 1713338A

HOUSING, Arbor Bottom (includes ref 45)
(Superseded to 1713338ASM)

$41.99

$

In Stock, Qty 20+

0

11

Snapper 1705897

BEARING
(Superseded to 1705897SM)

$8.49

$

In Stock, Qty 20+

0

12

Snapper 1732544

SPACER, 2.679
(Superseded to 1732544SM)

$5.49

$

In Stock, Qty 20+

0

13

Snapper 2108202

BEARING
(Superseded to 2108202SM)

$11.99

$

In Stock, Qty 20+

0

14

Snapper 1715724

SPACER, Bearing Sleeve
(Superseded to 1715724SM)

$9.49

$

In Stock, Qty 20+

0

15

Snapper 1655729A

HOUSING, Arbor Top
(Superseded to 1655729ASM)

$14.99

$

In Stock, Qty 20+

0

16

Snapper 1713533

HUB, Pulley Double
(Superseded to 1713533SM)

$9.99

$

In Stock, Qty 18

0

17

Snapper 1713098

PULLEY
(Superseded to 1713098SM)

$19.99

$

In Stock, Qty 12

0

18

Snapper 1713158

HUB, Pulley Double
(Superseded to 1713158SM)

$18.99

$

In Stock, Qty 9

0

19

Snapper 1732951

PULLEY
(Superseded to 1732951SM)

$19.99

$

In Stock, only 4 left!

0

20

Snapper 1713197

HUB,PULLEY
(Superseded to 1713197SM)

$6.99

$

In Stock, Qty 8

0

21

Snapper 1713675

WASHER, Bellville, 9/16
(Superseded to 1713675SM)

$4.49

$

In Stock, Qty 20+

0

22

Snapper 1714419

NUT, Hex Flange 9/16-18
(Superseded to 1714419SM)

$5.99

$

In Stock, Qty 18

0

23

Snapper 1707335

GASKET, Foam
(Superseded to 1707335SM)

$5.99

$

In Stock, Qty 20+

0

24

Snapper 1720560A

COVER, Arbor
(Superseded to 1720560ASM)

$90.99

$

In Stock, only 1 left!

0

25

Snapper 1664847

SCREW, Hex Washer, Taptite 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

26

Snapper 1931320

BOLT, Carriage 1/4-20 x 1-1/4
(Superseded to 703178)

$3.99

$

In Stock, only 2 left!

0

27

Snapper 1960518

NUT, Push On
(Superseded to 703826)

$3.49

$

In Stock, Qty 17

0

28

Snapper 1706709

ROD, Deflector Front
(Superseded to 1706709SM)

$8.49

$

In Stock, Qty 6

0

29

Snapper 80003583

WASHER
(Superseded to 703229)

Note: (Was 1960353)

$4.49

$

In Stock, only 2 left!

0

30

Snapper 1710703

SPACER, 5/8
(Superseded to 1710703SM)

$6.49

$

In Stock, only 3 left!

0

31

Snapper 1920397

NUT, Hex Lock ESNA LIGHT 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

32

Snapper 1704873

CLAMP
(Superseded to 1704873SM)

$4.49

$

In Stock, only 2 left!

0

33

Snapper 1919326

WASHER, Plain
(Superseded to 703332)

$4.49

$

In Stock, Qty 17

0

34

Snapper 7101082

SPRING
(Superseded to 7101082SM)

$8.49

$

Usually ships in 2-12 days

0

35

Snapper 1705449

DEFLECTOR
(Superseded to 1705449SM)

$122.99

$

In Stock, Qty 14

0

36

Snapper 1715673

COVER, Arbor
(Superseded to 1715673SM)

$38.99

$

In Stock, only 3 left!

0

37

Snapper 1723323

CAP, Spring End
(Superseded to 1723323SM)

$4.99

$

In Stock, Qty 7

0

38

Snapper 1705115

PLUG, Hole
(Superseded to 1705115SM)

$4.49

$

In Stock, Qty 6

0

39

Snapper 1716870A

BAFFLE, Blowout, 50" LH
(Superseded to 1716870ASM)

$164.99

$

Usually ships in 2-12 days

0

40

Snapper 1735184A

BAFFLE, Blowout, 50" RH
(Superseded to 1735184ASM)

$128.99

$

Usually ships in 2-12 days

0

41

Snapper 80003641

NUT, Hex Flange 5/16-18
(Superseded to 703330)

Note: (Was 1927557)

$4.99

$

In Stock, Qty 9

0

42

Snapper 1931333

BOLT, Carriage 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

43

Snapper 1734181A

BAFFLE, Front LH
(Superseded to 1734181ASM)

Note: (Used on Model 2690752)

$

$

Not available

44

Snapper 1960633

BOLT, Carriage 1/4-20 x 1-1/2
(Superseded to 704214)

$3.99

$

Usually ships in 2-12 days

0

45

Snapper 1704314

FITTING, Grease
(Superseded to 1704314SM)

$4.99

$

In Stock, Qty 20+

0

46

Snapper 1724538A

BAFFLE, Anti-Blowout
(Superseded to 1724538ASM)

Note: (Used on Model 2690752)

$45.99

$

In Stock, only 1 left!

0
