1695419 - Simplicity 36" Tiller Attachment Drive Group Parts Diagram

36" Tiller Attachment

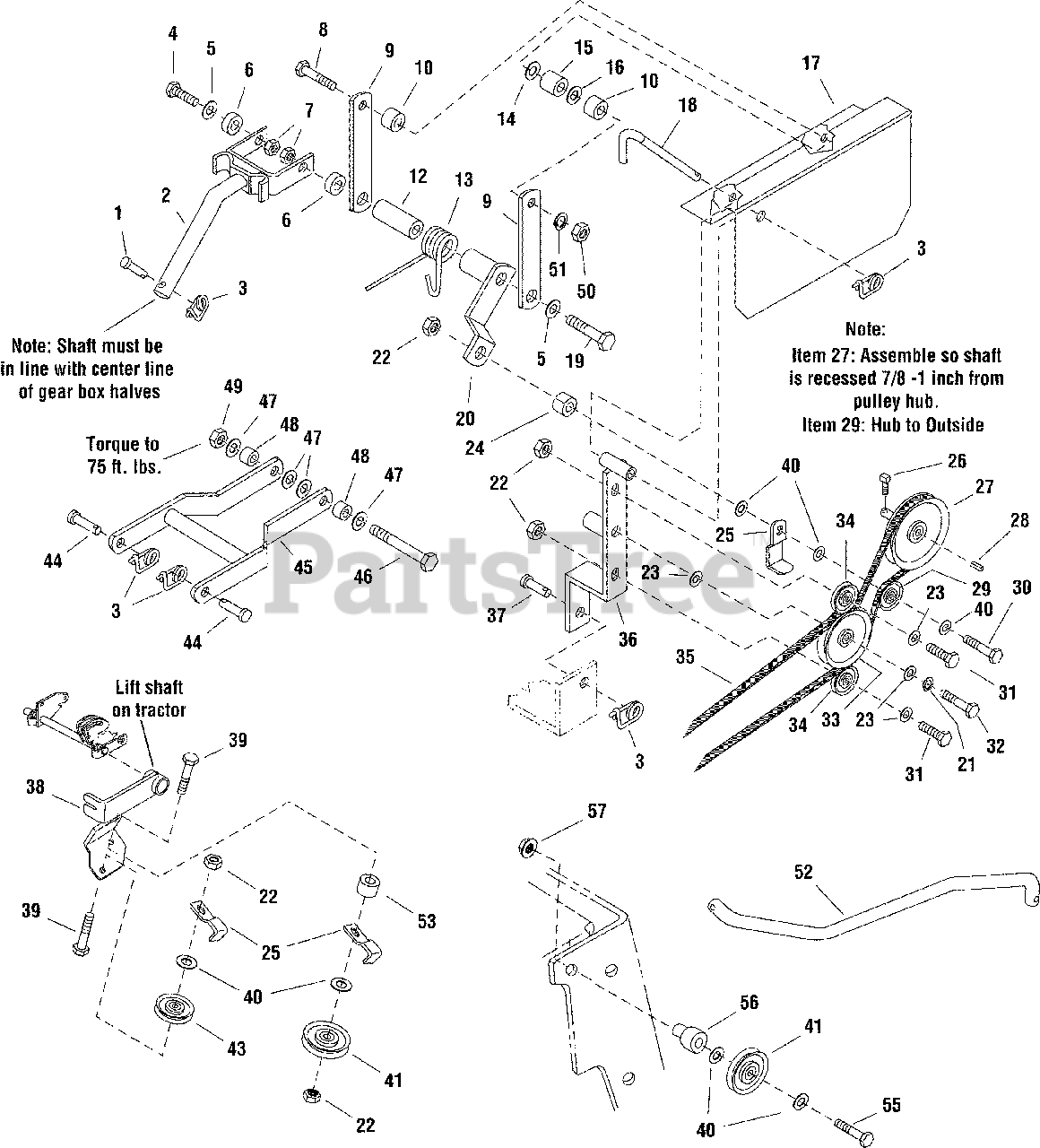

Drive Group Parts Diagram

  • Title

1

Simplicity 2118053

PIN, Round Head Drilled, 3/8 x 2
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

2

Simplicity 1707569A

LIFT ASSEMBLY SHAFT
(Superseded to 1707569ASM)

$302.99

$

Usually ships in 2-12 days

0

3

Simplicity 2176012

SAFETY CLIP
(Superseded to 703852)

$4.49

$

In Stock, Qty 19

0

4

Simplicity 1923471

CAPSCREW, Hex Head, 7/16-14 x 1-1/4, Black
(Superseded to 703579)

$4.99

$

In Stock, Qty 20+

0

5

Simplicity 1925125

WASHER, 7/16
(Superseded to 1925125SM)

$6.99

$

In Stock, only 1 left!

0

6

Simplicity 2105346

SPACER .452 x .75 x .562
(Superseded to 2105346SM)

$30.99

$

Usually ships in 2-12 days

0

7

Simplicity 1930650

NUT, Hex Flange Lock, 7/16-14, Black
(Superseded to 1930650SM)

$5.49

$

In Stock, Qty 15

0

8

Simplicity 1923141

CAPSCREW, Hex Head, 5/16-18 x 2-3/4, Balck
(Superseded to 703869)

$6.49

$

Usually ships in 2-12 days

0

9

Simplicity 2105359A

SUPPORT, Rear Belt Guard
(Superseded to 2105359ASM)

$

$

Not available

10

Simplicity 1704716

SPACER
(Superseded to 1704716SM)

$8.99

$

Usually ships in 2-12 days

0

12

Simplicity 2105339A

SPACER 2 3/16
(Superseded to 2105339ASM)

$13.99

$

Usually ships in 2-12 days

0

13

Simplicity 1707593

SPRING, Torsion
(Superseded to 1707593SM)

$44.99

$

Usually ships in 2-12 days

0

14

Simplicity 2860171

WASHER, Special, Nylon
(Superseded to 2860171SM)

$4.49

$

In Stock, Qty 11

0

15

Simplicity 1666106

BUSHING, .343" x .750" x 1.060"
(Superseded to 1666106SM)

$10.99

$

In Stock, only 1 left!

0

16

Simplicity 1919326

WASHER, 5/16, Black
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

17

Simplicity 1707564A

COVER, Belt
(Superseded to 1707564ASM)

$211.99

$

Usually ships in 2-12 days

0

18

Simplicity 1657562

ROD
(Superseded to 1657562SM)

$7.49

$

In Stock, only 1 left!

0

19

Simplicity 1930585

CAPSCREW, Hex Head, 7/16-14 x 3-1/2, G8
(Superseded to 1930585SM)

$7.49

$

In Stock, only 1 left!

0

20

Simplicity 2105295A

ARM & HUB ASSEMBLY
(Superseded to 2105295ASM)

$

$

Not available

21

Simplicity 1916965

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 5

0

22

Simplicity 1960687

NUT, Hex, 3/8-16
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

23

Simplicity 1924940

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

24

Simplicity 1709923

SPACER .39 x 1 x 1.31
(Superseded to 1709923SM)

$28.99

$

Usually ships in 2-12 days

0

25

Simplicity 1708352A

GUARD, Spring
(Superseded to 1708352ASM)

$37.99

$

Usually ships in 2-12 days

0

26

Simplicity 1960474

SCREW, Set Square Head, Cup Point, 3/8-16 x 1/2
(Superseded to 1960474SM)

$6.49

$

In Stock, Qty 5

0

27

Simplicity 1723854

PULLEY, 7.96" OD x .752" ID, w/.562" Groove, w/Hub
(Superseded to 1723854SM)

$113.99

$

Usually ships in 2-12 days

0

28

Simplicity 2157427

KEY, Parallel .187 x .187 x 1.25
(Superseded to 2157427SM)

$5.49

$

Usually ships in 2-12 days

0

29

Simplicity 1721133

PULLEY, Idler, 2.75" OD x .377" ID x .87 WD
(Superseded to 5106480FS)

$33.99

$

Usually ships in 2-12 days

0

30

Simplicity 1923938

CAPSCREW, Hex Head, 3/8-16 x 3-1/2, Black
(Superseded to 703182)

$6.99

$

Usually ships in 2-12 days

0

31

Simplicity 1921971

CAPSCREW, Hex Head, 3/8-16 x 1-3/4, Black
(Superseded to 704289)

$4.99

$

Usually ships in 2-12 days

0

32

Simplicity 1920415

CAPSCREW, Hex Head, 3/8-16 x 1-1/4, Black
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

33

Simplicity 1706510

PULLEY, Idler, 4" OD x .375" ID x .83" WD
(Superseded to 1706510SM)

$33.99

$

In Stock, only 3 left!

0

34

Simplicity 1706511

PULLEY, Idler, 1.875" OD x .375" ID x .97" WD
(Superseded to 1706511SM)

$33.99

$

Usually ships in 2-12 days

0

35

Simplicity 1723478

V-BELT,167.40" Long
(Superseded to 1723478SM)

$162.99

$

Usually ships in 2-12 days

0

36

Simplicity 1708961A

SHAFT & SUPPORT ASSEMBLY
(Superseded to 1708961ASM)

$

$

Not available

37

Simplicity 1708298

PIN, Round Head Drilled, 3/8 x 1, Black
(Superseded to 1708298SM)

$

$

Not available

38

Simplicity 1735064A

ARM ASSEMBLY, Tiller Idler
(Superseded to 1735064ASM)

$362.99

$

Usually ships in 2-12 days

0

39

Simplicity 1922130

CAPSCREW, Hex Head, .375-16 x 2-1/4
(Superseded to 703872)

$4.99

$

In Stock, Qty 5

0

40

Simplicity 1922755

WASHER, 3/8
(Superseded to 704128)

$5.49

$

In Stock, Qty 20+

0

41

Simplicity 1724387

PULLEY, Idler, 4.00" OD x .669" ID x 1WD, w/Bearing
(Superseded to 1724387SM)

$36.99

$

In Stock, Qty 7

0

43

Simplicity 1721134

PULLEY, 3" OD x .378" ID x .75" WD, w/Bearing
(Superseded to 1721134SM)

$30.99

$

In Stock, only 1 left!

0

44

Simplicity 1753526

PIN, Round Head Drilled, 7/16 x 1-3/4

$

$

Not available

45

Simplicity 1651844A

FRAME ASSEMBLY
(Superseded to 1651844ASM)

$211.99

$

Usually ships in 2-12 days

0

46

Simplicity 1926159

CAPSCREW, Hex Head, 1/2-13 x 5, G8
(Superseded to 1926159SM)

$10.99

$

In Stock, only 1 left!

0

47

Simplicity 1924361

WASHER, 1/2, Black
(Superseded to 703451)

$4.49

$

In Stock, Qty 20+

0

48

Simplicity 2105386

SPACER
(Superseded to 2105386SM)

$32.99

$

Usually ships in 2-12 days

0

49

Simplicity 1930644

NUT, Hex Flange Lock, 1/2-13, Black
(Superseded to 1930644SM)

$3.49

$

In Stock, Qty 14

0

50

Simplicity 1917372

NUT, Hex, 5/16-18, Black
(Superseded to 7091511SM)

$3.49

$

In Stock, only 3 left!

0

51

Simplicity 1917356

LOCKWASHER, 5/16, Black
(Superseded to 703116)

$3.49

$

In Stock, Qty 6

0

52

Simplicity 1735052

ROD, Diff Lock, 15" Long
(Superseded to 1735052SM)

$35.99

$

Usually ships in 2-12 days

0

53

Simplicity 1667812

SPACER
(Superseded to 1667812SM)

$5.99

$

In Stock, Qty 20+

0

55

Simplicity 1921972

CAPSCREW, 3/8-16 x 2-1/2
(Superseded to 703873)

$4.49

$

Usually ships in 2-12 days

0

56

Simplicity 1706644

SPACER
(Superseded to 1706644SM)

$8.99

$

In Stock, only 3 left!

0

57

Simplicity 1928352

NUT, Flange, 3/8-16
(Superseded to 703793)

$4.49

$

Usually ships in 2-12 days

0
