1695433 - Snapper 40" Mower Deck 40" Mower Deck - Height Adjustment & Roller Bar Parts Diagram

40" Mower Deck

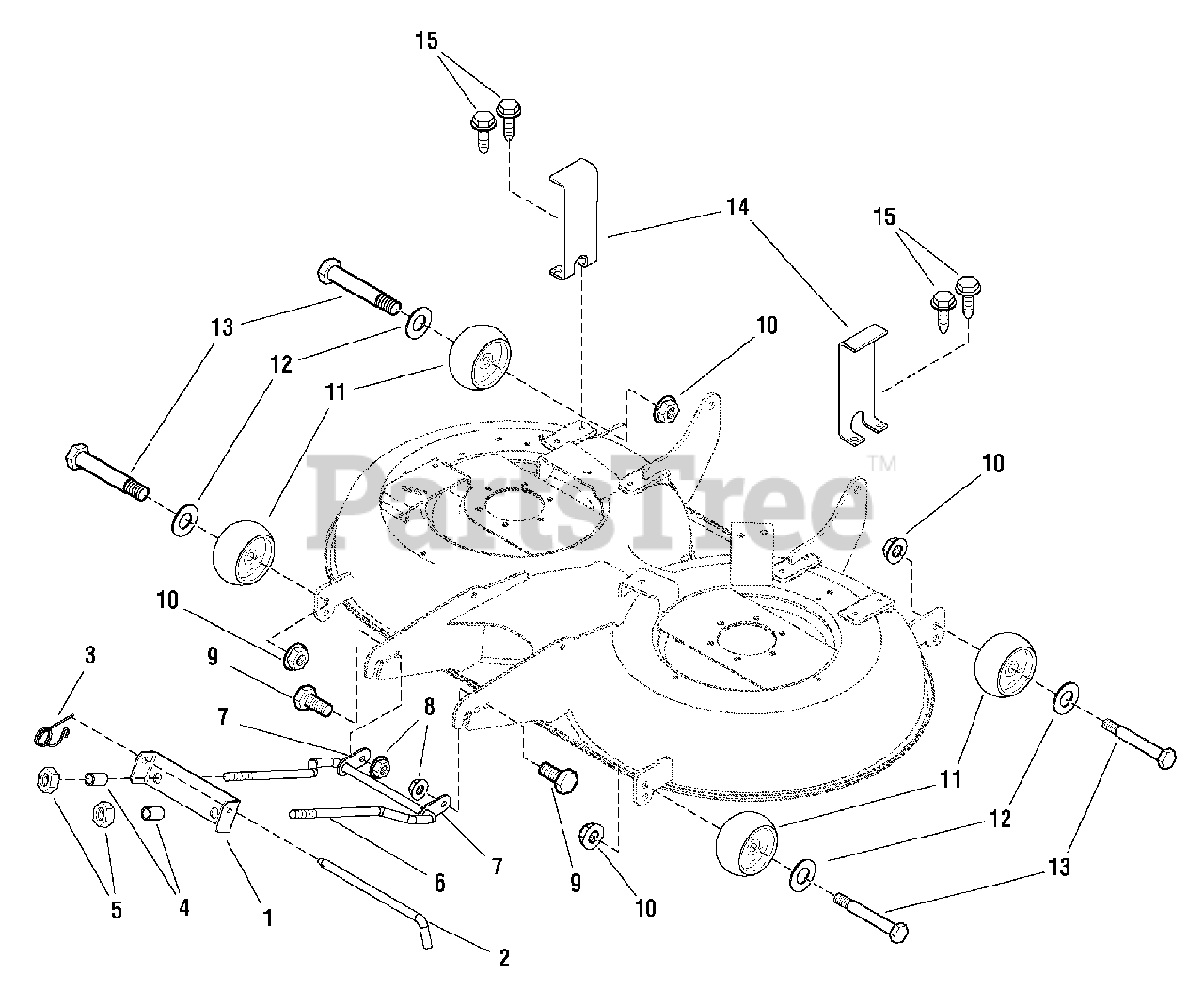

40" Mower Deck - Height Adjustment & Roller Bar Parts Diagram

  • Title

1

Snapper 1730221A

HANGER, Front
(Superseded to 1730221ASM)

$12.99

$

Usually ships in 2-12 days

0

2

Snapper 1731414

PIN, Hitch
(Superseded to 1731414SM)

$14.99

$

In Stock, only 3 left!

0

3

Snapper 2176012

RETAINER, Pin Spring
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

4

Snapper 1679166

SPACER
(Superseded to 1679166SM)

$7.49

$

In Stock, Qty 6

0

5

Snapper 1960379

NUT, Hex Lock ESNA Light, 1/2-13 ,Thin
(Superseded to 1960379SM)

$4.99

$

In Stock, only 2 left!

0

6

Snapper 1730097

ROD, Bail
(Superseded to 1730097SM)

$43.99

$

Usually ships in 2-12 days

0

7

Snapper 1731899A

PLATE, Pivot Lock
(Superseded to 1731899ASM)

$7.99

$

Usually ships in 2-12 days

0

8

Snapper 1931277

NUT, Hex Flange 5/16-18, Whiz Lock
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

9

Snapper 1930591

SCREW, Hex Flange 5/16-18 x 3/4
(Superseded to 80003531)

$5.49

$

In Stock, Qty 16

0

10

Snapper 1960687

NUT, Hex Flange ESNA 3/8-16
(Superseded to 703158)

$3.49

$

In Stock, Qty 20+

0

11

Snapper 1714760

WHEEL
(Superseded to 1714760SM)

$6.49

$

In Stock, Qty 20+

0

12

Snapper 1960170

WASHER, Flat 3/8
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

13

Snapper 2108765

BOLT, Wheel 3/8-16 x 2.781
(Superseded to 2108765SM)

$6.49

$

In Stock, Qty 20+

0

14

Snapper 1732010A

UPSTOP
(Superseded to 1732010ASM)

$29.99

$

Usually ships in 2-12 days

0

15

Snapper 1664847

SCREW, Taptite 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0
