1695539 - Murray 24" Snow Thrower (2008) Gear Case (1742331) Parts Diagram

24" Snow Thrower

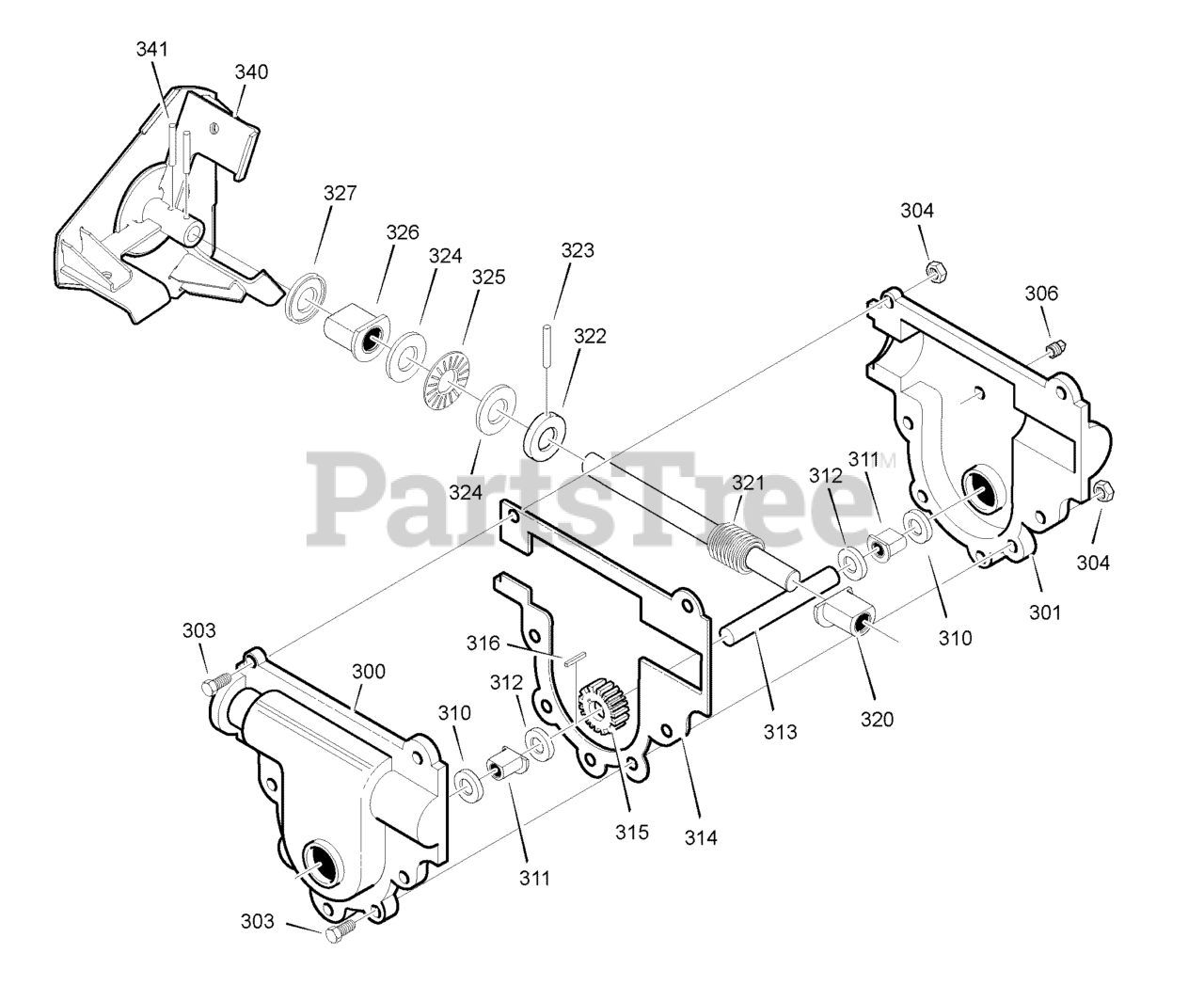

Gear Case (1742331) Parts Diagram

  • Title

300

Murray 10577MA

CASE, Gear, Right

$22.99

$

In Stock, only 1 left!

0

301

Murray 10576MA

CASE, Gear, Left

$22.99

$

Usually ships in 2-12 days

0

303

Murray 710025MA

SCREW, 1/4-20 x 3/4

$4.49

$

Usually ships in 2-12 days

0

304

Murray 15X143MA

NUT, 1/4-20

$4.99

$

In Stock, only 4 left!

0

306

Murray 9344MA

SCREW, 3/8-16 x 1/2
(Superseded to 704213)

$5.49

$

In Stock, only 1 left!

0

310

Murray 9566MA

SEAL, Oil

$12.99

$

In Stock, Qty 10

0

311

Murray 50304MA

BEARING, Flange

$8.49

$

In Stock, Qty 16

0

312

Murray 48275MA

WASHER, Flat

$6.49

$

In Stock, Qty 10

0

313

Murray 1501189MA

SHAFT, Auger Output

$55.99

$

In Stock, only 1 left!

0

314

Murray 51279MA

GASKET, Gearbox

$12.99

$

In Stock, only 2 left!

0

315

Murray 51405MA

GEAR, Worm

$78.99

$

In Stock, only 3 left!

0

316

Murray 431787MA

KEY, Woodruff
(Superseded to 703891)

$4.99

$

In Stock, Qty 20+

0

320

Murray 50221MA

BEARING, Flange

$8.49

$

Usually ships in 2-12 days

0

321

Murray 1501191MA

SHAFT, Auger Input (Impeller)

$75.99

$

In Stock, only 1 left!

0

322

Murray 580295MA

COLLAR, Thrust

$22.99

$

Usually ships in 2-12 days

0

323

Murray 454565MA

PIN, Spring

$

$

Not available

324

Murray 48275MA

WASHER, Flat

$6.49

$

In Stock, Qty 10

0

325

Murray 50684MA

BEARING, Roll

$6.49

$

In Stock, only 3 left!

0

326

Murray 50304MA

BEARING, Flange

$8.49

$

In Stock, Qty 16

0

327

Murray 9566MA

SEAL, Oil

$12.99

$

In Stock, Qty 10

0

340

Murray 1740929BJYP

IMPELLER
(Superseded to 1740929AYP)

$359.99

$

Usually ships in 2-12 days

0

341

Murray 454565MA

PIN, Spring

$

$

Not available

--

Murray 333431MA

LUBRIPLATE, GR132, 14oz
(Superseded to 770622)

Note: (Not Illustrated)

$31.99

$

Usually ships in 2-12 days

0
