1695575 - Brute 27" Snow Thrower, 11.5 Gross TP (2008) Auger Housing (1736718) Parts Diagram

27" Snow Thrower, 11.5 Gross TP

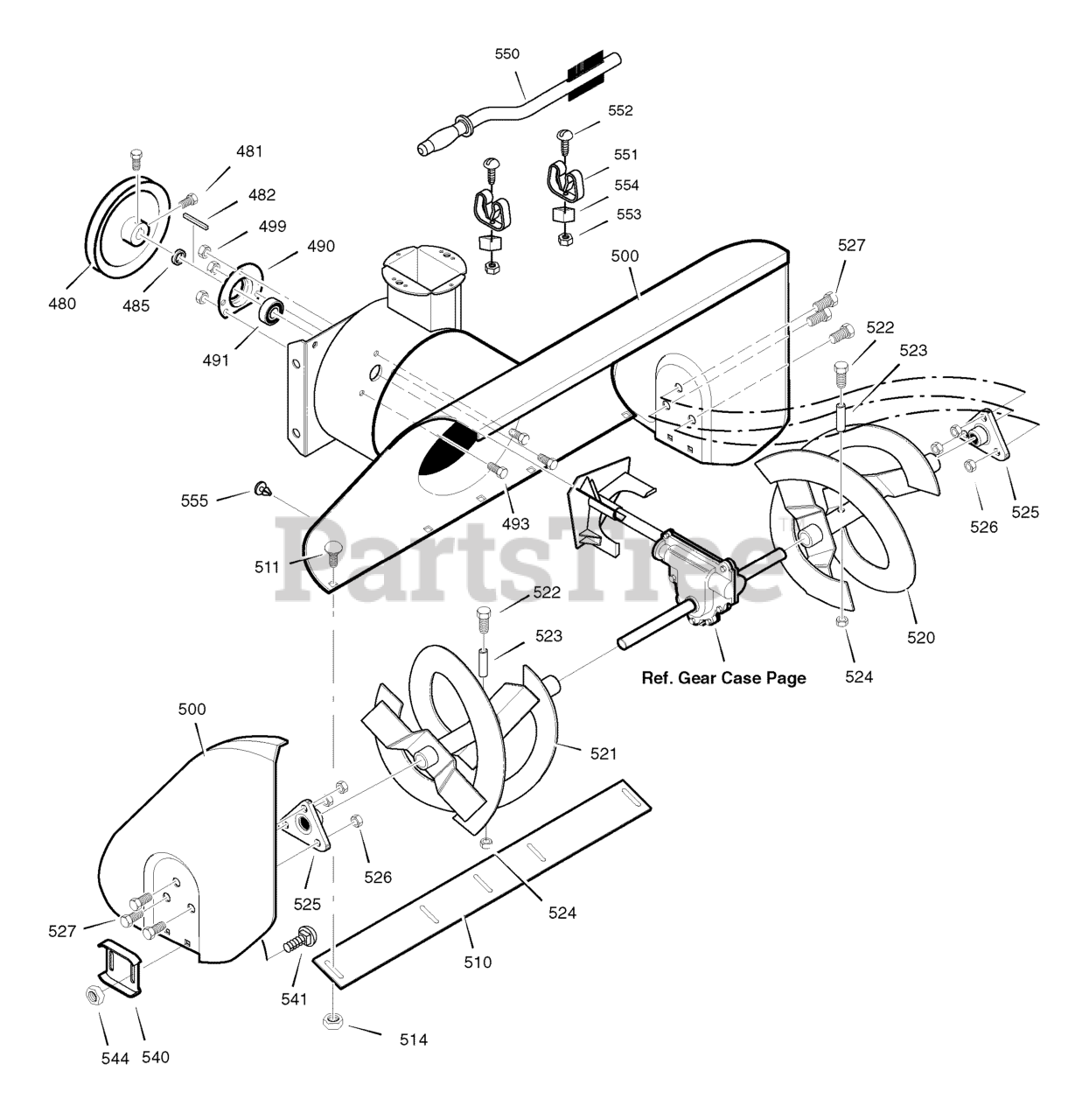

Auger Housing (1736718) Parts Diagram

  • Title

480

Murray 1501211MA

PULLEY, 8.40 V4L .67id

$71.99

$

In Stock, only 1 left!

0

481

Murray 577400MA

SCREW, 5/16-18 x 0.63

$4.99

$

Usually ships in 2-12 days

0

482

Murray 2001022MA

KEY, SQUARE 3/16 X 3/4

$4.49

$

In Stock, Qty 11

0

485

Murray 1501158MA

SPACER, FRICTION PULLEY

$4.99

$

In Stock, only 2 left!

0

490

Murray 582957YZMA

RETAINER, BALL BEARING
(Superseded to 1756809YP)

$10.99

$

In Stock, only 4 left!

0

491

Murray 1705897SM

BEARING, BALL

$8.49

$

In Stock, Qty 20+

0

493

Murray 001X45MA

BOLT, HEX 5/16-18 X 0.62
(Superseded to 703822)

$4.49

$

In Stock, only 2 left!

0

499

Murray 710026MA

NUT, 5/16-18 HEXWDFLLK
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

500

Murray 1736471ZYP

HOUSING, ASSEMBLY

$467.99

$

Usually ships in 2-12 days

0

510

Murray 1740745AYP

BLADE, SCRAPER
(Superseded to 1740745BMYP)

$

$

Not available

511

Murray 340720MA

BOLT, 5/16-18 X 34
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

514

Murray 710026MA

NUT, 5/16-18 X 0.62
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

520

Murray 1501445E701MA

AUGER ASSEMBLY, LH

$170.99

$

Usually ships in 2-12 days

0

521

Murray 1501444E701MA

AUGER ASSEMBLY, RH

$

$

Not available

522

Murray 9524MA

SCREW, 1/4-20 X 1.75
(Superseded to 703057)

$5.99

$

In Stock, Qty 20+

0

523

Murray 3943MA

SPACER, SLEEVE
(Superseded to 703058)

$7.49

$

In Stock, Qty 16

0

524

Murray 73826MA

NUT, 1/4-20
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

525

Murray 9517MA

BEARING, FLANGE

$5.99

$

In Stock, Qty 20+

0

526

Murray 711862MA

NUT, 5/16-18

$4.99

$

In Stock, Qty 5

0

527

Murray 9357MA

SCREW, 5/16-18 x 0.75
(Superseded to 703354)

$5.49

$

In Stock, Qty 20+

0

540

Murray 1740912AYP

SKID, HEIGHT ADJUST
(Superseded to 1740912BMYP)

$13.99

$

In Stock, Qty 20+

0

541

Murray 7090799SM

BOLT, 5/16-18 X 0.5
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

544

Murray 710026MA

NUT, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

550

Murray 1501576MA

BRUSH, CLEANOUT
(Superseded to 1736094YP)

$34.99

$

In Stock, only 2 left!

0

551

Murray 1501672MA

CLIP, RETAINER

$8.99

$

In Stock, only 3 left!

0

552

Murray 06X115MA

SCREW

$3.99

$

Usually ships in 2-12 days

0

553

Murray 15X146MA

NUT
(Superseded to 703412)

$4.49

$

In Stock, Qty 12

0

554

Murray 578063MA

BLOCK

$5.49

$

In Stock, Qty 10

0

555

Murray 760040MA

PLUG

$4.49

$

Usually ships in 2-12 days

0
