1695575 - Brute 27" Snow Thrower, 11.5 Gross TP (2008) Discharge Chute Parts Diagram

27" Snow Thrower, 11.5 Gross TP

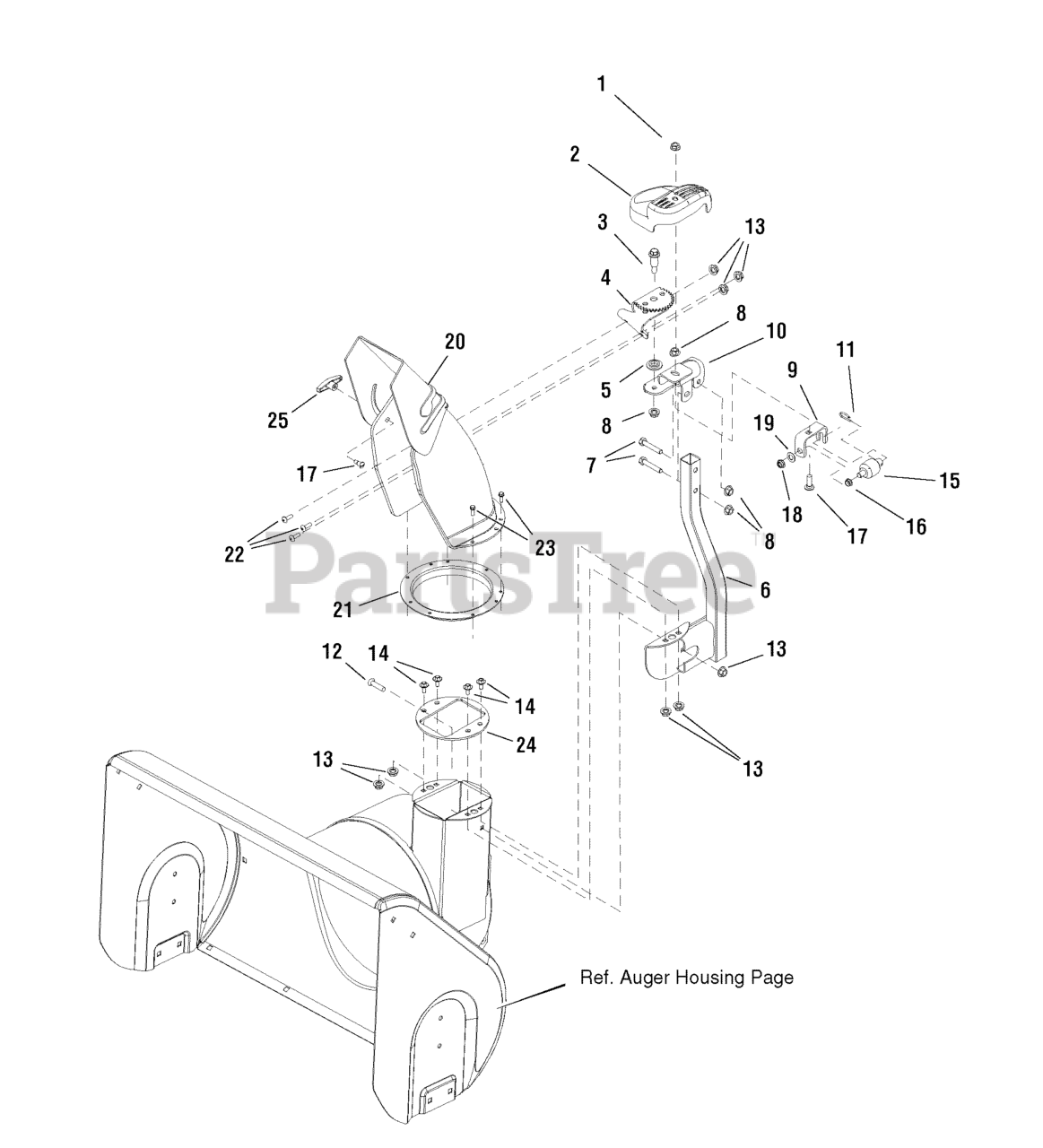

Discharge Chute Parts Diagram

  • Title

1

Murray 1935048SM

NUT, Hex Flange 5/16-18 Two Way Lock
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

2

Murray 1734442SM

COVER, Gears

$7.99

$

In Stock, only 2 left!

0

3

Murray 1732412SM

BOLT, Shoulder 5/16-18 G5

$15.99

$

Usually ships in 2-12 days

0

4

Murray 1736038YP

GEAR & SUPPORT ASSEMBLY, Chute
(Superseded to 704325)

$31.99

$

Usually ships in 2-12 days

0

5

Murray 1733026SM

WASHER, Powdered Metal

$4.49

$

Usually ships in 2-12 days

0

6

Murray 1736195AYP

CHUTE SUPPORT ASSEMBLY

$74.99

$

Usually ships in 2-12 days

0

7

Murray 1922127SM

SCREW, Hex Head Cap, 5/16-18 x 1 3/4
(Superseded to 704288)

$4.99

$

In Stock, only 2 left!

0

8

Murray 1960684SM

NUT, Hex KEPS 5/16-18 Conical Washer
(Superseded to 703222)

$5.99

$

In Stock, only 2 left!

0

9

Murray 1734440SM

SUPPORT, Worm "U" 10GA

$7.99

$

Usually ships in 2-12 days

0

10

Murray 1734423ASM

SUPPORT, Gear & Chute 10GA

$19.99

$

Usually ships in 2-12 days

0

11

Murray 1501293MA

PIN, Hair Chute Gear

$4.99

$

In Stock, only 2 left!

0

12

Murray 02X101MA

BOLT, CARRIAGE 0.25-20 x 0.75
(Superseded to 703440)

$3.99

$

In Stock, Qty 9

0

13

Murray 703463

NUT, Nylock Flanged, 1/4-20

$4.49

$

In Stock, Qty 5

0

14

Murray 691005

SCREW, HEX WASHER
(Superseded to 594618)

$3.99

$

In Stock, only 4 left!

0

15

Murray 1734439SM

WORM, Chute L.H.

$35.99

$

Usually ships in 2-12 days

0

16

Murray 1667588SM

BUSHING

$5.99

$

In Stock, Qty 15

0

17

Murray 2X100MA

BOLT, 5/16-18 X 1.00
(Superseded to 704217)

$

$

Not available

18

Murray 1960762SM

NUT, Hex Lock Jam ESNA Lite 3/8-24

$4.99

$

Usually ships in 2-12 days

0

19

Murray 1734542SM

WASHER, Cup

$5.49

$

Usually ships in 2-12 days

0

20

Murray 1736719YP

DISCHARGE CHUTE ASSEMBLY

$109.99

$

Usually ships in 2-12 days

0

21

Murray 1736444AYP

CHUTE RING
(Superseded to 1736444BMYP)

$27.99

$

Usually ships in 2-12 days

0

22

Murray 1960715SM

SCREW, Truss Head, 1/4-20 x 3/4
(Superseded to 770135)

$3.99

$

In Stock, Qty 14

0

23

Murray 1925003SM

CAPSCREW, Hex Head Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

24

Murray 1735767YP

GUIDE, CHUTE RING

$6.49

$

Usually ships in 2-12 days

0

25

Murray 1501260MA

KNOB, WING

$7.99

$

In Stock, only 3 left!

0
