1695642 A-00 - Simplicity Turbo, 46" & 52" Deck Turbo, Blower (988391) Parts Diagram

Turbo, 46" & 52" Deck

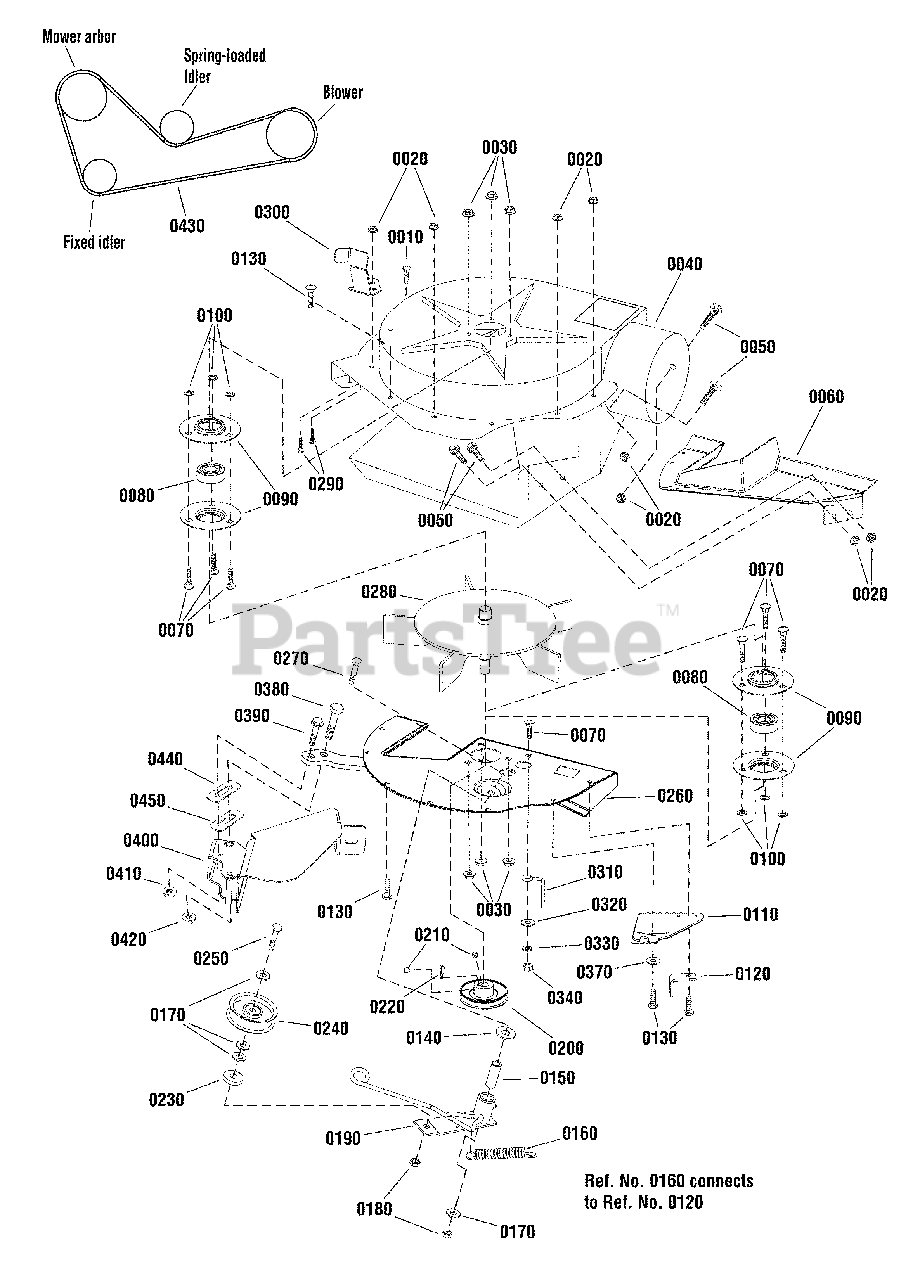

Turbo, Blower (988391) Parts Diagram

  • Title

0010

Simplicity 1925003

SCREW-HEX WSHR HD TAPTT 1/4-20X0.500 BLK
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

0020

Simplicity 1930641

NUT, Hex Flange, Whiz Lock Large, 1/4-20
(Superseded to 703161)

$3.49

$

In Stock, Qty 20+

0

0030

Simplicity 1927557

NUT, Hex Whiz Lock Flange, 5/16-18, Large, Black
(Superseded to 703330)

$4.99

$

In Stock, Qty 9

0

0040

Simplicity 1724441A

HOUSING FAN ASSEMBLY
(Superseded to 1724441SM)

$240.99

$

Usually ships in 2-12 days

0

0050

Snapper 1931317

BOLT, 1/4-20 x 2" Round Head Short Square Neck, GR5, Black

$3.99

$

In Stock, Qty 5

0

0060

Simplicity 1705267

PLATE-COVER,BLACK POLY FOR LTH MDVS
(Superseded to 1705267SM)

$32.99

$

In Stock, only 2 left!

0

0070

Simplicity 1931333

BOLT, Carriage, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

0080

BEARING-BALL 0.750ID 1.780OD 0.610LG

$

$

Not available

0090

Simplicity 1665982A

RETAINER, Bearing
(Superseded to 1665982SM)

$6.99

$

Usually ships in 2-12 days

0

0100

Simplicity 1933988

NUT, Push, 5/16
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

0110

Simplicity 1738000A

LATCH, Turbo
(Superseded to 1738000AYP)

$11.99

$

Usually ships in 2-12 days

0

0120

Simplicity 1668500

ANCHOR, Spring
(Superseded to 1668500SM)

$19.99

$

Usually ships in 2-12 days

0

0130

Simplicity 1924009

CAPSCREW, Hex Head, 1/4 - 20 x 7/8
(Superseded to 703819)

$4.49

$

In Stock, only 1 left!

0

0140

Simplicity 1924361

WASHER, Plain, 17/32 x 1-1/4 x 5/64
(Superseded to 703451)

$4.49

$

In Stock, only 1 left!

0

0150

Simplicity 1676833

SPACER, 3/8 ID x 5/8 OD x 1-3/4 Long
(Superseded to 1676833SM)

$27.99

$

Usually ships in 2-12 days

0

0160

Simplicity 1716853

SPRING, Tension
(Superseded to 1716853SM)

$12.99

$

In Stock, only 2 left!

0

0170

Simplicity 1924940

Flatwasher, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

0180

Simplicity 1960251

NUT, Hex Center Lock Jam, 3/8 - 16
(Superseded to 703230)

$4.99

$

In Stock, only 2 left!

0

0190

Simplicity 1706284A

LEVER ASSEMBLY, Turbo
(Superseded to 1706284AYP)

$80.99

$

In Stock, Qty 13

0

0200

Simplicity 1736092

PULLEY, 2-3/4" Diam., For 4L Belt
(Superseded to 1736092SM)

$43.99

$

Usually ships in 2-12 days

0

0210

Simplicity 1960619

SETSCREW, Hex, Socket Head, 5/16-18 x 5/16
(Superseded to 1960619SM)

$3.49

$

In Stock, only 2 left!

0

0220

Simplicity 2860403

KEY, Woodruff, Modified
(Superseded to 2860403SM)

$10.99

$

In Stock, only 1 left!

0

0230

Simplicity 1933263

WASHER, Flat, 7/16 x 1-1/4 OD
(Superseded to 703990)

$6.99

$

In Stock, only 2 left!

0

0240

Simplicity 2154534

IDLER PULLEY ASSEMBLY, 2-3/4 OD
(Superseded to 2154534SM)

$32.99

$

In Stock, only 2 left!

0

0250

Simplicity 720192

CAPSCREW, Hex Head, 3/8-16X1-1/2
(Superseded to 01X111MA)

$4.49

$

In Stock, only 1 left!

0

0260

Simplicity 1738101A

PLATE ASSEMBLY
(Superseded to 1738101AYP)

$222.99

$

Usually ships in 2-12 days

0

0270

Simplicity 1931355

BOLT, Carriage, 3/8-16 x 2-1/4
(Superseded to 1931355SM)

$5.99

$

In Stock, Qty 6

0

0280

Simplicity 1706631A

FAN ASSEMBLY, Five Paddle
(Superseded to 1706631ASM)

$384.99

$

In Stock, only 1 left!

0

0290

Simplicity 1960728

CAPSCREW, Washer Head, Plastite, 1/4-18 x 5/8
(Superseded to 1960728SM)

$3.99

$

In Stock, only 4 left!

0

0300

Simplicity 1738166A

BRACKET, Deflector, Prop, Turbo
(Superseded to 1738166AYP)

$17.99

$

Usually ships in 2-12 days

0

0310

Simplicity 1678435

BELT STOP, (Height Indicator)
(Superseded to 1678435SM)

$4.49

$

Usually ships in 2-12 days

0

0320

Simplicity 1924874

WASHER, 5/16 Flat (.341 I.D. x .87 O.D. X .06 Thick) Black
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

0330

Simplicity 1917356

Lockwasher, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0340

Simplicity 1917372

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

0370

Simplicity 1919381

WASHER-0.312(0.34IDX1.00ODX.13THK)BLK
(Superseded to 1919381SM)

$4.49

$

In Stock, Qty 13

0

0380

Simplicity 23316

CAPSCREW, Hex Head, 1/2 -13 x 4
(Superseded to 23316YP)

$5.99

$

Usually ships in 2-12 days

0

0390

Simplicity 2860709

CAPSCREW, Hex Flange, Whiz Lock, 3/8-16 x 1-3/4
(Superseded to 703812)

$4.49

$

Usually ships in 2-12 days

0

0400

Simplicity 1737994A

CHUTE ASSEMBLY, Turbo
(Superseded to 1737994AYP)

$265.99

$

Usually ships in 2-12 days

0

0410

Simplicity 7091619

NUT, 3/8-16 Hex Flange lock, YZ
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

0420

Simplicity 1960379

NUT, Hex Lock, ESNA Light, 1/2-13
(Superseded to 1960379SM)

$4.99

$

In Stock, only 2 left!

0

0430

Simplicity 1736554

V-BELT, Cog, 39.62
(Superseded to 1736554YP)

$40.99

$

In Stock, only 2 left!

0

0440

Simplicity 1751304A

SHIM. Thick
(Superseded to 1751304AYP)

$17.99

$

Usually ships in 2-12 days

0

0450

Simplicity 1751305A

SHIM, Thin
(Superseded to 1751305AYP)

$16.99

$

Usually ships in 2-12 days

0
