1695693 - Murray Ultra 29" Snow Thrower, 14.5hp (2009) Auger Housing Assembly Parts Diagram

Ultra 29" Snow Thrower, 14.5hp

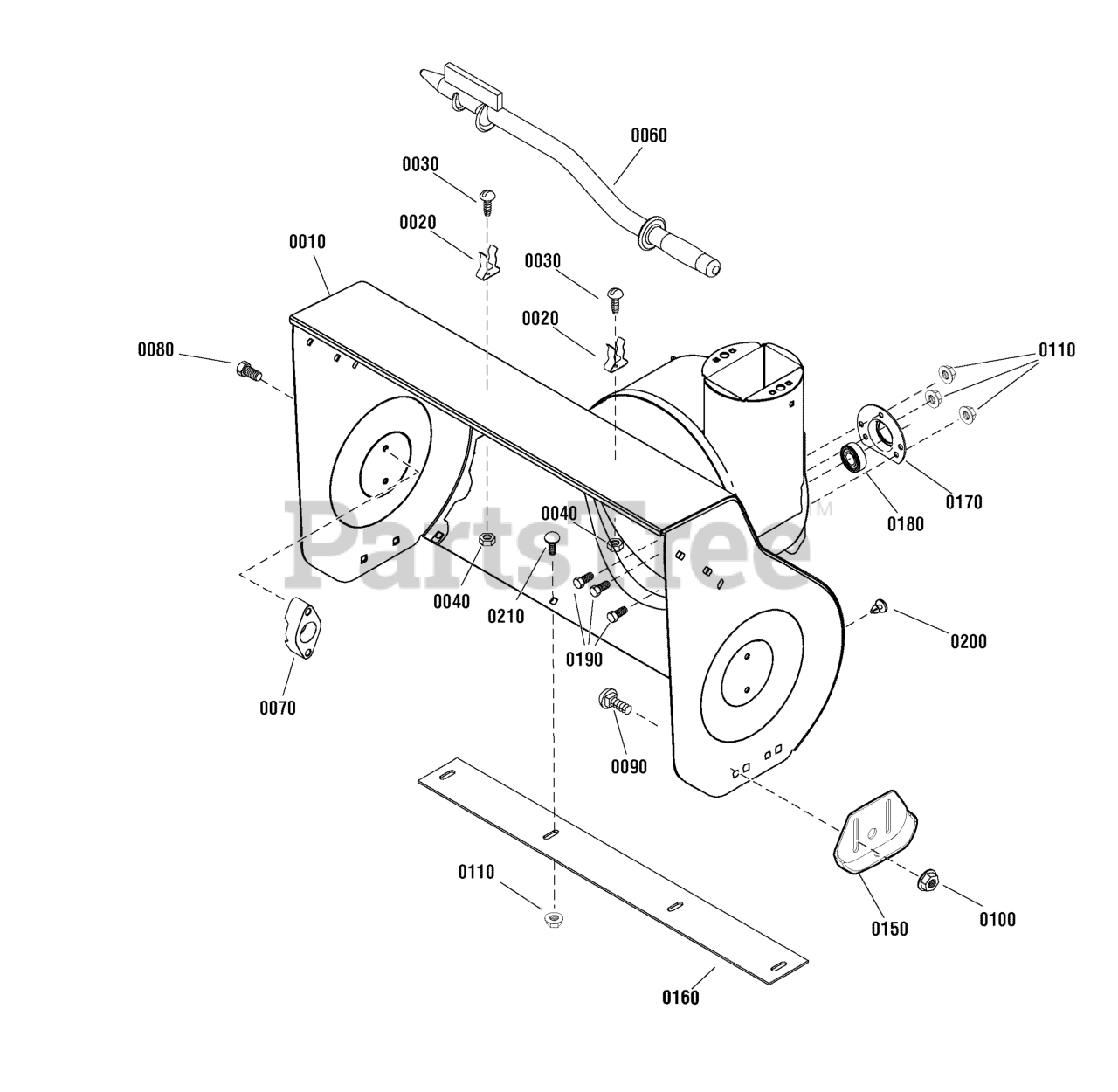

Auger Housing Assembly Parts Diagram

  • Title

0010

Murray 1737925BIYP

HOUSING, ASSEMBLY
(Superseded to 1687546YP)

$535.99

$

Usually ships in 2-12 days

0

0020

Murray 1736620YP

CLAMP, SPRING

$6.49

$

In Stock, only 1 left!

0

0030

Murray 1960569SM

SCREW, Truss Head Torx, #10-24 x 3/8
(Superseded to 706144)

$4.49

$

Usually ships in 2-12 days

0

0040

Murray 15X146MA

NUT, Nylock, 10 x 24
(Superseded to 703412)

$4.49

$

In Stock, Qty 12

0

0060

Murray 1736094YP

BRUSH, CLEANOUT

$34.99

$

In Stock, only 2 left!

0

0070

Murray 53757MA

BEARING, FLANGE

$9.99

$

In Stock, only 2 left!

0

0080

Murray 25X021MA

SCREW, TAP 5/16-18 X 0.75
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0090

Murray 7091547YP

BOLT, Carriage, 3/8-16 x 3/4, G5
(Superseded to 703448)

$4.49

$

In Stock, Qty 20+

0

0100

Murray 7091619SM

NUT, Hex Flange, 3/8-16
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

0110

Murray 710026MA

NUT, 5/16-18 Hex-Flange, SERLK
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0150

Murray 1737986AYP

SKID, Height Adjust
(Superseded to 1740912BMYP)

$13.99

$

In Stock, Qty 20+

0

0160

Murray 1740746AYP

BLADE, SCRAPER

$46.99

$

In Stock, only 1 left!

0

0170

Murray 582957YZMA

RETAINER, Ball Bearing
(Superseded to 1756809YP)

$10.99

$

In Stock, only 4 left!

0

0180

Murray 1705897SM

BEARING, Ball, 11/16 x 1-9/16 x 15/32

$8.49

$

In Stock, Qty 20+

0

0190

Murray 001X45MA

BOLT, Hex, 5/16-18 x 5/8
(Superseded to 703822)

$4.49

$

In Stock, only 2 left!

0

0200

Murray 760040MA

PLUG, PANEL

$4.49

$

Usually ships in 2-12 days

0

0210

Murray 7090799SM

BOLT, Carriage, 5/16-18 x 5/8
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0
