1695698 (CM 741350 H) - Canadiana 29" Snow Thrower, Canada (2009) Wheels & Tires Group Parts Diagram

29" Snow Thrower, Canada

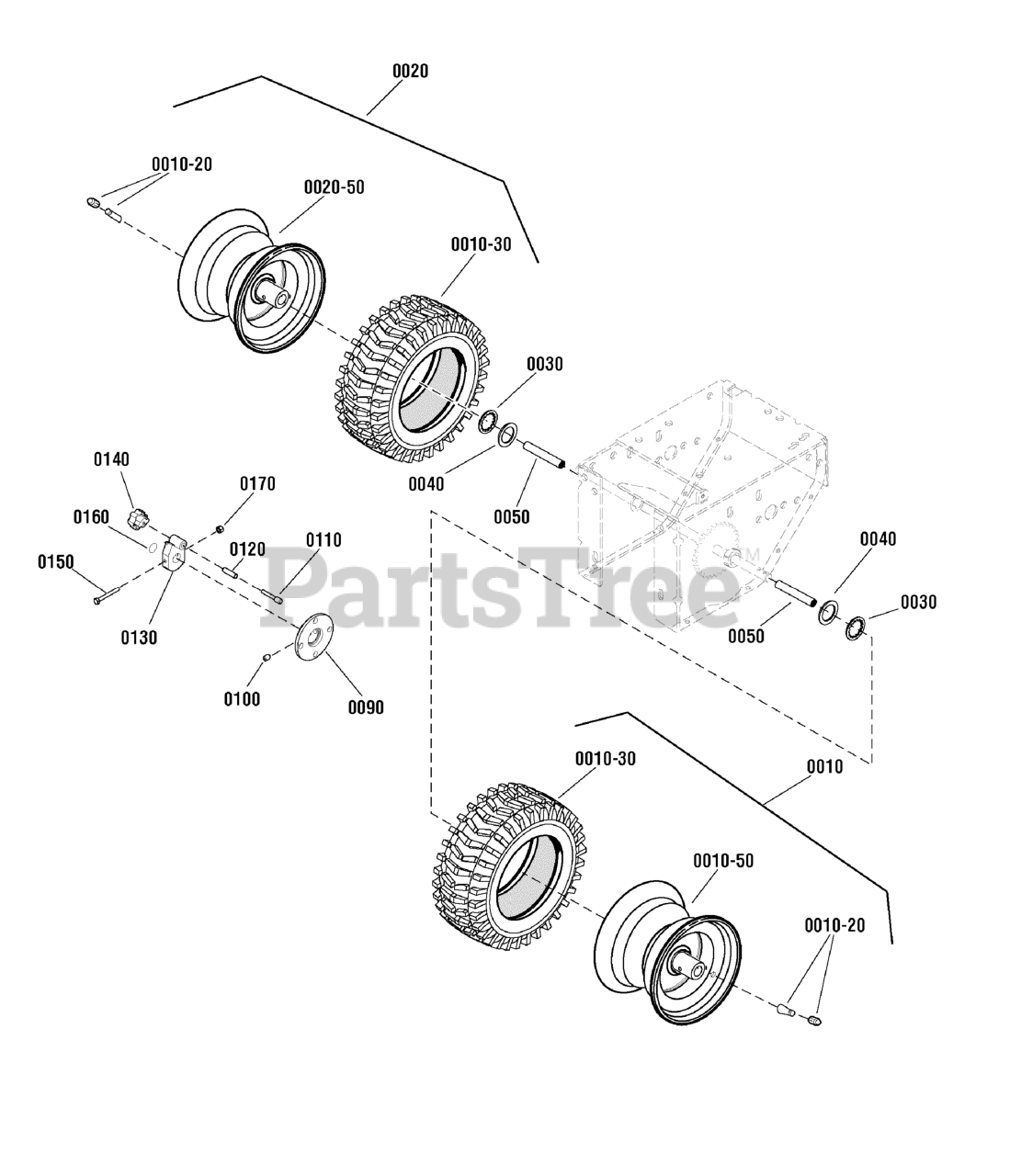

Wheels & Tires Group Parts Diagram

  • Title

0010

Murray 1501839MA

WHEEL ASSEMBLY, Xtrac TL, 16 x 4.8 - 8, L.H.
(Superseded to 770611)

Note: (Includes Ref. No. 0010-20, 0010-30 & 0010-50)

$177.99

$

Usually ships in 2-12 days

0

0010-20

Murray 2172353SM

VALVE STEM & CAP
(Superseded to 024373MA)

$8.49

$

Usually ships in 2-12 days

0

0010-30

Murray 1735666SM

TIRE, X-Trac TL, 4.80 - 8

$113.99

$

Usually ships in 2-12 days

0

0010-50

*RIM, L.H.

$

$

Not available

0020

Murray 1501838MA

WHEEL ASSEMBLY, Xtrac TL, 16 x 4.8 - 8, R.H.
(Superseded to 770612)

Note: (Includes Ref. No. 0010-20, 0010-30 & 0020-50)

$203.99

$

Usually ships in 2-12 days

0

0020-50

*RIM, R.H.

$

$

Not available

0030

Murray 1657528SM

RING, Retaining, Self Lock, 3/4

$4.49

$

In Stock, Qty 20+

0

0040

Murray 712120MA

WASHER, Flat, 3/4

$5.49

$

In Stock, Qty 16

0

0050

Murray 1501138MA

BUSHING, Wheel

$

$

Not available

0090

Murray 1501032EMA

DISC, Wheel Lock

$34.99

$

Usually ships in 2-12 days

0

0100

Murray 2001066MA

SCREW, .38-16x0.50 HEX.18

$5.99

$

In Stock, Qty 13

0

0110

Murray 1501856YZMA

PIN, Wheel Lock

$16.99

$

In Stock, only 2 left!

0

0120

Murray 164X34MA

SPRING, Compression

$6.49

$

In Stock, only 2 left!

0

0130

Murray 1920397SM

NUT, Hex Lock, ESNA LIGHT 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0140

Murray 1501855MA

KNOB, Wheel Lock

$14.99

$

In Stock, only 2 left!

0

0150

Murray 73839MA

SCREW, .25-20 X 2.25 HHC GR8

$5.99

$

In Stock, Qty 20+

0

0160

Murray 48X5600MA

DECAL, Wheel Lock Pictorial

$15.99

$

Usually ships in 2-12 days

0

0170

Murray 1501857MA

HUB, Wheel Lock

$34.99

$

In Stock, only 2 left!

0
