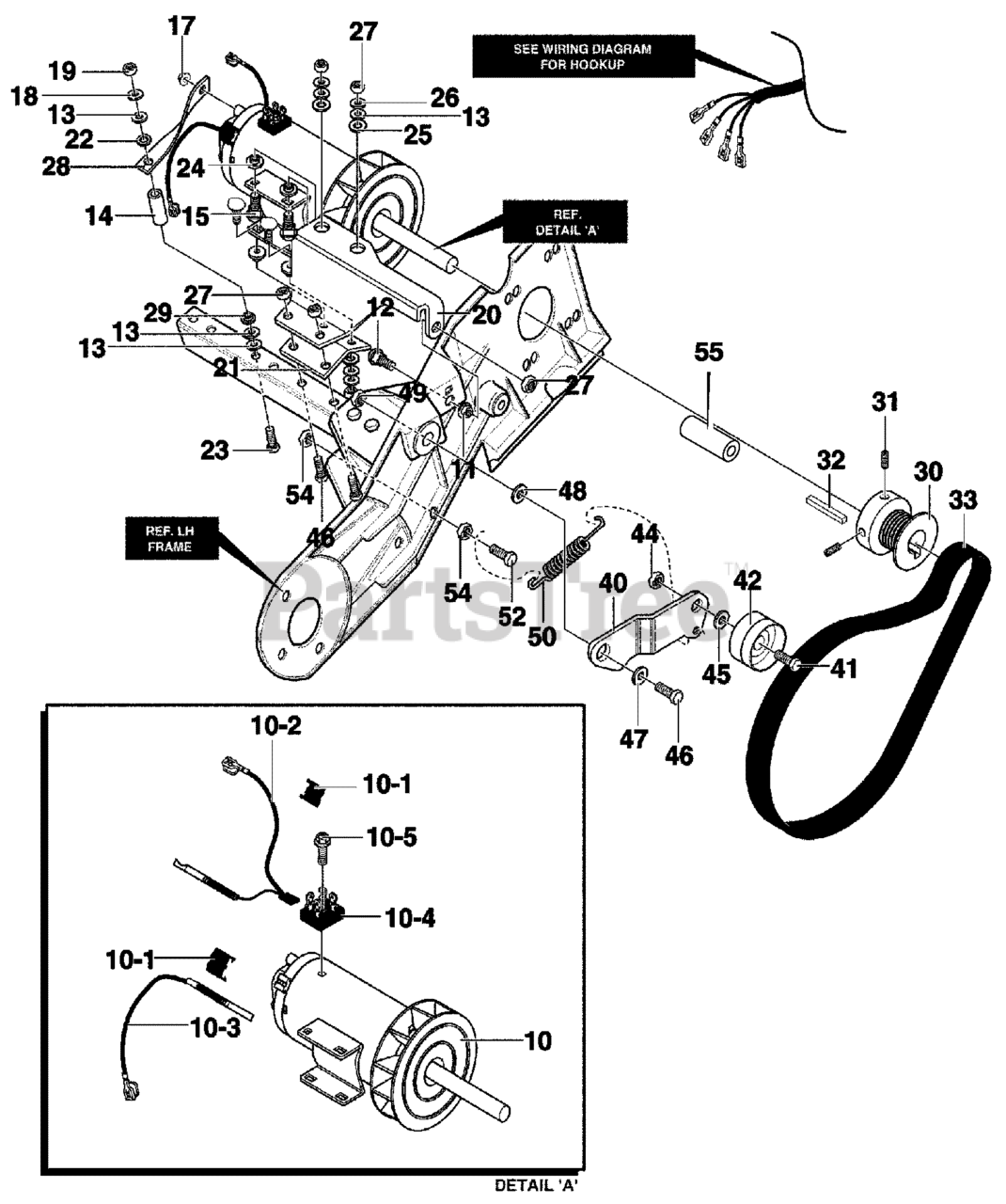

1695716 - Dynamark 21" Snow Thrower (2009) Motor Assembly Parts Diagram

21" Snow Thrower

Motor Assembly Parts Diagram

  • Title

10

Murray 760912MA

MOTOR, ELECTRIC

$

$

Not available

10-1

Murray 761142MA

BRUSH CAP

$

$

Currently unavailable

10-2

Murray 761143MA

BRUSH CUT-OUT ASSEMBLY

$

$

Not available

10-3

Murray 761144MA

BRUSH ASSEMBLY

$

$

Currently unavailable

10-4

Murray 761146MA

RECTIFIER

$

$

Currently unavailable

10-5

Murray 761145MA

SCREW, 10-24

$

$

Currently unavailable

11

Murray 710288MA

NUT RETAINER

$3.49

$

Usually ships in 2-12 days

0

12

Murray 340720MA

BOLT, 5/16-18 x .75
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

13

Murray 6711MA

PLASTIC WASHER

$3.99

$

Usually ships in 2-12 days

0

14

Murray 761203MA

TUBE, INSULATOR

$4.99

$

Usually ships in 2-12 days

0

15

Murray 3316MA

BOLT, 5/16-18 x 1.00

$3.49

$

Usually ships in 2-12 days

0

17

Murray 312300MA

NUT, #10-24
(Superseded to 015X81MA)

$4.99

$

Usually ships in 2-12 days

0

18

Murray 71067MA

FLATWASHER

$4.49

$

In Stock, only 1 left!

0

19

Murray 73826MA

NUT, 1/4-20
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

20

Murray 760932E701MA

BRACKET, UPPER MOTOR MOUNT

$63.99

$

Usually ships in 2-12 days

0

21

Murray 760931E701MA

BRACKET, LOWER MOTOR MOUNT

$19.99

$

Usually ships in 2-12 days

0

22

Murray 583372MA

FLATWASHER, NYLON

$3.49

$

Usually ships in 2-12 days

0

23

Murray 710263MA

SCREW, 1/4-20 x 1.00

$3.99

$

Usually ships in 2-12 days

0

24

Murray 760934MA

INSULATOR, MOTOR

$23.99

$

Usually ships in 2-12 days

0

25

Murray 760933MA

INSULATOR WASHER

$3.49

$

Usually ships in 2-12 days

0

26

Murray 71071MA

FLATWASHER
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

27

Murray 71038MA

NUT, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 14

0

28

Murray 760984E701MA

BRACE, MOTOR

$16.99

$

Usually ships in 2-12 days

0

29

Murray 583371MA

SHOULDER WASHER, NYLON

$3.49

$

Usually ships in 2-12 days

0

30

Murray 760981MA

PULLEY, MOTOR

$73.99

$

Usually ships in 2-12 days

0

31

Murray 102570MA

SCREW, 1/4-20 x .38

$4.99

$

Usually ships in 2-12 days

0

32

Murray 71095MA

SQUARE KEY

$4.49

$

Usually ships in 2-12 days

0

33

Murray 37X135MA

BELT

$23.99

$

Usually ships in 2-12 days

0

40

Murray 583395MA

IDLER BRACKET

$42.99

$

Usually ships in 2-12 days

0

41

Murray 710082MA

SCREW, 3/8-16 x 1.50

$3.99

$

Usually ships in 2-12 days

0

42

Murray 583391MA

IDLER PULLEY

$

$

Not available

44

Murray 590MA

NUT, 3/8-16
(Superseded to 703996)

$4.99

$

In Stock, only 4 left!

0

45

Murray 71072MA

WASHER, Flat, 13/32

$4.49

$

Usually ships in 2-12 days

0

46

Murray 313676MA

SCREW, 5/16-18 x 0.75
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

47

Murray 71071MA

FLATWASHER
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

48

Murray 53794MA

SPACER, SLEEVE

$5.49

$

Usually ships in 2-12 days

0

49

Murray 71391MA

NUT, 5/16-18

$4.49

$

In Stock, only 1 left!

0

50

Murray 760988MA

IDLER SPRING -AUGER DRIVE

$29.99

$

Usually ships in 2-12 days

0

52

Murray 308231MA

SCREW, 1/4-20 x 1.25

$3.49

$

Usually ships in 2-12 days

0

54

Murray 71034MA

NUT. 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0

55

Murray 1501906MA

INSULATOR, TUBE

$

$

Currently unavailable

--

Murray 1737803

MANUAL, OWNER'S

$

$

Currently unavailable

--

Murray 1739925

ILLUSTRATED PARTS LIST

$

$

Currently unavailable
