1695725 - Brute 29" Snow Thrower, 13.5 Gross TP (2009) Wheels and Tires Group Parts Diagram

29" Snow Thrower, 13.5 Gross TP

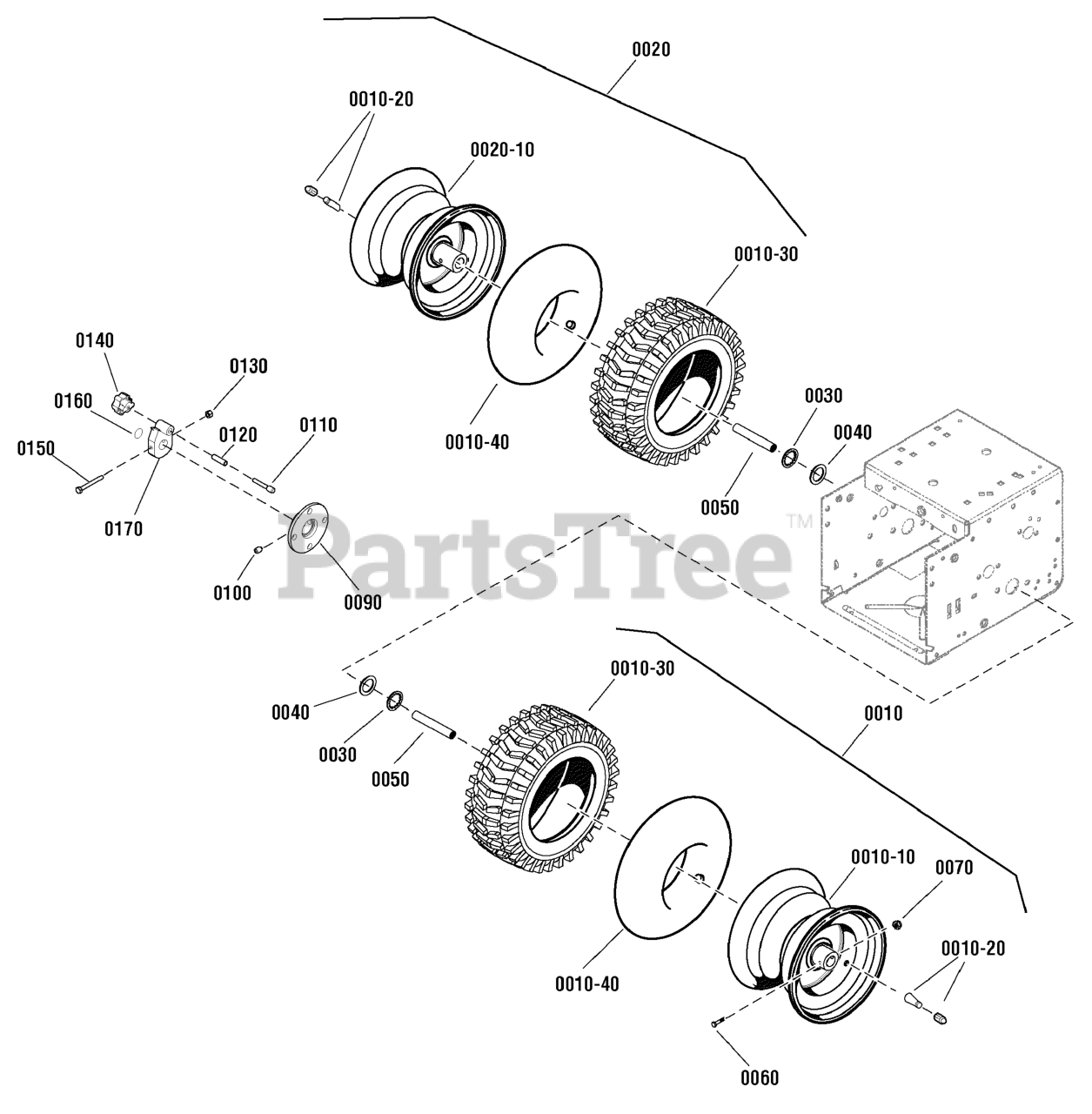

Wheels and Tires Group Parts Diagram

  • Title

0010

Murray 1736622YP

WHEEL & TIRE ASSEMBLY, L.H. SNOW XTRAC 16 x 4.8-8

$193.99

$

Usually ships in 2-12 days

0

0010-10

*RIM, 16 X 6.5-8, L.H.

$

$

Not available

0010-20

Murray 2172353SM

VALVE STEM & CAP
(Superseded to 024373MA)

$8.49

$

Usually ships in 2-12 days

0

0010-30

Murray 1727075SM

TIRE, 16 x 6-1/2 - 8, X-Track TL
(Superseded to 1751301YP)

$107.99

$

Usually ships in 2-12 days

0

0010-40

Murray 2164247SM

TUBE, Tire, Rear

$43.99

$

In Stock, only 2 left!

0

0020

Murray 1736621YP

WHEEL & TIRE ASSEMBLY, R.H. SNOW XTRAC 16 x 4.8-8

$184.99

$

Usually ships in 2-12 days

0

0020-10

*RIM, 16 X 6.5-8, R.H.

$

$

Not available

0010-20

Murray 2172353SM

VALVE STEM & CAP
(Superseded to 024373MA)

$8.49

$

Usually ships in 2-12 days

0

0010-30

Murray 1727075SM

TIRE, 16 x 6-1/2 - 8, X-Track TL
(Superseded to 1751301YP)

$107.99

$

Usually ships in 2-12 days

0

0010-40

Murray 2164247SM

TUBE, Tire, Rear

$43.99

$

In Stock, only 2 left!

0

0030

Murray 1657528SM

RING, Retaining, Self Lock, #75, 3/4

$4.49

$

In Stock, Qty 20+

0

0040

Murray 712120MA

WASHER, Flat, 3/4

$5.49

$

In Stock, Qty 16

0

0050

Murray 1501138MA

BUSHING, Wheel

$

$

Not available

0060

Murray 577015MA

BOLT, Hex, 1/4-20 x 1-3/4, G5

$5.49

$

In Stock, Qty 8

0

0070

Murray 15X145MA

NUT, Hex Nylock, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0090

Murray 1501032EMA

DISC, Wheel Lock E-Coated

$34.99

$

Usually ships in 2-12 days

0

0100

Murray 2001066MA

CAPSCREW, Hex, 3/8-16 x 1/2

$5.99

$

In Stock, Qty 13

0

0110

Murray 1501856YZMA

PIN, Wheel Lock 3/8 Dia. x 1/4-20 x 11/16

$16.99

$

In Stock, only 2 left!

0

0120

Murray 164X34MA

SPRING, Compression

$6.49

$

In Stock, only 2 left!

0

0130

Murray 1920397SM

NUT, Hex Lock, ESNA Light, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0150

Murray 73839MA

CAPSCREW, 1/4-20 x 2-1/4 Hex Head GR

$5.99

$

In Stock, Qty 19

0

0140

Murray 1501855MA

KNOB, Wheel Lock

$14.99

$

In Stock, only 2 left!

0

0160

Murray 48X5600MA

DECAL, Wheel Lock Pictorial

$15.99

$

Usually ships in 2-12 days

0

0170

Murray 1501857MA

HUB, Wheel Lock Centered

$34.99

$

In Stock, only 2 left!

0
