1695731 - Dynamark 24" Snow Thrower (2009) Auger Housing (1738680) Parts Diagram

24" Snow Thrower

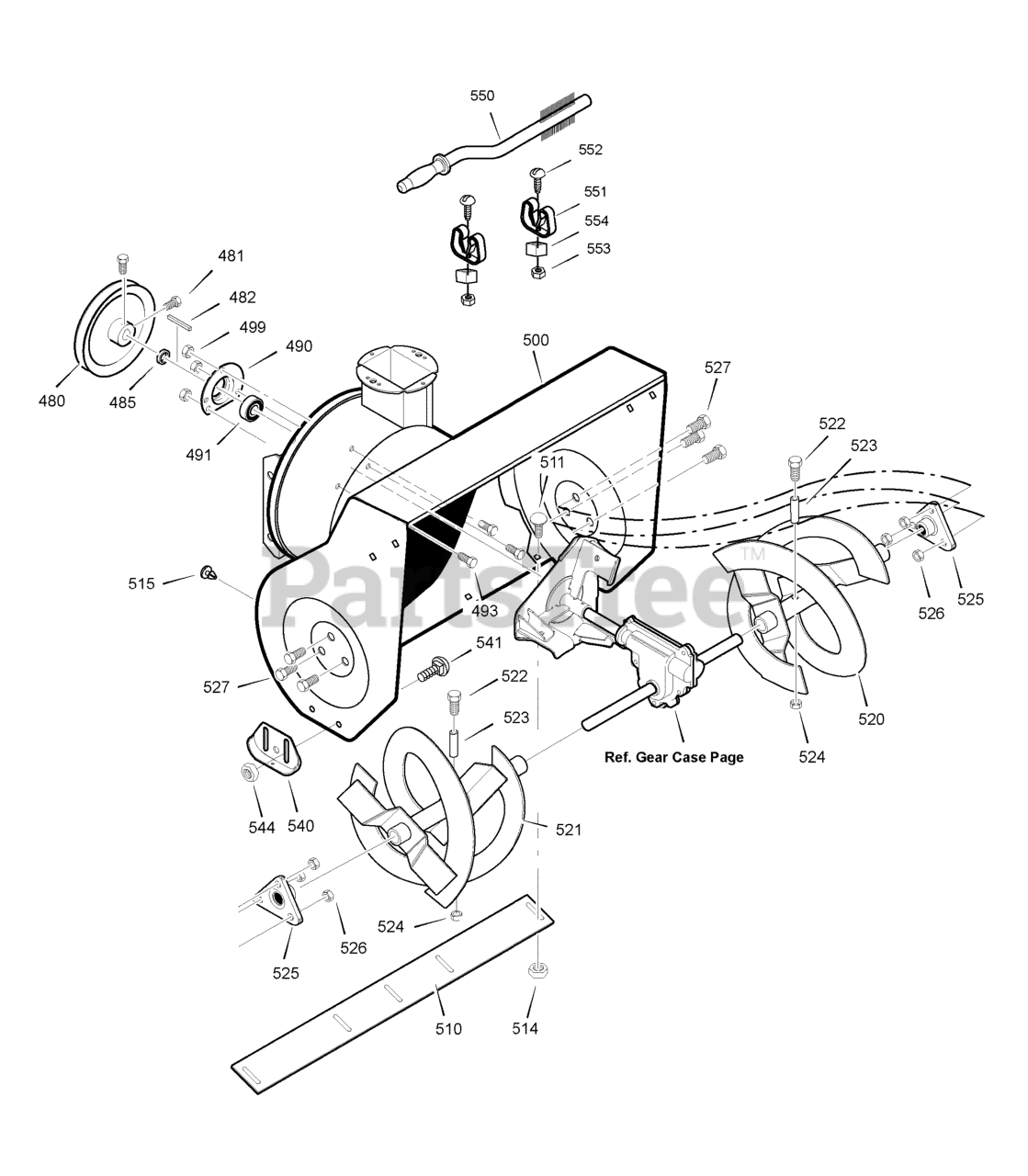

Auger Housing (1738680) Parts Diagram

  • Title

480

Murray 1501211MA

PULLEY, 4L 6.12X .67

$71.99

$

In Stock, only 1 left!

0

481

Murray 577400MA

SCREW, 5/16-18 x 5/8

$4.99

$

Usually ships in 2-12 days

0

482

Murray 2001022MA

KEY, Square, 3/16 x 3/4

$4.49

$

In Stock, Qty 11

0

485

Murray 1501158MA

SPACER, Friction Pulley

$4.99

$

In Stock, only 2 left!

0

490

Murray 582957YZMA

RETAINER, Ball Bearing
(Superseded to 1756809YP)

$10.99

$

In Stock, only 4 left!

0

491

Murray 1705897SM

BEARING, Ball

$8.49

$

In Stock, Qty 20+

0

493

Murray 001X45MA

BOLT, HEX 5/16-18 x 1/2
(Superseded to 703822)

$4.49

$

In Stock, only 2 left!

0

499

Murray 710026MA

NUT, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

500

Murray 1501854E245MA

HOUSING

$319.99

$

Usually ships in 2-12 days

0

510

Murray 760657E701MA

BLADE, Scraper
(Superseded to 1738301AYP)

$

$

Not available

511

Murray 340720MA

BOLT, 5/16-18 x 3/4
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

514

Murray 710026MA

NUT, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

515

Murray 309235MA

PLUG

$3.99

$

Usually ships in 2-12 days

0

520

Murray 1501440E701MA

AUGER ASSEMBLY, Left

$99.99

$

Usually ships in 2-12 days

0

521

Murray 1501441E701MA

AUGER ASSEMBLY, Right

$259.99

$

Usually ships in 2-12 days

0

522

Murray 9524MA

SCREW, 1/4-20 x 1-3/4
(Superseded to 703057)

$5.99

$

In Stock, Qty 20+

0

523

Murray 3943MA

SPACER, Sleeve
(Superseded to 703058)

$7.49

$

In Stock, Qty 16

0

524

Murray 73826MA

NUT, 1/4-20
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

525

Murray 9517MA

BEARING, Flange

$5.99

$

In Stock, Qty 20+

0

526

Murray 711862MA

NUT, 5/16-18

$4.99

$

In Stock, Qty 5

0

527

Murray 9357MA

SCREW, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 20+

0

540

Murray 1740912AYP

SKID, Height Adjust
(Superseded to 1740912BMYP)

$13.99

$

In Stock, Qty 20+

0

541

Murray 7090799SM

BOLT, 5/16-18 x 3/4
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

544

Murray 710026MA

NUT, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

550

Murray 1736094YP

BRUSH, Cleanout

$34.99

$

In Stock, only 2 left!

0

551

Murray 1501672MA

CLIP, Retainer

$8.99

$

In Stock, only 3 left!

0

552

Murray 06X115MA

SCREW

$3.99

$

Usually ships in 2-12 days

0

553

Murray 15X146MA

NUT
(Superseded to 703412)

$4.49

$

In Stock, Qty 12

0

554

Murray 578063MA

BLOCK

$5.49

$

In Stock, Qty 10

0

--

Murray 1501216MA

KIT, Shear Bolt

$4.99

$

In Stock, Qty 20+

0
