1695731 - Dynamark 24" Snow Thrower (2009) Engine (1742229) Parts Diagram

24" Snow Thrower

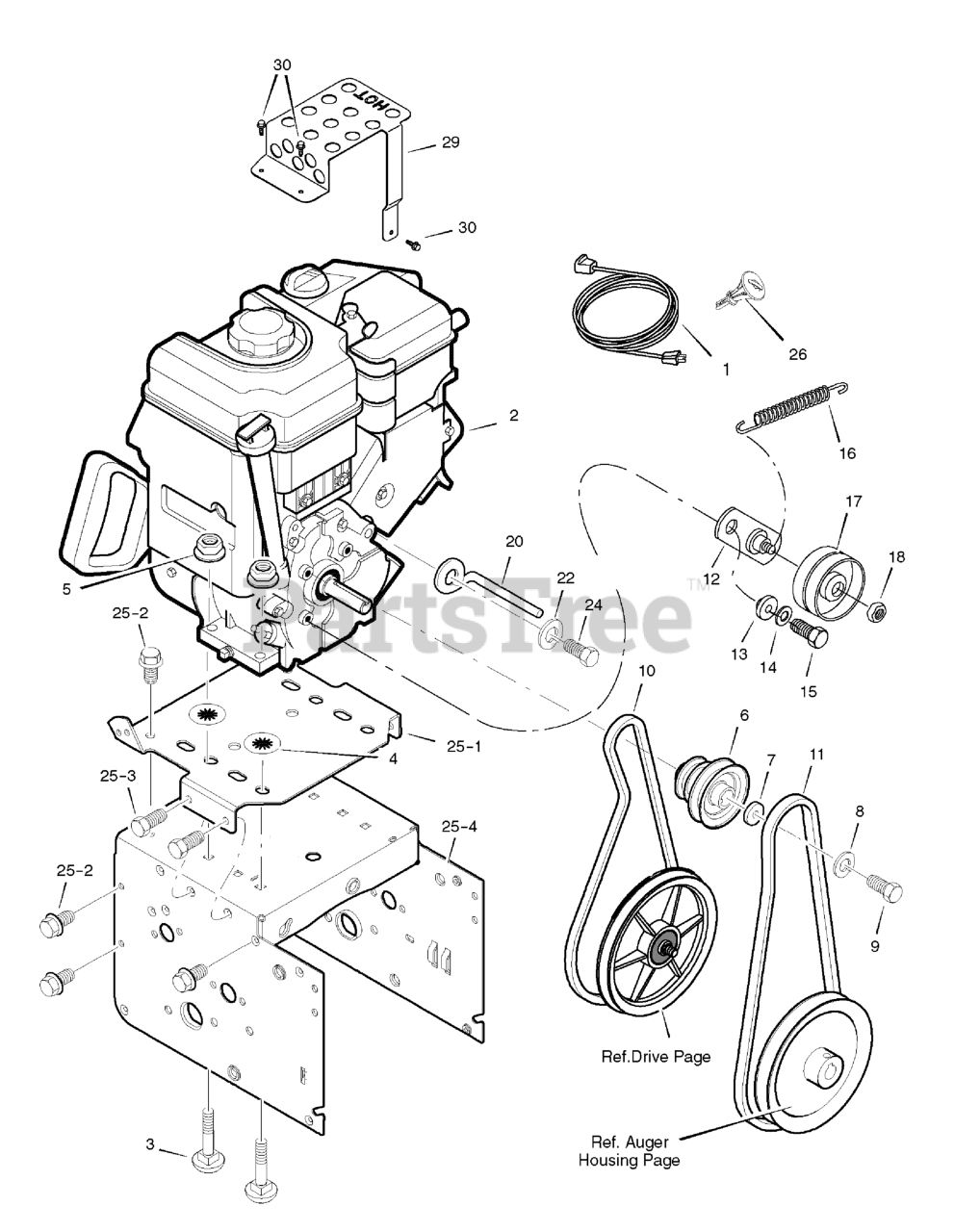

Engine (1742229) Parts Diagram

  • Title

1

Murray 6219MA

CORD, Electric, 10FT. 110V

$40.99

$

In Stock, only 3 left!

0

2

Murray 12A113-0138-E8

ENGINE

Note: (Model# 12A113-0138-E8)

$

$

Currently unavailable

3

Murray 002X97MA

BOLT, Carriage, 5/16-18
(Superseded to 704210)

$4.99

$

In Stock, only 2 left!

0

4

Murray 028X76MA

RETAINER, Push

$4.49

$

In Stock, only 1 left!

0

5

Murray 1960686SM

NUT, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 17

0

6

Murray 1736102YP

PULLEY, Engine

$43.99

$

Usually ships in 2-12 days

0

7

Murray 17X146MA

WASHER

$5.49

$

Usually ships in 2-12 days

0

8

Murray 71060MA

WASHER, 3/8
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

9

Murray 910828MA

SCREW, 3/8-24 x 1
(Superseded to 703301)

$3.99

$

In Stock, Qty 6

0

10

Murray 1733324SM

BELT, V 3L

$19.99

$

In Stock, Qty 20+

0

11

Murray 585416MA

BELT, V 4L

$22.99

$

In Stock, Qty 12

0

12

Murray 1501112YZMA

BRACKET ASSEMBLY, Idler
(Superseded to 1687797YP)

$8.49

$

In Stock, only 2 left!

0

13

Murray 1501065MA

BUSHING, Idler Bracket

$5.49

$

In Stock, Qty 6

0

14

Murray 71060MA

WASHER, SPLIT
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

15

Murray 710097MA

SCREW, 5/16-24 x 3/4

$4.49

$

Usually ships in 2-12 days

0

16

Murray 53704MA

SPRING, Idler Traction Drive

$8.49

$

In Stock, only 4 left!

0

17

Murray 1502120MA

PULLEY, Idler

$21.99

$

In Stock, only 1 left!

0

18

Murray 590MA

NUT, Jam, 3/8-16
(Superseded to 703996)

$4.99

$

In Stock, only 4 left!

0

20

Murray 1501201MA

GUIDE, Belt
(Superseded to 1739070YP)

$7.99

$

In Stock, Qty 6

0

22

Murray 71060MA

WASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

24

Murray 710097MA

SCREW, 5/16-24 x 3/4

$4.49

$

Usually ships in 2-12 days

0

25

FRAME, Motorbox (5-11HP)

$

$

Not available

25-1

Murray 1735753BNYP

PLATE, Engine Mount
(Superseded to 1735753BIYP)

$69.99

$

Usually ships in 2-12 days

0

25-2

Murray 310169MA

SCREW, Tap, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, only 1 left!

0

25-3

Murray 25X020MA

SCREW, Tap, 5/16-18 x 1/2

$4.99

$

In Stock, Qty 6

0

25-4

Murray 1740572BNYP

FRAME, Motor Box

$112.99

$

Usually ships in 2-12 days

0

26

Murray 794696

KEY, Briggs Engine

$7.49

$

In Stock, Qty 7

0

29

Murray 1734732SM

HEAT SHIELD, Muffler

$20.99

$

Usually ships in 2-12 days

0

30

Murray 1736103SM

SCREW, Hex-Washer

$4.49

$

Usually ships in 2-12 days

0
