1695731 - Dynamark 24" Snow Thrower (2009) Frame (1738678) Parts Diagram

24" Snow Thrower

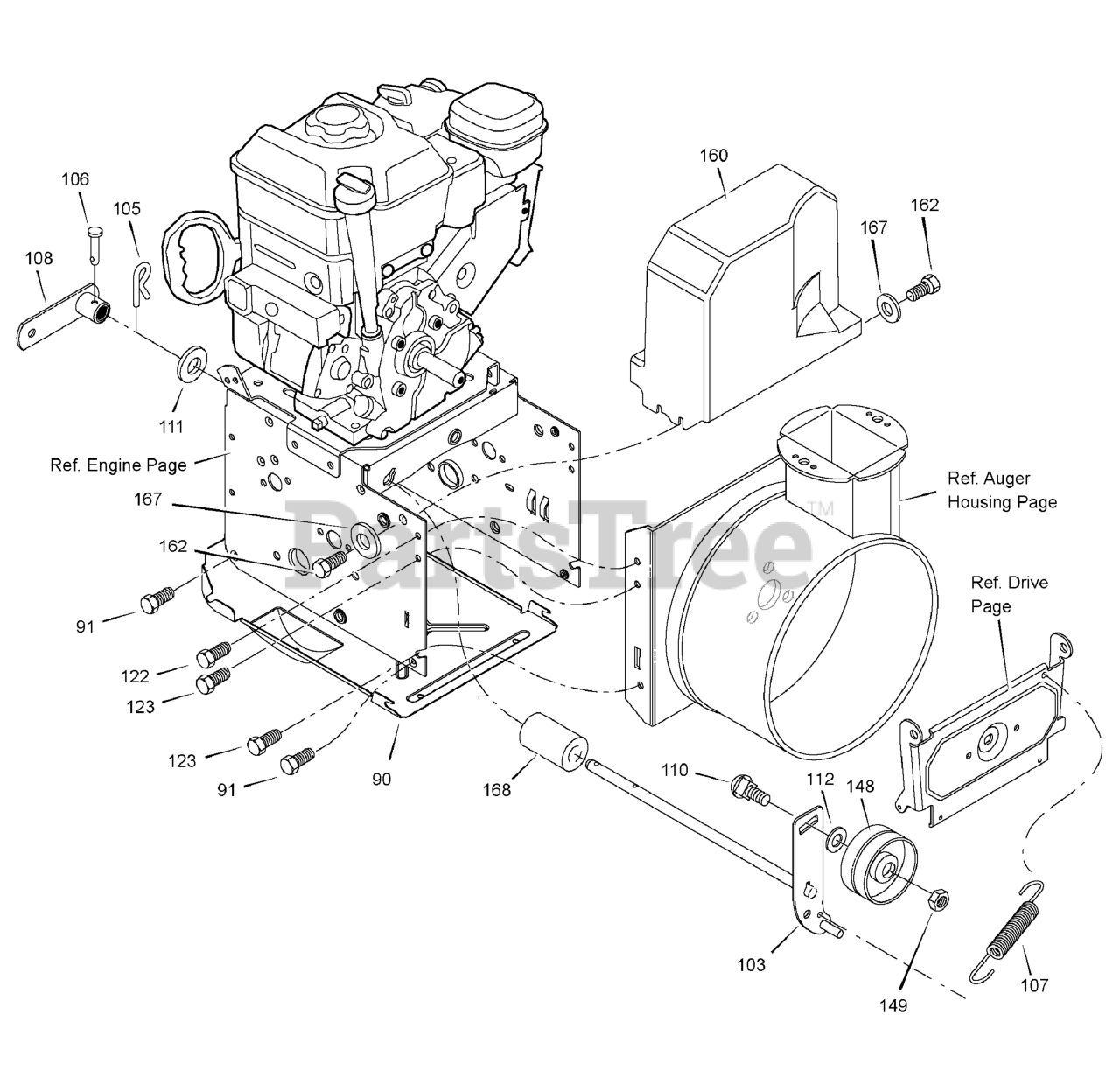

Frame (1738678) Parts Diagram

  • Title

90

Murray 1740906ASM

COVER, BOTTOM
(Superseded to 1753969BMYP)

$75.99

$

Usually ships in 2-12 days

0

91

Murray 310169MA

SCREW, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, only 1 left!

0

103

Murray 1501226YZMA

IDLER ASSEMBLY, Auger

$52.99

$

Usually ships in 2-12 days

0

105

Murray 711682MA

PIN, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

106

Murray 1736381YP

PIN, Clevis
(Superseded to 703313)

$4.99

$

In Stock, Qty 8

0

107

Murray 165X159MA

SPRING, Tension

$6.99

$

In Stock, Qty 10

0

108

Murray 1733451SM

ARM, Control

$20.99

$

In Stock, Qty 5

0

110

Murray 585781MA

BOLT, Carriage, 3/8-16 x 1-1/4
(Superseded to 703227)

$4.99

$

Usually ships in 2-12 days

0

111

Murray 711617MA

WASHER, Flat

$5.49

$

In Stock, only 2 left!

0

112

Murray 017X48MA

WASHER

$8.49

$

Usually ships in 2-12 days

0

122

Murray 25X020MA

SCREW, Tap, 5/16-18 x 1/2

$4.99

$

In Stock, Qty 6

0

123

Murray 25X021MA

SCREW, Tap, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

148

Murray 1502120MA

PULLEY, Idler

$21.99

$

In Stock, only 1 left!

0

149

Murray 590MA

NUT, Jam, 3/8-16
(Superseded to 703996)

$4.99

$

In Stock, only 4 left!

0

160

Murray 1502169MA

COVER, Belt

$69.99

$

Usually ships in 2-12 days

0

162

Murray 26X306MA

SCREW, Tap

$4.99

$

Usually ships in 2-12 days

0

167

Murray 71067MA

WASHER, Flat

$4.49

$

In Stock, only 1 left!

0

168

Murray 1502041MA

SPACER, Auger Bracket

$5.99

$

Usually ships in 2-12 days

0
