1695754 - Simplicity Turbo Blower for 44" Regent, ZT Series Turbo Blower Group Parts Diagram

Turbo Blower for 44" Regent, ZT Series

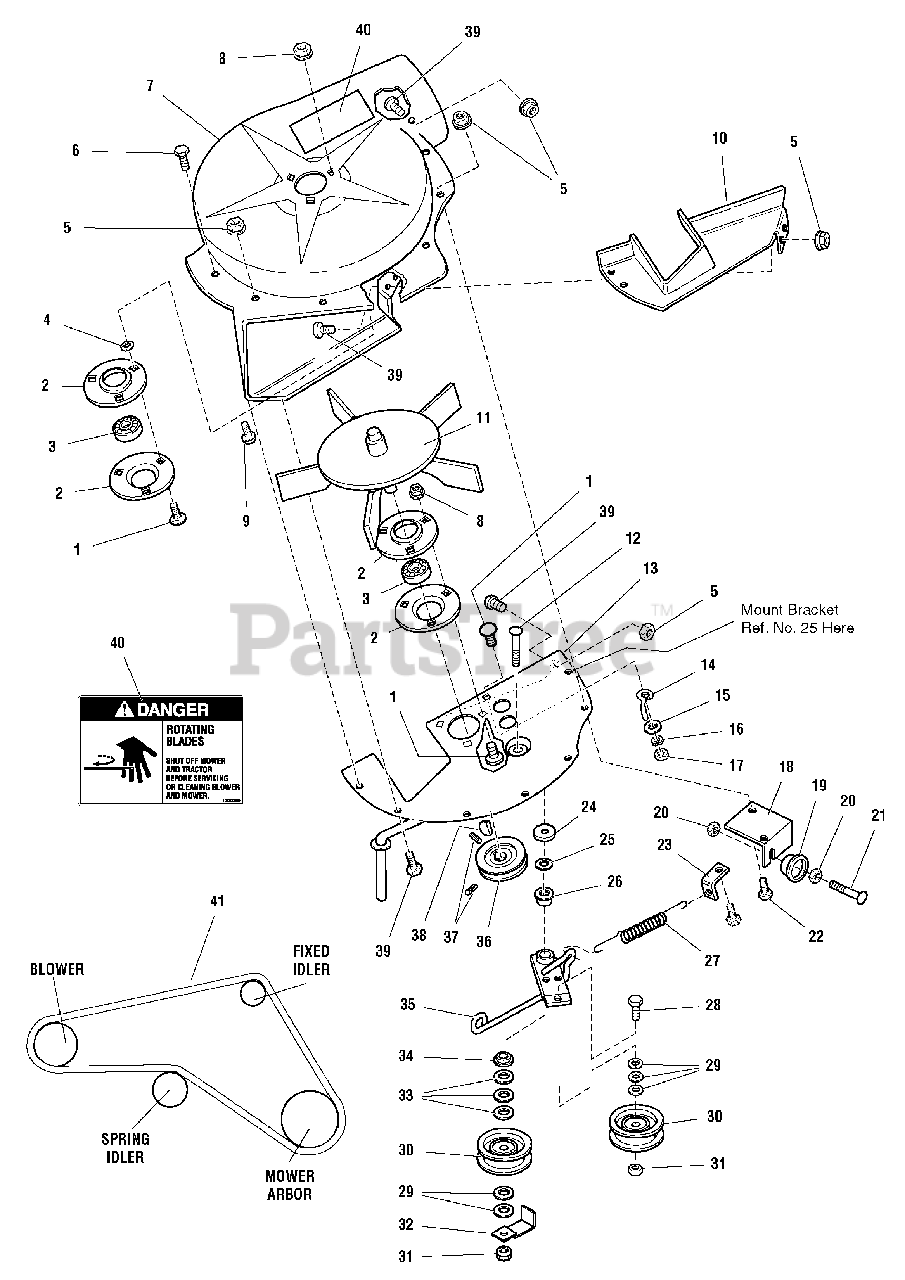

Turbo Blower Group Parts Diagram

  • Title

1

Simplicity 1931333

BOLT, Carriage, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

2

Simplicity 1665982A

BEARING, Retainer
(Superseded to 1665982SM)

$6.99

$

Usually ships in 2-12 days

0

3

Simplicity 2108202

BEARING
(Superseded to 2108202SM)

$11.99

$

In Stock, Qty 20+

0

4

Simplicity 1933988

PUSH NUT, 3/8
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

5

Simplicity 1930641

NUT, Hex, Flange Lock, 1/4-20
(Superseded to 703161)

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 1925003

CAPSCREW, Hex, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

7

Simplicity 1705492

FAN HOUSING
(Superseded to 1724441SM)

Note: (Incl. Ref. No. 40)

$240.99

$

Usually ships in 2-12 days

0

8

Simplicity 1927557

NUT, Flange Whizlock, 5/16-18
(Superseded to 703330)

$4.99

$

In Stock, Qty 9

0

9

Simplicity 1960728

SCREW, Washer Head, 1/4-18 x 5/8
(Superseded to 1960728SM)

$3.99

$

In Stock, only 4 left!

0

10

Simplicity 1705267

PLATE, Cover
(Superseded to 1705267SM)

$32.99

$

In Stock, only 2 left!

0

11

Simplicity 1706631A

FAN ASSEMBLY, 5 Blade
(Superseded to 1706631ASM)

$384.99

$

In Stock, only 1 left!

0

12

Simplicity 1931355

BOLT, Carriage, 3/8-16 x 2-1/4
(Superseded to 1931355SM)

$5.99

$

In Stock, Qty 6

0

13

Simplicity 1706465A

PLATE ASSEMBLY
(Superseded to 1706465ASM)

$370.99

$

In Stock, only 1 left!

0

14

Simplicity 1678435

BELT STOP
(Superseded to 1678435SM)

$4.49

$

Usually ships in 2-12 days

0

15

Simplicity 1924874

WASHER, Flat, 5/16 x 7/8 OD
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

16

Simplicity 1917356

WASHER, Spring Lock, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

17

Simplicity 1917372

NUT, Hex, 5/16
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

18

Simplicity 1717108

BRACKET ASSEMBLY, Turbo
(Superseded to 1717108ASM)

$11.99

$

Usually ships in 2-12 days

0

19

Simplicity 1679164A

WASHER, Cup, 0.40 Hole x 1.65 OD
(Superseded to 1679164ASM)

$56.99

$

Usually ships in 2-12 days

0

20

Simplicity 1931277

NUT, Whizlock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

21

Simplicity 1960565

BOLT, Carriage, 5/16-18 x 2-1/2
(Superseded to 1960565SM)

$3.99

$

Usually ships in 2-12 days

0

22

Simplicity 1924009

CAPSCREW, Hex Hd., 1/4-20 x 3/4
(Superseded to 703819)

$4.49

$

In Stock, only 1 left!

0

23

Simplicity 1668500A

BRACKET, Anchor, Spring
(Superseded to 1668500SM)

$19.99

$

Usually ships in 2-12 days

0

24

Simplicity 1918431

WASHER, Plain, 1/2 x 1-3/8 OD
(Superseded to 704011)

$4.49

$

In Stock, only 1 left!

0

25

Simplicity 1931942

PUSHNUT, 3/8
(Superseded to 703986)

$4.49

$

In Stock, Qty 14

0

26

Simplicity 1714255

SPACER, Idler Arm
(Superseded to 1714255SM)

$6.49

$

In Stock, Qty 9

0

27

Simplicity 1716853

SPRING, Tension
(Superseded to 1716853SM)

$12.99

$

In Stock, only 2 left!

0

28

Simplicity 1921969

CAPSCREW, Hex Head., 3/8-16 x 1-1/2
(Superseded to 703406)

$4.99

$

In Stock, Qty 6

0

29

Simplicity 1924940

WASHER, Plain, 3/8 X 7/8 O.D.
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

30

Simplicity 2154534

IDLER PULLEY ASSEMBLY, 2-3/4 OD
(Superseded to 2154534SM)

$32.99

$

In Stock, only 2 left!

0

31

Simplicity 1960339

NUT, 3/8-16
(Superseded to 1922694SM)

$6.99

$

In Stock, Qty 20+

0

32

Simplicity 1677135A

BELT STOP
(Superseded to 1677135ASM)

$12.99

$

In Stock, only 2 left!

0

33

Simplicity 1922755

WASHER, 3/8 x 1
(Superseded to 704128)

$4.99

$

In Stock, Qty 11

0

34

Simplicity 1924356

WASHER, 3/8 x 1-1/2 OD
(Superseded to 703591)

$5.49

$

In Stock, Qty 8

0

35

Simplicity 1717101

LEVER ASSEMBLY, Turbo
(Superseded to 1717101SM)

$92.99

$

Usually ships in 2-12 days

0

36

Simplicity 1736092

PULLEY, Driven, 3" OD
(Superseded to 1736092SM)

$43.99

$

Usually ships in 2-12 days

0

37

Simplicity 1960619

SETSCREW, Torx Dr, 5/16-18 x 5/16
(Superseded to 1960619SM)

$3.49

$

In Stock, only 2 left!

0

38

Simplicity 2860403

KEY, Woodruff, Modified
(Superseded to 2860403SM)

$10.99

$

In Stock, only 1 left!

0

39

Snapper 1931317

BOLT, Carriage, 5/16-18 x 3/4

$3.99

$

In Stock, Qty 5

0

40

Simplicity 1700259

DECAL, Danger, Blower
(Superseded to 1700259SM)

$27.99

$

Usually ships in 2-12 days

0

41

Simplicity 1717146

BELT, 3L, 36 Long
(Superseded to 1717146SM)

$24.99

$

Usually ships in 2-12 days

0

42

DECAL, Patent

Note: (Not a Serviceable Part)

$

$

Not available
