1695755 - Simplicity Turbo Blower for 38", 44" & 50" Mower (2007 & Before) Turbo Blower Group 38", 44" & 50" Mower Parts Diagram

Turbo Blower for 38", 44" & 50" Mower

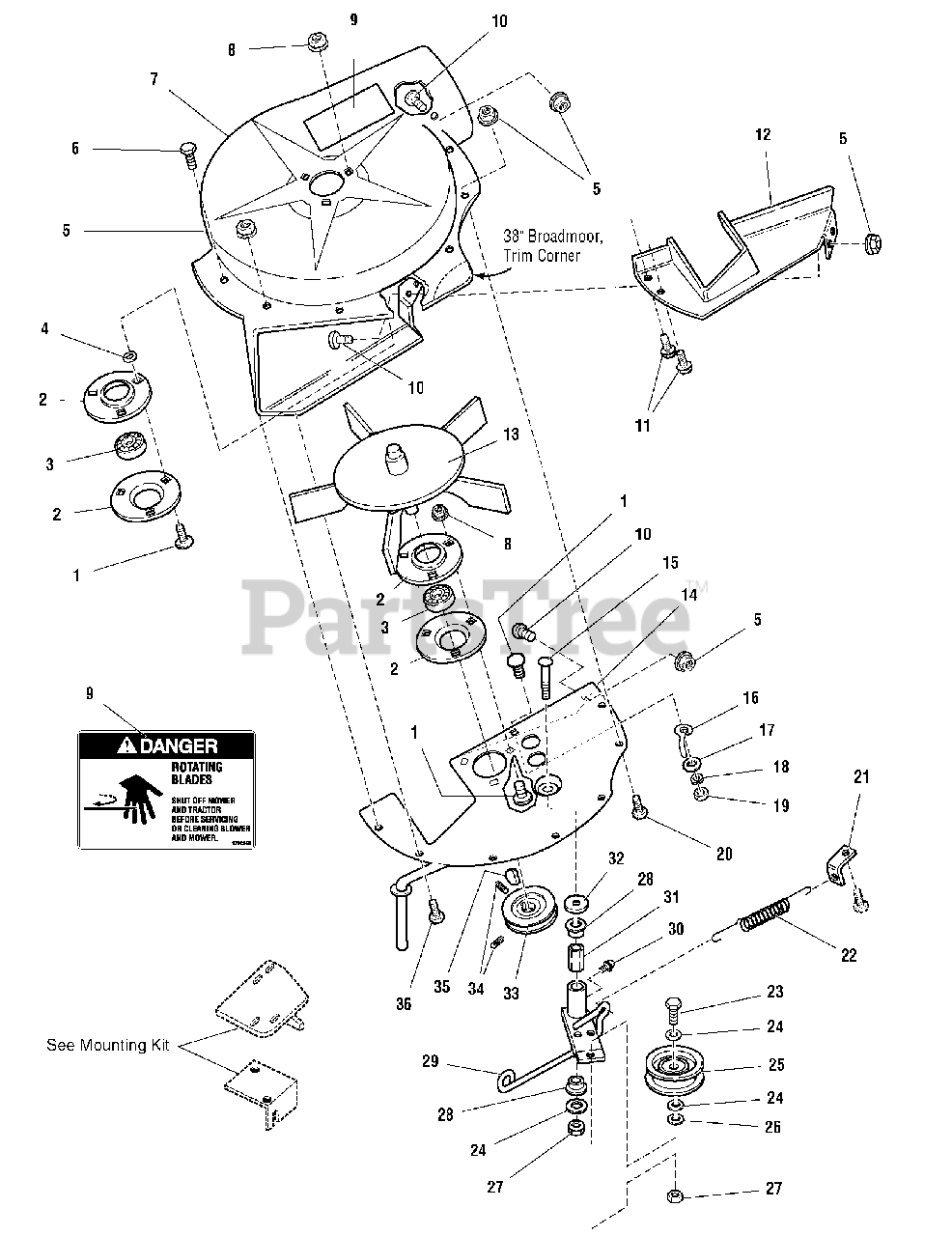

Turbo Blower Group 38", 44" & 50" Mower Parts Diagram

  • Title

1

Simplicity 1931333

BOLT, Carriage, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

2

Simplicity 1665982A

RETAINER, Bearing
(Superseded to 1665982SM)

$6.99

$

Usually ships in 2-12 days

0

3

Simplicity 2108202

BEARING
(Superseded to 2108202SM)

$11.99

$

In Stock, Qty 20+

0

4

Simplicity 1933988

PUSH NUT, 3/8 x 5/8 OD
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

5

Simplicity 1930641

NUT, Hex, Flange Lock, 1/4-20
(Superseded to 703161)

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 1925003

CAPSCREW, Hex, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

7

Simplicity 1724441

FAN HOUSING (Includes Decal)
(Superseded to 1724441SM)

$240.99

$

Usually ships in 2-12 days

0

8

Simplicity 1927557

NUT, Flange Whizlock, 5/16-18
(Superseded to 703330)

$4.99

$

In Stock, Qty 9

0

9

Simplicity 1700259

DECAL, Danger, Blower
(Superseded to 1700259SM)

$27.99

$

Usually ships in 2-12 days

0

10

Snapper 1931317

BOLT, Carriage, 1/4-20 x 3/4

$3.99

$

In Stock, Qty 5

0

11

Simplicity 1960728

CAPSCREW, Washer Head, Plastite, 1/4-18 x 5/8
(Superseded to 1960728SM)

$3.99

$

In Stock, only 4 left!

0

12

Simplicity 1705267

COVER, Bottom
(Superseded to 1705267SM)

$32.99

$

In Stock, only 2 left!

0

13

Simplicity 1706631A

FAN ASSEMBLY, 5 Blade
(Superseded to 1706631ASM)

$384.99

$

In Stock, only 1 left!

0

14

Simplicity 1706465A

PLATE ASSEMBLY
(Superseded to 1706465ASM)

$370.99

$

In Stock, only 1 left!

0

15

Simplicity 1931355

BOLT, Carriage, 3/8-16 x 2-1/4
(Superseded to 1931355SM)

$5.99

$

In Stock, Qty 6

0

16

Simplicity 1678435

BELT STOP
(Superseded to 1678435SM)

$4.49

$

Usually ships in 2-12 days

0

17

Simplicity 1924874

WASHER, Flat, 5/16 x 7/8 OD
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

18

Simplicity 1917356

WASHER, Spring Lock, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

19

Simplicity 1917372

NUT, Hex, 5/16
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

20

Simplicity 1924009

CAPSCREW, Hex Head, 1/4-20 x 7/8
(Superseded to 703819)

$4.49

$

In Stock, only 1 left!

0

21

Simplicity 1668500A

BRACKET, Anchor, Spring
(Superseded to 1668500SM)

$19.99

$

Usually ships in 2-12 days

0

22

Simplicity 1716853

SPRING, Tension
(Superseded to 1716853SM)

$12.99

$

In Stock, only 2 left!

0

23

Simplicity 1920415

CAPSCREW, Hex Head, 3/8-16 x 1-1/4
(Superseded to 703871)

$4.99

$

In Stock, only 2 left!

0

24

Simplicity 1924940

WASHER, Flat, 3/8 x 7/8 OD
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

25

Simplicity 2154534

IDLER PULLEY ASSEMBLY
(Superseded to 2154534SM)

$32.99

$

In Stock, only 2 left!

0

26

Simplicity 1933263

WASHER, Flat, 7/16 x 1-1/4 OD
(Superseded to 703990)

$6.99

$

In Stock, only 2 left!

0

27

Simplicity 1960251

NUT, Hex, Jam, Center Lock, 3/8-16
(Superseded to 703230)

$4.99

$

In Stock, only 2 left!

0

28

Simplicity 1676833

SPACER, 3/8 ID x 5/8 OD x 1-3/4 Long
(Superseded to 1676833SM)

$27.99

$

Usually ships in 2-12 days

0

29

Simplicity 1706284

LEVER ASSEMBLY, Turbo (Includes Ref. Nos. 30 & 31)
(Superseded to 1706284AYP)

$80.99

$

In Stock, Qty 13

0

30

Simplicity 1704314

FITTING, Grease
(Superseded to 1704314SM)

$4.99

$

In Stock, Qty 20+

0

31

Simplicity 1676148

BUSHING
(Superseded to 1676148SM)

$5.99

$

In Stock, Qty 10

0

32

Simplicity 1924361

WASHER, Flat, 1/2 x 1-1/4 OD
(Superseded to 703451)

$4.49

$

In Stock, only 3 left!

0

33

Simplicity 1736092

PULLEY, Driven
(Superseded to 1736092SM)

$43.99

$

Usually ships in 2-12 days

0

34

Simplicity 1960619

SETSCREW, Hex, Socket Head, 5/16-18 x 5/16
(Superseded to 1960619SM)

$3.49

$

In Stock, only 2 left!

0

35

Simplicity 2860403

KEY, Woodruff, Modified
(Superseded to 2860403SM)

$10.99

$

In Stock, only 1 left!

0

36

Simplicity 1921959

CAPSCREW, Hex Head, 1/4-20 x 5/8
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 20+

0
