1695759 - Simplicity 60" Turbo Collector for Legacy XL 60" Turbo - Blower Group (1695759B) Parts Diagram

60" Turbo Collector for Legacy XL

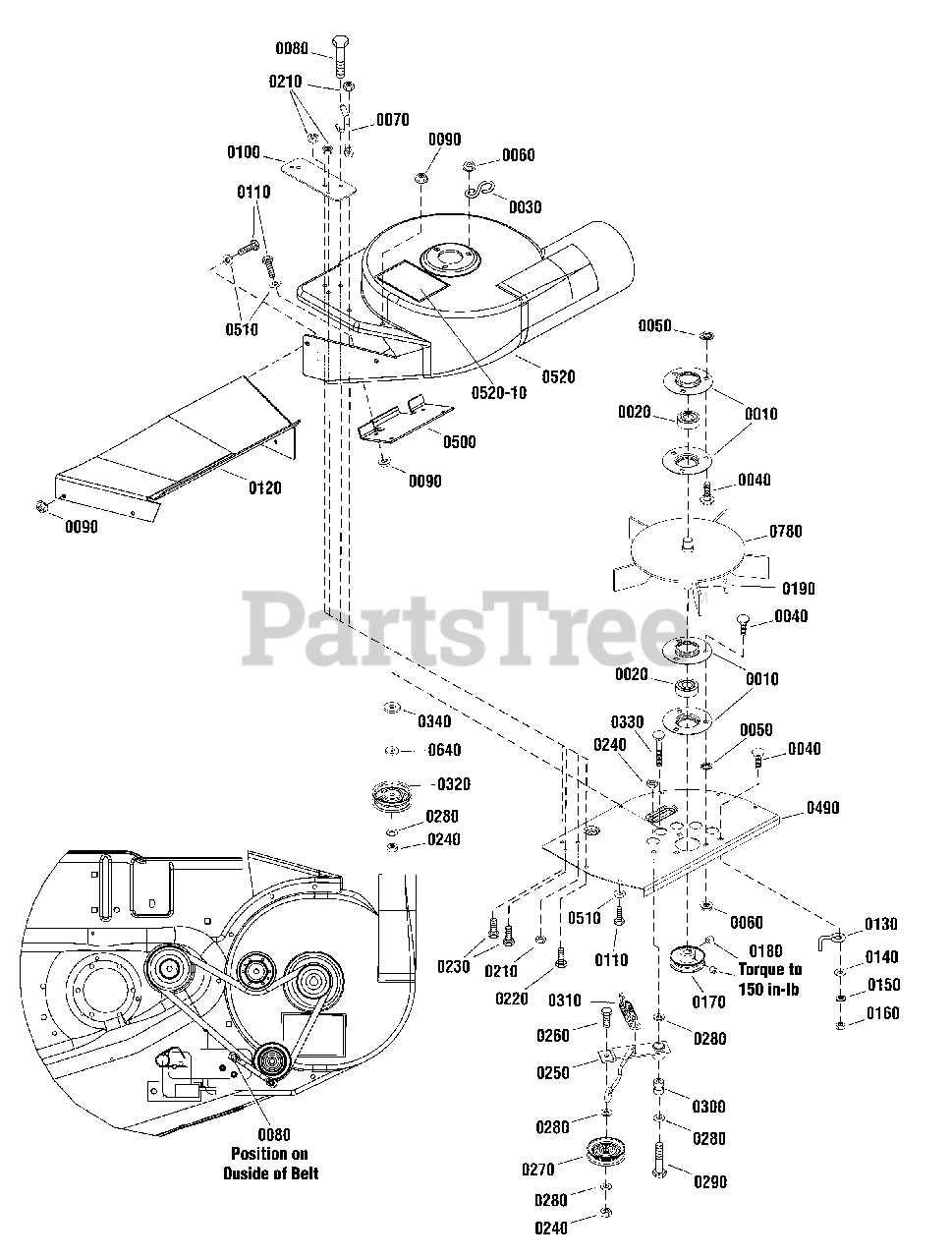

60" Turbo - Blower Group (1695759B) Parts Diagram

  • Title

0010

Simplicity 1665982ASM

RETAINER, Bearing
(Superseded to 1665982SM)

$6.99

$

Usually ships in 2-12 days

0

0020

Simplicity 2108202SM

BEARING

$11.99

$

In Stock, Qty 20+

0

0030

Simplicity 1672689SM

S-HOOK

$31.99

$

Usually ships in 2-12 days

0

0040

Simplicity 703185

BOLT, Carriage, 5/16-18 x 3/4

$3.49

$

In Stock, Qty 20+

0

0050

Simplicity 703297

NUT, Push, 5/16

$3.99

$

In Stock, Qty 20+

0

0060

Simplicity 1927557SM

NUT, Hex Flange Whiz Lock, 5/16-18

$4.99

$

In Stock, Qty 5

0

0070

Simplicity 1700936SM

STOP, Deflector

$24.99

$

Usually ships in 2-12 days

0

0080

Simplicity 1960346SM

CAPSCREW, Hex Head,1/4-20 x 2-1/4

$4.99

$

Usually ships in 2-12 days

0

0090

Simplicity 1960608SM

NUT, Hex Flange Lock, 1/4-20

$4.99

$

Usually ships in 2-12 days

0

0100

Simplicity 1727404ASM

PLATE, Mounting

$13.99

$

Usually ships in 2-12 days

0

0110

Simplicity 703338

CAPSCREW, Hex Head, 1/4-20 x 5/8

$3.99

$

Usually ships in 2-12 days

0

0120

Simplicity 1702589ASM

COVER, Top

$153.99

$

Usually ships in 2-12 days

0

0130

Simplicity 2170397SM

STOP, Belt

$11.99

$

Usually ships in 2-12 days

0

0140

Simplicity 1660731SM

WASHER

$25.99

$

Usually ships in 2-12 days

0

0150

Simplicity 1917356SM

WASHER, Lock, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0160

Simplicity 703465

NUT, 5/16-18, GR5, ZINC/CLEAR

$4.49

$

Usually ships in 2-12 days

0

0170

Simplicity 1736092SM

PULLEY, 2.75 OD

$43.99

$

Usually ships in 2-12 days

0

0180

Simplicity 1960619SM

SETSCREW, Sqr Hd, 5/16-18 x 5/16

$3.49

$

In Stock, only 2 left!

0

0190

Simplicity 2860403SM

KEY, Woodruff, 3/16

$10.99

$

In Stock, only 1 left!

0

0210

Simplicity 15X145MA

NUT, Hex Nylon Lock, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0220

Simplicity 703819

CAPSCREW, Hex Hd, 1/4-20 x 7/8

$4.49

$

In Stock, only 1 left!

0

0230

Simplicity 7091495SM

CAPSCREW, Hex Hd, 1/4-20 x 3/4
(Superseded to 703925)

$4.49

$

In Stock, Qty 6

0

0240

Simplicity 1928731SM

NUT, Hex Jam Lock, 3/8-16

$4.99

$

In Stock, only 1 left!

0

0250

Simplicity 1701827ASM

ARM, Idler

$67.99

$

Usually ships in 2-12 days

0

0260

Simplicity 703407

CAPSCREW, Hex Hd, 3/8-16 x 1

$11.99

$

In Stock, Qty 5

0

0270

Simplicity 2174561SM

PULLEY, 3"OD

$53.99

$

In Stock, Qty 5

0

0280

Simplicity 703878

WASHER, Flat

$3.99

$

In Stock, Qty 20+

0

0290

Simplicity 703406

CAPSCREW, Hex Hd, 3/8-16 x 1 1/2

$4.99

$

In Stock, Qty 6

0

0300

Simplicity 703140

BUSHING,.380ID X 3/4OD X 1.030

$11.99

$

Usually ships in 2-12 days

0

0310

Simplicity 1679554SM

SPRING, Extension

$7.49

$

Usually ships in 2-12 days

0

0320

Simplicity 2174561SM

PULLEY, Idler

$53.99

$

In Stock, Qty 5

0

0330

Simplicity 1960268SM

BOLT, Carriage, 3/8-16 x 1 1/4

$4.49

$

In Stock, Qty 14

0

0340

Simplicity 1676435SM

WASHER,1/2

$8.49

$

Usually ships in 2-12 days

0

0470

Simplicity 1733507SM

V-BELT, 4L, 38.5

Note: (Not Shown, Use Mounting Group)

$26.99

$

In Stock, only 4 left!

0

0490

Simplicity 1706652ASM

PLATE, Shroud

$62.99

$

Usually ships in 2-12 days

0

0500

Simplicity 1679900SM

HOOK, Stone Guard
(Superseded to 1679900ASM)

$107.99

$

Usually ships in 2-12 days

0

0510

Simplicity 71067MA

WASHER

$4.49

$

In Stock, only 1 left!

0

0520

Simplicity 1706718SM

HOUSING, Blower

$384.99

$

Usually ships in 2-12 days

0

0520-10

Simplicity 1700259SM

DECAL, Danger

$27.99

$

Usually ships in 2-12 days

0

0640

Simplicity 2157424SM

WASHER, Special, 3/8

$7.49

$

In Stock, Qty 5

0

0780

Simplicity 1706631ASM

FAN ASSEMBLY (5 Blade)

$384.99

$

In Stock, only 1 left!

0
