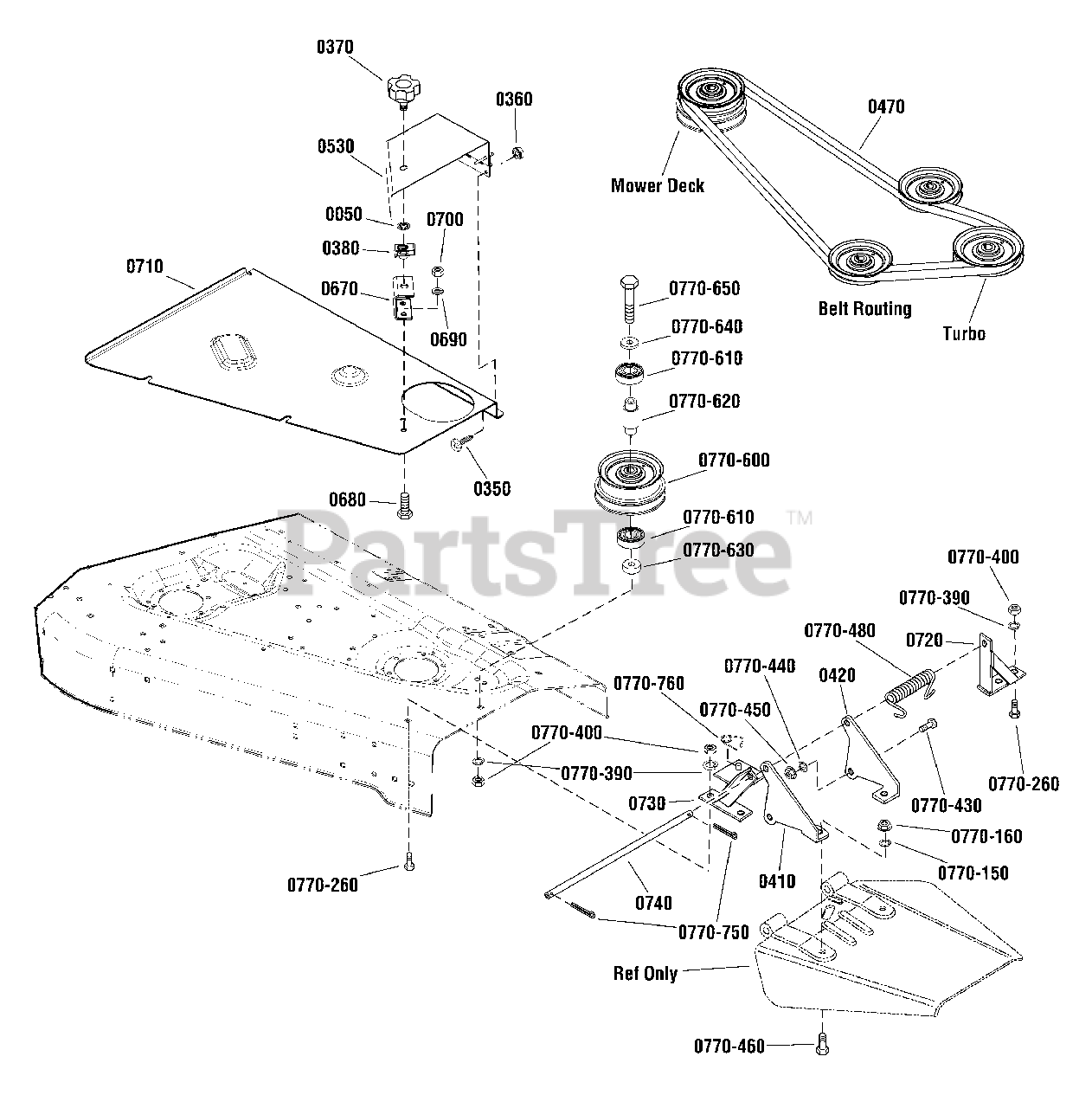

1695759 - Simplicity 60" Turbo Collector for Legacy XL 60" Turbo - Mounting Group (1695759M) Parts Diagram

60" Turbo Collector for Legacy XL

60" Turbo - Mounting Group (1695759M) Parts Diagram

  • Title

0050

Simplicity 703297

NUT, Push, 5/16

$3.99

$

In Stock, Qty 6

0

0350

Simplicity 1922121SM

SCREW, Machine, #10-32 x 3/8

$3.49

$

Usually ships in 2-12 days

0

0360

Simplicity 1928919SM

NUT, Hex Keps, #10-32

$3.99

$

In Stock, Qty 13

0

0370

Simplicity 1700669SM

KNOB

$20.99

$

Usually ships in 2-12 days

0

0380

Simplicity 1935255SM

NUT, Speed, 5/16-18

$3.49

$

In Stock, only 4 left!

0

0410

Simplicity 1700801ASM

BRACKET, L.H. Pivot

$44.99

$

Usually ships in 2-12 days

0

0420

Simplicity 1700802ASM

BRACKET, R.H. Pivot

$56.99

$

Usually ships in 2-12 days

0

0470

Simplicity 1733507SM

V-BELT, 4L, 38.5

$27.99

$

In Stock, only 2 left!

0

0530

Simplicity 1700668ASM

COVER ASSEMBLY

$

$

Not available

0670

Simplicity 1700654ASM

BRACKET, Belt Cover

$16.99

$

Usually ships in 2-12 days

0

0680

Simplicity 703818

CAPSCREW, Hex Head, 1/4-20 x 1/2

$3.49

$

In Stock, only 1 left!

0

0690

Simplicity 704133

WASHER, Lock, 1/4
(Superseded to 5025169FS)

$4.49

$

In Stock, Qty 16

0

0700

Simplicity 703127

NUT, Hex, 1/4-20

$3.49

$

In Stock, Qty 14

0

0710

Simplicity 1725742ASM

COVER, L.H. Mower

$62.99

$

Usually ships in 2-12 days

0

0720

Simplicity 1700832ASM

HINGE ASSEMBLY, Rear

$

$

Not available

0730

Simplicity 1725923ASM

HINGE ASSEMBLY, Front

$141.99

$

Usually ships in 2-12 days

0

0740

Simplicity 1700853SM

ROD, Pivot

$15.99

$

Usually ships in 2-12 days

0

0770-150

Simplicity 703116

WASHER, Lock, 5/16
(Superseded to 5025170SM)

$4.49

$

In Stock, only 3 left!

0

0770-160

Simplicity 703465

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, only 4 left!

0

0770-260

Simplicity 703407

CAPSCREW, Hex Head, 3/8-16 x 1
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 2 left!

0

0770-260

Simplicity 703407

CAPSCREW, Hex Head, 3/8-16 x 1
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 2 left!

0

0770-390

Simplicity 703454

WASHER, Lock, 3/8

$3.49

$

In Stock, only 3 left!

0

0770-400

Simplicity 703577

NUT, Hex, 3/8-16

$4.49

$

In Stock, only 2 left!

0

0770-430

Simplicity 1926110SM

CAPSCREW, Hex Head, 7/16-14 x 2 3/4

$6.49

$

In Stock, Qty 6

0

0770-440

Simplicity 704007

WASHER, Lock, 7/16

$4.49

$

In Stock, only 3 left!

0

0770-450

Simplicity 1918213SM

NUT, Hex, 7/16-14

$4.99

$

In Stock, only 2 left!

0

0770-460

Simplicity 703408

CAPSCREW, Hex Head, 5/16-18 x 7/8

$4.99

$

In Stock, Qty 5

0

0770-480

Simplicity 1700852SM

SPRING, Torsion

$45.99

$

Usually ships in 2-12 days

0

0770-600

Simplicity 1700650SM

PULLEY, 4 OD

$235.99

$

In Stock, only 1 left!

0

0770-610

Simplicity 1705897SM

BEARING, Ball

$8.49

$

In Stock, Qty 20+

0

0770-620

Simplicity 1700651SM

SPACER, Pulley

$

$

Not available

0770-630

Simplicity 1700652SM

SPACER, 1 OD

$

$

Not available

0770-640

Simplicity 2157424SM

WASHER, Special, 3/8

$7.99

$

Usually ships in 2-12 days

0

0770-650

Simplicity 703874

CAPSCREW, Hex Head, 3/8-16 x 3 1/4

$4.49

$

In Stock, Qty 6

0

0770-750

Simplicity 331613MA

PIN, Cotter, 3/32 x 3/4

$26.99

$

Usually ships in 2-12 days

0

0770-760

Simplicity 703852

PIN, Retainer, 5/16 X 3/8

$4.49

$

In Stock, Qty 13

0
