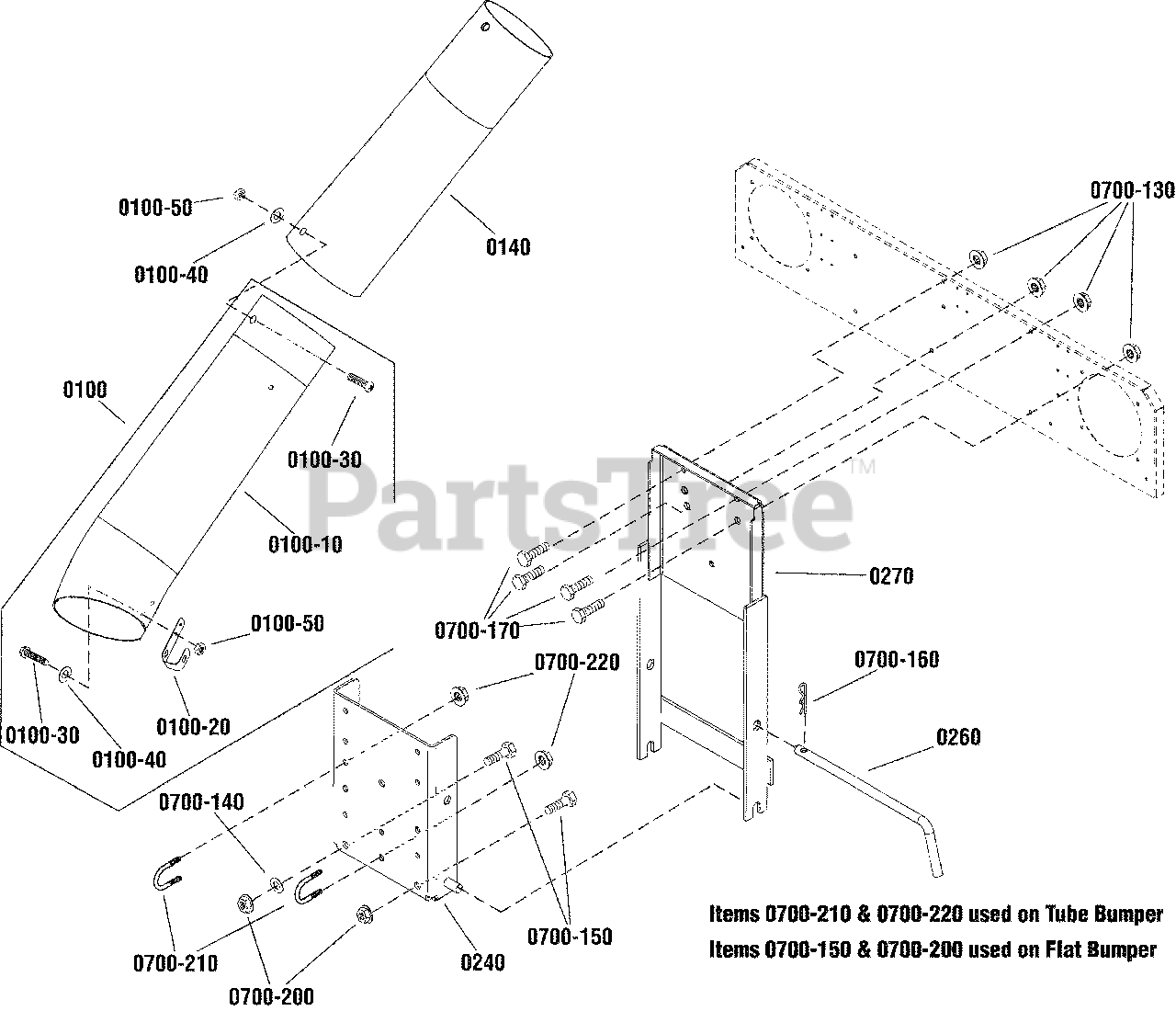

1695762 - Simplicity Clean Sweep Triple Grass Catcher Tube & Hitch Assembly Parts Diagram

Clean Sweep Triple Grass Catcher

Tube & Hitch Assembly Parts Diagram

  • Title

0100

Simplicity 1660941

CHUTE & CLIPS ASSEMBLY

$

$

Not available

0100-10

Simplicity 5049152

CHUTE, Lower
(Superseded to 5049152SM)

$93.99

$

Usually ships in 2-12 days

0

0100-20

Simplicity 1705063

CLIP, Spring
(Superseded to 1705063YP)

$

$

Not available

0100-30

Simplicity 1960404

SCREW, Truss Head, Phillips 10-24 x 3/4
(Superseded to 1960404SM)

$3.99

$

In Stock, only 4 left!

0

0100-40

Simplicity 1960096

WASHER 3/16
(Superseded to 1960096SM)

$3.99

$

In Stock, only 2 left!

0

0100-50

Simplicity 1933896

NUT, Hex, Lock 10-24
(Superseded to 703412)

$4.49

$

In Stock, Qty 5

0

0140

Simplicity 5049151

CHUTE, Middle
(Superseded to 5049151SM)

$113.99

$

Usually ships in 2-12 days

0

0240

Simplicity 1732625A

PLATE & PINS ASSEMBLY
(Superseded to 1732625ASM)

$134.99

$

Usually ships in 2-12 days

0

0260

Simplicity 1717085

ROD, Support
(Superseded to 1717085SM)

$53.99

$

In Stock, only 2 left!

0

0270

Simplicity 1723437A

SUPPORT ASSEMBLY
(Superseded to 1723437ASM)

$

$

Not available

--

Simplicity 1660930

HARDWARE BAG

$

$

Not available

0700-130

Simplicity 1928352

NUT, Hex Flange 3/8-16
(Superseded to 703793)

$4.49

$

Usually ships in 2-12 days

0

0700-140

Simplicity 1924361

WASHER, 1/2
(Superseded to 703451)

$4.49

$

In Stock, Qty 20+

0

0700-150

Simplicity 1921176

* CAPSCREW, Hex Head 1/2-13 x 1.35"
(Superseded to 1921176SM)

Note: * Used on Flat Bumper

$5.49

$

In Stock, only 1 left!

0

0700-160

Simplicity 1960033

CLIP, Hair Pin
(Superseded to 1960033SM)

$3.49

$

In Stock, Qty 20+

0

0700-170

Simplicity 1921965

CAPSCREW, Hex Head 3/8-16 X 3/4
(Superseded to 703237)

$4.99

$

Usually ships in 2-12 days

0

0700-200

Simplicity 1960668

* NUT, Hex Flange 1/2-13
(Superseded to 1960668SM)

Note: * Used on Flat Bumper

$3.49

$

Usually ships in 2-12 days

0

0700-210

Simplicity 1732617

* BOLT-U 1 x 3/4 Opening, 3/8-16 x 1 1/8
(Superseded to 1732617SM)

Note: * Used on Tube Bumper

$7.49

$

Usually ships in 2-12 days

0

0700-220

Simplicity 1960687

* NUT, Hex Flange 3/8-16
(Superseded to 703158)

Note: * Used on Tube Bumper

$3.49

$

Usually ships in 2-12 days

0
