1695763 - Simplicity Turbo Mounting Kit 38" Mower Turbo Mounting Kit - 38" Mower Parts Diagram

Turbo Mounting Kit 38" Mower

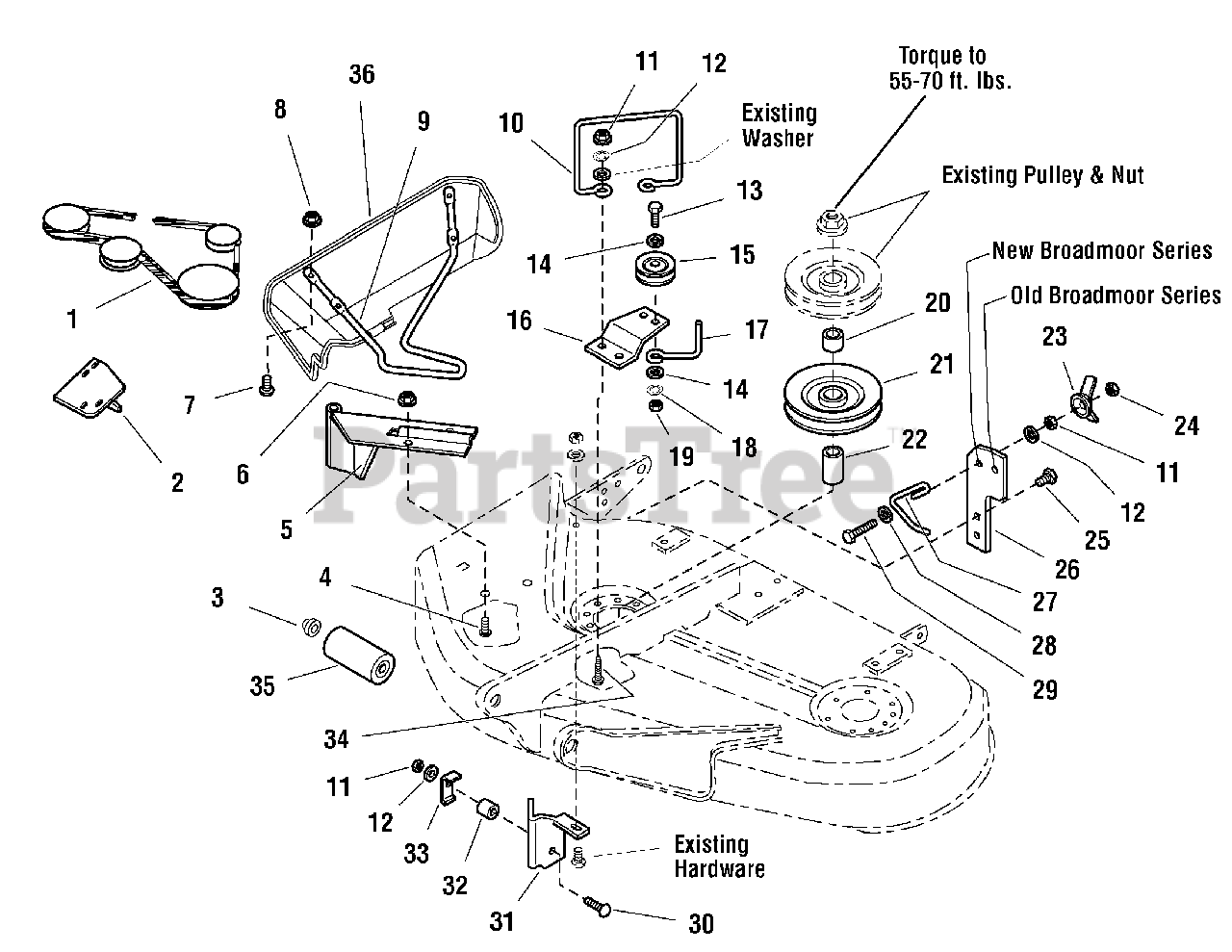

Turbo Mounting Kit - 38" Mower Parts Diagram

  • Title

1

Simplicity 1737073

V-BELT, Cog, 47-7/8
(Superseded to 1737073YP)

$31.99

$

In Stock, only 1 left!

0

2

Simplicity 1704983A

BRACKET & PLATE ASSEMBLY
(Superseded to 1704983ASM)

$45.99

$

Usually ships in 2-12 days

0

3

Simplicity 1960520

PAL NUT, 5/8
(Superseded to 1960520SM)

$3.99

$

In Stock, Qty 20+

0

4

Simplicity 1931333

BOLT, Carriage, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

5

Simplicity 1722546A

PIVOT ASSEMBLY
(Superseded to 1722546ASM)

$216.99

$

Usually ships in 2-12 days

0

6

Simplicity 1931277

NUT, Hex, Flange Whizlock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

7

Simplicity 1960404

CAPSCREW, Truss Head, #10-24 x 3/4
(Superseded to 1960404SM)

$3.99

$

In Stock, only 4 left!

0

8

Simplicity 1933896

NUT, Nylock, #10-24
(Superseded to 703412)

$4.49

$

In Stock, Qty 10

0

9

Simplicity 1718295A

ROD, Deflector
(Superseded to 1718295ASM)

$112.99

$

Usually ships in 2-12 days

0

10

Simplicity 1704789

BELT GUIDE, Turbo
(Superseded to 1704789SM)

$14.99

$

Usually ships in 2-12 days

0

11

Simplicity 1917372

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

12

Simplicity 1917356

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

13

Simplicity 1921971

CAPSCREW, Hex Head, 3/8-16 x 1-1/4
(Superseded to 704289)

$4.99

$

In Stock, Qty 13

0

14

Simplicity 1924940

WASHER, Flat, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

15

Simplicity 1721134

PULLEY, Idler
(Superseded to 1721134SM)

$30.99

$

Usually ships in 2-12 days

0

16

Simplicity 1704768A

BRACKET, Idler
(Superseded to 1704768ASM)

$13.99

$

Usually ships in 2-12 days

0

17

Simplicity 2172845

BELT STOP
(Superseded to 2172845SM)

$11.99

$

Usually ships in 2-12 days

0

18

Simplicity 1916965

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 7

0

19

Simplicity 1916950

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 9

0

20

Simplicity 1713624

SPACER, Short
(Superseded to 1713624SM)

$15.99

$

Usually ships in 2-12 days

0

21

Simplicity 1713091

PULLEY ASSEMBLY
(Superseded to 1713091SM)

$23.99

$

In Stock, only 1 left!

0

22

Simplicity 1713621

SPACER, Long
(Superseded to 1713621SM)

$19.99

$

Usually ships in 2-12 days

0

23

Simplicity 1679163

NUT, Wing, 5/16
(Superseded to 1679163SM)

$69.99

$

In Stock, only 1 left!

0

24

Simplicity 1923362

NUT, Hex, Center Lock, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 10

0

25

Simplicity 1924856

SCREW, Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, Qty 14

0

26

Simplicity 1724370A

BRACE
(Superseded to 1724370ASM)

$11.99

$

Usually ships in 2-12 days

0

27

Simplicity 1705064

SPRING LATCH
(Superseded to 1705064SM)

$44.99

$

Usually ships in 2-12 days

0

28

Simplicity 1919381

WASHER, Flat
(Superseded to 1919381SM)

$4.49

$

In Stock, Qty 11

0

29

Simplicity 1960318

CAPSCREW, Hex Head, 5/16-18 x 2-1/2
(Superseded to 1960318SM)

$4.99

$

Usually ships in 2-12 days

0

30

Simplicity 1960223

BOLT, Carriage, 5/16-18 x 1-1/4
(Superseded to 703446)

$4.49

$

Usually ships in 2-12 days

0

31

Simplicity 1704881A

BRACKET ASSEMBLY
(Superseded to 1704881ASM)

$62.99

$

Usually ships in 2-12 days

0

32

Simplicity 1666294

SPACER
(Superseded to 1666294SM)

$4.99

$

In Stock, Qty 20+

0

33

Simplicity 1705308A

BRACKET, "L"
(Superseded to 1705308ASM)

$33.99

$

Usually ships in 2-12 days

0

34

Simplicity 1930600

CAPSCREW, Hex Head Taptite, 5/16-18 x 1-1/2
(Superseded to 1930600SM)

$4.99

$

In Stock, Qty 20+

0

35

Simplicity 1713540

ROLLER
(Superseded to 1713540SM)

$43.99

$

Usually ships in 2-12 days

0

36

Simplicity 1724371

DEFLECTOR
(Superseded to 1724371SM)

$76.99

$

Usually ships in 2-12 days

0
