1695772 - Murray 20" Snow Thrower (2010) Auger Housing Assembly Parts Diagram

20" Snow Thrower

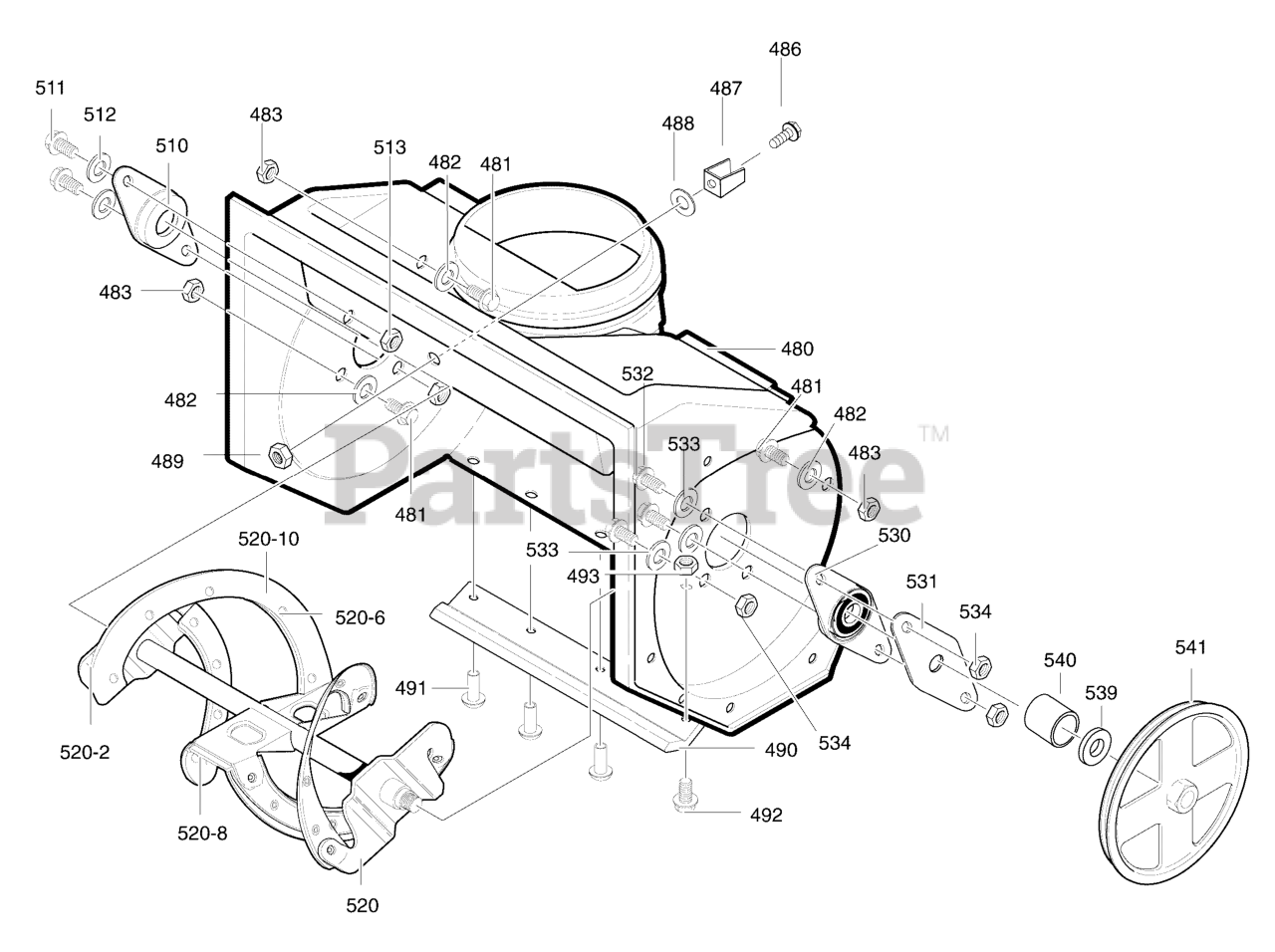

Auger Housing Assembly Parts Diagram

  • Title

480

Murray 330312MA

HOUSING ASSEMBLY

$

$

Not available

481

Murray 302628MA

SCREW, 1/4-20 x .75

$4.49

$

In Stock, Qty 6

0

482

Murray 71067MA

FLATWASHER

$4.49

$

In Stock, only 1 left!

0

483

Murray 73826MA

NUT, 1/4-20
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

486

Murray 579052MA

SCREW, 1/4-20 x .63

$9.99

$

In Stock, only 1 left!

0

487

Murray 331126MA

BRACKET, STOP

$6.99

$

Usually ships in 2-12 days

0

488

Murray 331211MA

FLATWASHER

$3.99

$

Usually ships in 2-12 days

0

489

Murray 15X143MA

NUT, 1/4-20

$4.99

$

In Stock, only 4 left!

0

490

Murray 55323MA

SCRAPER BAR

$35.99

$

In Stock, only 1 left!

0

491

Murray 577707MA

RIVET

$3.99

$

Usually ships in 2-12 days

0

492

Murray 302628MA

SCREW, 1/4-20 x .75

$4.49

$

In Stock, Qty 6

0

493

Murray 15X143MA

NUT, 1/4-20

$4.99

$

In Stock, only 4 left!

0

510

Murray 577023MA

FLANGE BEARING

$5.99

$

In Stock, only 3 left!

0

511

Murray 710263MA

SCREW, 1/4-20 x 1.00

$3.99

$

Usually ships in 2-12 days

0

512

Murray 71067MA

FLATWASHER

$4.49

$

In Stock, only 1 left!

0

513

Murray 15X143MA

NUT, 1/4-20

$4.99

$

In Stock, only 4 left!

0

520

Murray 302783MA

AUGER ASSEMBLY

$204.99

$

Usually ships in 2-12 days

0

520-2

Murray 302565MA

AUGER BLADE

$28.99

$

In Stock, only 2 left!

0

520-6

Murray 49838MA

RIVET

$4.49

$

In Stock, Qty 20+

0

520-8

Murray 335992MA

CENTER BLADE

$8.99

$

In Stock, Qty 8

0

520-10

Murray 302783MA

AUGER & BLADE SUPPORT

$204.99

$

Usually ships in 2-12 days

0

530

Murray 583459MA

BEARING & PLATE ASSEMBLY

$27.99

$

Usually ships in 2-12 days

0

531

Murray 334287MA

BEARING RETAINER

$7.49

$

In Stock, only 1 left!

0

532

Murray 579052MA

SCREW, 1/4-20 x 5/8

$9.99

$

In Stock, only 1 left!

0

533

Murray 71067MA

FLATWASHER, .281 x .63 x .065

$4.49

$

In Stock, only 1 left!

0

534

Murray 73826MA

NUT, 1/4-20
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

539

Murray 40677MA

FLATWASHER

$5.99

$

In Stock, only 1 left!

0

540

Murray 578101MA

SPACER, SLEEVE

$4.99

$

Usually ships in 2-12 days

0

541

Murray 583363MA

PULLEY, POLY V -AUGER

$

$

Not available
