1695872 - Brute 27" Snow Thrower, 11.5 Gross TP (2010) Wheels & Tires Group Parts Diagram

27" Snow Thrower, 11.5 Gross TP

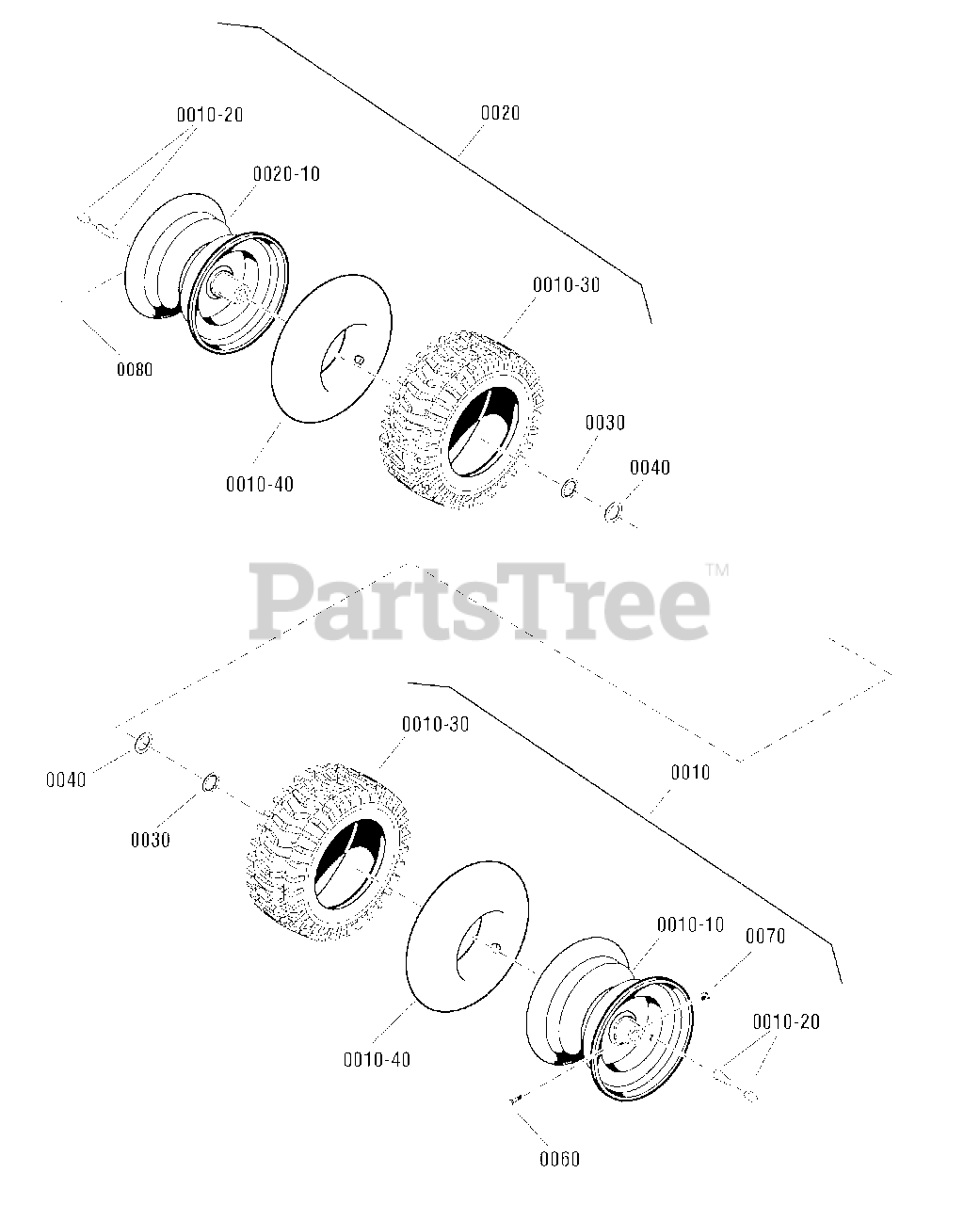

Wheels & Tires Group Parts Diagram

  • Title

0010

Briggs & Stratton 1735355YP

WHEEL & TIRE ASSEMBLY, 16 X 6.50-8, LH

Note: (Includes Ref. Nos. 0010-10, 0010-20, 0010-30 & 0010-40)

$193.99

$

Usually ships in 2-12 days

0

0010-10

* WHEEL, Rim, LH

$

$

Not available

0010-20

Briggs & Stratton 2172353SM

VALVE STEM & CAP
(Superseded to 024373MA)

$8.49

$

Usually ships in 2-12 days

0

0010-30

Briggs & Stratton 1727075SM

TIRE, X-TRAC TL, 16 x 6.50 - 8
(Superseded to 1751301YP)

$107.99

$

Usually ships in 2-12 days

0

0010-40

Briggs & Stratton 2164247SM

TUBE, Tire

$43.99

$

In Stock, only 2 left!

0

0020

Briggs & Stratton 1735356YP

WHEEL & TIRE ASSEMBLY, 16 X 6.50-8, RH

Note: (Includes Ref. Nos. 0020-10, 0010-20, 0010-30 & 0010-40)

$173.99

$

Usually ships in 2-12 days

0

0020-10

* WHEEL, Rim, RH

$

$

Not available

0030

Briggs & Stratton 1657528SM

RING, Retaining

$4.49

$

In Stock, Qty 20+

0

0040

Briggs & Stratton 712120MA

WASHER, Flat, 3/4

$5.49

$

In Stock, Qty 16

0

0060

Briggs & Stratton 577015MA

BOLT, Hex, 1/4-20 x 1-3/4, G5

$5.49

$

In Stock, Qty 9

0

0070

Briggs & Stratton 15X145MA

NUT, Hex Nylock, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0080

Briggs & Stratton 73842MA

PIN, Klik
(Superseded to 500016MA)

$16.99

$

In Stock, only 2 left!

0
