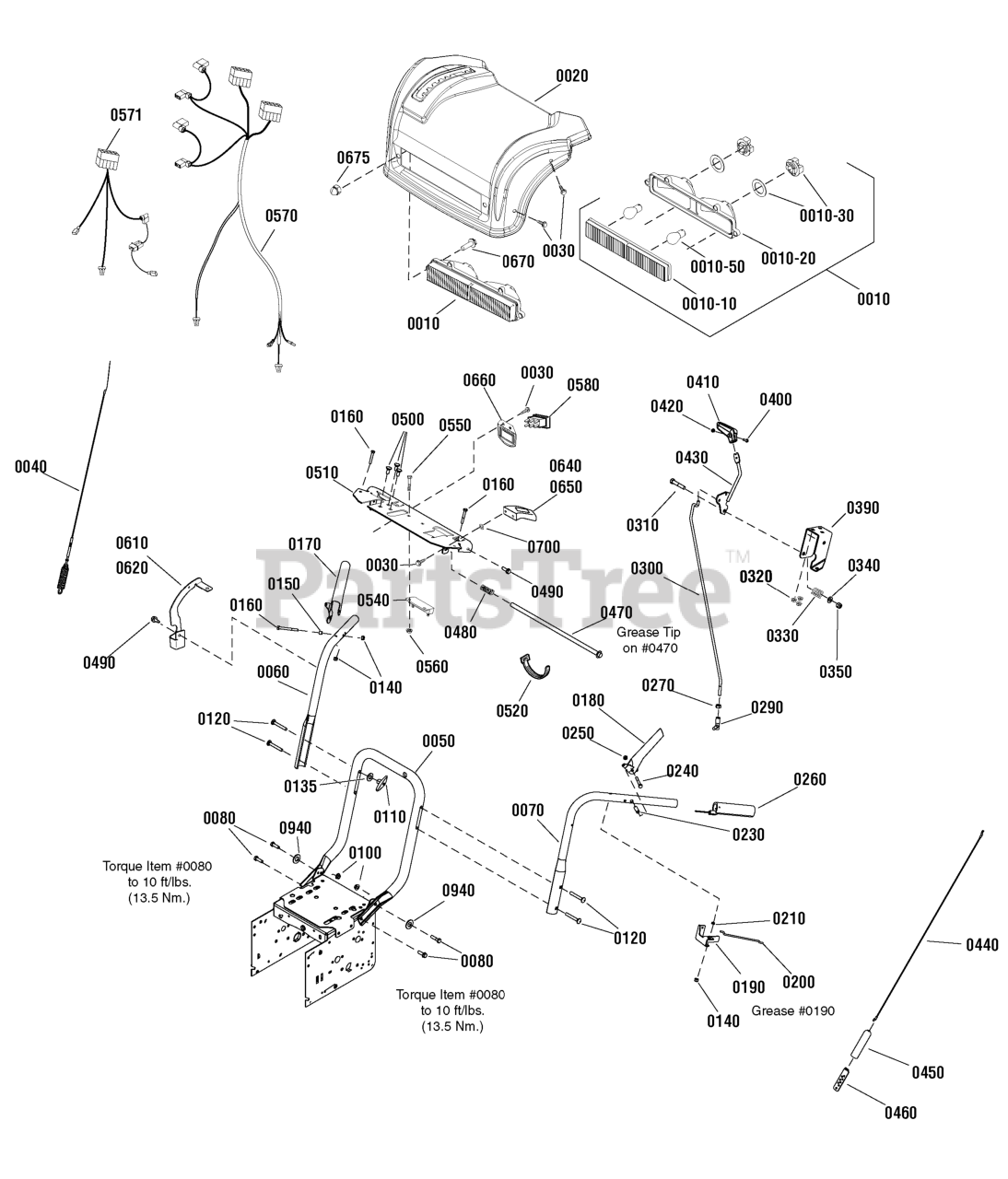

1695906 (M 1227 E) - Canadiana 27" Snow Thrower, 11.5 Gross TP (2010) Handles and Controls Group Parts Diagram

27" Snow Thrower, 11.5 Gross TP

Handles and Controls Group Parts Diagram

  • Title

0010

Murray 1736176YP

HEADLIGHT ASSEMBLY

$68.99

$

Usually ships in 2-12 days

0

0010-10

LENS, Twin Light

Note: (Included with Ref. No. 0010)

$

$

Not available

0010-20

DEFLECTOR, Twin Light

Note: (Included with Ref. No. 0010)

$

$

Not available

0010-30

Murray 1736180YP

SOCKET & GASKET ASSEMBLY, Headlight

Note: (Included with Ref. No. 0010)

$10.99

$

Usually ships in 2-12 days

0

0010-50

* BULB, Twin Light, 12V 15W

Note: (Included with Ref. No. 0010)

$

$

Not available

0020

Murray 1750676BRYP

COVER, Panel

$108.99

$

Usually ships in 2-12 days

0

0030

Murray 1960556SM

SCREW, Pan Head Torx, 1/4-20 x 3/4

$4.99

$

Usually ships in 2-12 days

0

0040

Murray 1737544YP

CABLE, Auger Drive
(Superseded to 703221)

$26.99

$

In Stock, only 3 left!

0

0050

Murray 1737274AYP

HANDLE, Lower

$113.99

$

Usually ships in 2-12 days

0

0060

Murray 1734587ASM

HANDLE, Upper, LH

$54.99

$

Usually ships in 2-12 days

0

0070

Murray 1734586ASM

HANDLE, Upper, RH

$58.99

$

Usually ships in 2-12 days

0

0080

Murray 1931333SM

BOLT, Carriage, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

0100

Murray 1960684SM

NUT, Hex KEPS, 5/16-18
(Superseded to 703222)

$6.49

$

In Stock, only 2 left!

0

0110

Murray 7035744YP

KNOB, Wing, 5/16-18
(Superseded to 703065)

$7.49

$

In Stock, Qty 20+

0

0120

Murray 1750299YP

BOLT, Carriage, Curved Head, 5/16-18 x 3-1/4
(Superseded to 703168)

$4.49

$

Usually ships in 2-12 days

0

0135

Murray 7090391SM

WASHER, Internal Tooth, 5/16
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

0140

Murray 1920397SM

NUT, Hex Lock, ESNA LIGHT, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0150

Murray 1678392SM

SPACER, 1/4 ID x 3/8 OD x 5/16
(Superseded to 703137)

$7.49

$

In Stock, only 2 left!

0

0160

Murray 1921962SM

CAPSCREW, Hex Head, 1/4-20 x 1-3/4, G5
(Superseded to 703586)

$4.99

$

Usually ships in 2-12 days

0

0170

Murray 1739783BNYP

LEVER, Clutch, RH
(Superseded to 1739783AYP)

$29.99

$

In Stock, only 1 left!

0

0180

Murray 1739782BNYP

LEVER, Clutch, LH

$34.99

$

Usually ships in 2-12 days

0

0190

Murray 1733505BMYP

BRACKET, Pivot, Free Hand

$14.99

$

Usually ships in 2-12 days

0

0200

Murray 1736360YP

ROD, Hold Down

$12.99

$

Usually ships in 2-12 days

0

0210

Murray 1733095SM

SPACER, 1/4 ID x 3/8 OD x 3/8

$4.49

$

Usually ships in 2-12 days

0

0230

Murray 1736542YP

SPACER, Stepped
(Superseded to 703223)

$4.49

$

Usually ships in 2-12 days

0

0240

Murray 1750554YP

BOLT, Shoulder, 1/4 x 1-1/4
(Superseded to 1753529YP)

$3.99

$

In Stock, only 1 left!

0

0250

Murray 1933896SM

NUT, Hex Lock, Nylon Insert, 10-24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

0260

Murray 1738124YP

HAND GRIP, Heated
(Superseded to 770002)

$91.99

$

Usually ships in 2-12 days

0

0270

Murray 2820263SM

NUT, Hex, 5/16-24
(Superseded to 703331)

$4.49

$

In Stock, Qty 16

0

0290

Murray 1739290YP

BALL JOINT
(Superseded to 703224)

$23.99

$

In Stock, only 1 left!

0

0300

Murray 1734354SM

ROD, 25-3/8
(Superseded to 704085)

$24.99

$

Usually ships in 2-12 days

0

0310

Murray 1923701SM

CAPSCREW, Hex Head, 3/8-16 x 2, G5
(Superseded to 703589)

$4.49

$

In Stock, Qty 20+

0

0320

Murray 1931277SM

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0

0330

Murray 50786MA

SPRING, 3/4

$5.49

$

Usually ships in 2-12 days

0

0340

Murray 1918266SM

WASHER, 3/8
(Superseded to 703590)

$3.99

$

In Stock, Qty 20+

0

0350

Murray 1919439SM

NUT, Hex Lock, ESNA LIGHT, 3/8-16
(Superseded to 703117)

$3.99

$

In Stock, Qty 20+

0

0390

Murray 1737684YP

BRACKET, Controls

$17.99

$

Usually ships in 2-12 days

0

0400

Murray 1960589SM

SCREW, Round Head Phillips, #10-24 x 3/4

$4.49

$

Usually ships in 2-12 days

0

0410

Murray 1733192SM

KNOB, Speed

$8.99

$

Usually ships in 2-12 days

0

0420

Murray 1933896SM

NUT, Hex Lock, Nylon Insert, 10-24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

0430

Murray 1736836YP

SPEED LEVER
(Superseded to 703047)

$59.99

$

Usually ships in 2-12 days

0

0440

Murray 1502113MA

CABLE, Front Drive

$22.99

$

In Stock, Qty 8

0

0450

Murray 308146MA

BOOT, Spring End Cover

$6.99

$

In Stock, Qty 8

0

0460

Murray 313441MA

BRACKET, Cable Adjusting

$

$

Not available

0470

Murray 1733509SM

ROD & SPRING ASSEMBLY

$86.99

$

Usually ships in 2-12 days

0

0480

Murray 2108360SM

SPRING, Compression, 2-1/4

$5.99

$

In Stock, Qty 10

0

0490

Murray 1927429SM

SCREW, Hex Washer Head, Taptite, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, Qty 11

0

0500

Murray 1931333SM

BOLT, Carriage, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

0510

Murray 1739500BZYP

SUPPORT, Dash
(Superseded to 1739500BMYP)

$57.99

$

Usually ships in 2-12 days

0

0520

Murray 1701011SM

TIE, Self Locking

$5.49

$

In Stock, only 2 left!

0

0540

Murray 1724037SM

RESISTOR BLOCK

$42.99

$

Usually ships in 2-12 days

0

0550

Murray 1931317SM

BOLT, Carriage, Short Neck, 1/4-20 x 3/4, G5
(Superseded to 703101)

$4.49

$

In Stock, only 3 left!

0

0560

Murray 1960685SM

NUT, Hex KEPS, 1/4-20
(Superseded to 703061)

$3.99

$

In Stock, Qty 11

0

0570

Murray 1750773YP

HARNESS, Deflector

$106.99

$

Usually ships in 2-12 days

0

0571

Murray 1750774YP

HARNESS, Heated Grip

$41.99

$

Usually ships in 2-12 days

0

0580

Murray 1739784YP

SWITCH, Heated Hand Grip

$44.99

$

Usually ships in 2-12 days

0

0610

Murray 1739663AYP

BRACKET, Mounting, RH

$16.99

$

Usually ships in 2-12 days

0

0620

Murray 1739664AYP

BRACKET, Mounting, LH
(Superseded to 1739664BMYP)

$23.99

$

Usually ships in 2-12 days

0

0640

Murray 1739483AYP

POD, RH

$35.99

$

Usually ships in 2-12 days

0

0650

Murray 1739484AYP

POD, LH

$

$

Not available

0660

Murray 1739861BZYP

BRACKET, Switch, Heated Hand Grip
(Superseded to 1739861AYP)

$20.99

$

Usually ships in 2-12 days

0

0670

Murray 1933737SM

SCREW, Pan Head Phillips, #10-24 x 5/8

$3.49

$

In Stock, only 2 left!

0

0675

Murray 1751461YP

NUT, Acorn, 10-24

$4.99

$

Usually ships in 2-12 days

0

0700

Murray 1921319SM

WASHER
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

0940

Murray 71071MA

WASHER, Flat
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!
