1695924 - Simplicity 3" Chipper Shredder Hopper & Engine Group (990268) Parts Diagram

3" Chipper Shredder

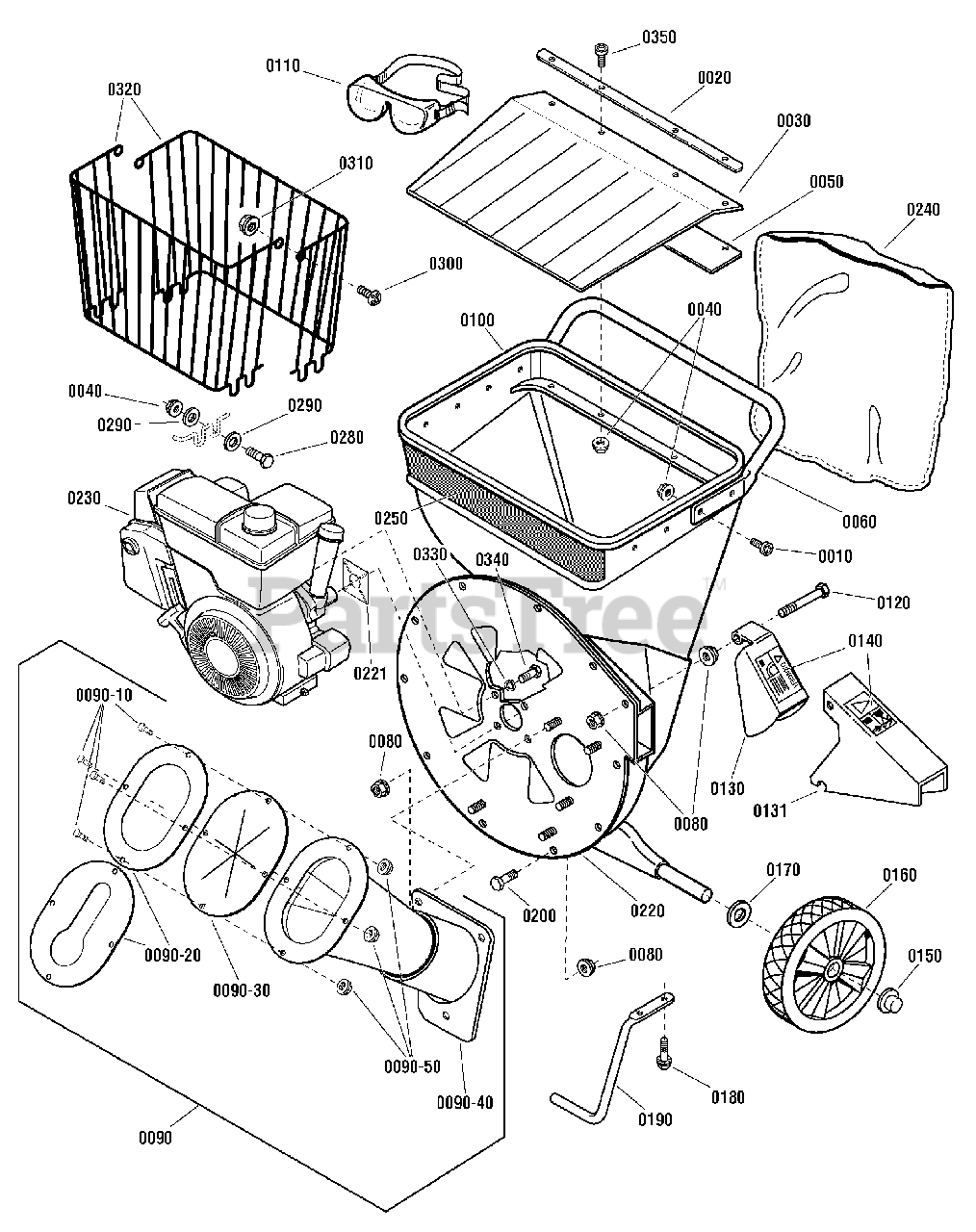

Hopper & Engine Group (990268) Parts Diagram

  • Title

0010

Simplicity 1960507

BOLT, Socket, Button Head, 1/4-20 x 3/4
(Superseded to 1960507SM)

$3.99

$

Usually ships in 2-12 days

0

0020

Simplicity 1098100

RETAINER, Hopper Guard
(Superseded to 1098100SM)

$5.49

$

Usually ships in 2-12 days

0

0030

Simplicity 1095100

GUARD, Hopper
(Superseded to 1095100SM)

$42.99

$

Usually ships in 2-12 days

0

0040

Simplicity 1930642

NUT, Flange, 2 Way Lock, 1/4-20
(Superseded to 703916)

$4.99

$

In Stock, only 4 left!

0

0050

Simplicity 1709603

SUPPORT, Hopper Guard
(Superseded to 1709603SM)

$55.99

$

Usually ships in 2-12 days

0

0060

Simplicity 3621100

HANDLE
(Superseded to 1729181SM)

$46.99

$

Usually ships in 2-12 days

0

0080

Simplicity 1931277

NUT, Whiz, 5/18-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0090

Simplicity 1753576

CHIPPER CONE ASSEMBLY, Metal, Oval

Note: (Domestic Models Only)

$146.99

$

Usually ships in 2-12 days

0

0090

Simplicity 1753584

CHIPPER CONE ASSEMBLY, Metal, Keyhole

Note: CE Models Only

$

$

Not available

0090-10

Simplicity 1753577

CAPSCREW, Hex Head, 1/4 x 3/4, G5

$

$

Not available

0090-20

Simplicity 1753578

PANEL, Cone, Top Flange, Oval

Note: (Domestic Models Only)

$

$

Not available

0090-20

Simplicity 1753579

PANEL, Cone, Top Flange, Keyhole

Note: (CE Models Only)

$

$

Not available

0090-30

Simplicity 1753585

COVER, Cone Flap

$

$

Not available

0090-40

Simplicity 1753586

CONE ASSEMBLY

$

$

Not available

0090-50

Simplicity 1753587

NUT, Hex Flange Top Lock, 1/4-20

$

$

Not available

0100

Simplicity 1753588

HOPPER, Black

Note: * 1709469 = Prev. RED #0100

$

$

Not available

0110

Simplicity 2005612

SAFETY GOGGLES
(Superseded to 1729013SM)

$

$

Not available

0120

Simplicity 1926106

CAPSCREW, Hex, 5/16-18 x 3-1/4, G5
(Superseded to 1926106SM)

$3.99

$

Usually ships in 2-12 days

0

0130

Simplicity 3685100

DEFLECTOR
(Superseded to 1729194SM)

Note: (Domestic Models Only)

$41.99

$

Usually ships in 2-12 days

0

0131

Simplicity 1709556

DEFLECTOR, Fixed
(Superseded to 1709556SM)

Note: (CE Models Only)

$

$

Not available

0140

Simplicity 5001612

DECAL, Danger
(Superseded to 1729207SM)

$17.99

$

Usually ships in 2-12 days

0

0150

Simplicity 1960519

PUSHNUT, 1/2
(Superseded to 703179)

$3.49

$

Usually ships in 2-12 days

0

0160

Simplicity 1753591

WHEEL & TIRE ASSEMBLY, 11 x 1-3/4

$

$

Not available

0170

Simplicity 1924361

WASHER, Plain, 17/32 x 1-1/4 x 5/64
(Superseded to 703451)

$4.49

$

In Stock, only 3 left!

0

0180

Simplicity 1928635

SCREW, Taptite, 3/8-16 x 1-1/4
(Superseded to 1928635SM)

$3.49

$

Usually ships in 2-12 days

0

0190

Simplicity 1713099

KICKSTAND ROD
(Superseded to 1713099SM)

$57.99

$

Usually ships in 2-12 days

0

0200

Simplicity 1925205

CAPSCREW, HEX, 5/16-18 x 5/8
(Superseded to 703822)

$4.49

$

In Stock, only 2 left!

0

0220

Simplicity 1713281

ENGINE PLATE ASSEMBLY
(Superseded to 1714085SM)

$159.99

$

Usually ships in 2-12 days

0

0221

Simplicity 1753589

ADAPTER PLATE

Note: (14.5 Gross TP Models Only)

$

$

Not available

0230

Simplicity 20S212-0112-F1

* ENGINE, 14.5 Gross TP Briggs & Stratton Horizontal, OHV 305cc

Note: (Engine Model: 20S212-0112-F1)

$

$

Not available

0230

Simplicity 205312-0236-B1

* ENGINE, 14.5 Gross TP Briggs & Stratton Horizontal, OHV 305cc

Note: (Engine Model: 205312-0236-B1)

$

$

Not available

0230-10

Simplicity 1709480

* BASE PLATE, Engine

Note: (Not Shown)

$

$

Not available

0230-20

Simplicity 1713200

* SPACER, Briggs Engine
(Superseded to 1686607SM)

Note: (Not Shown)

$

$

Not available

0230-30

Simplicity 1713201

* PLATE, Kickstand, Briggs Engine
(Superseded to 1686608SM)

Note: (Not Shown)

$

$

Not available

0230-40

Simplicity 1713203

* PLATE, Kickstand, BRIGGS Engine, 14.5TP

Note: (Not Shown)

$

$

Not available

0230-50

Simplicity 695568

* MUFFLER GUARD (9060140)

Note: (Not Shown)

$

$

Not available

0240

Simplicity 1709403

COLLECTION BAG, 24" x 36"
(Superseded to 1709403SM)

$81.99

$

Usually ships in 2-12 days

0

0250

Simplicity 1753590

DECAL, Earthquake, Dash

$

$

Not available

0280

Simplicity 1921960

CAPSCREW, Hex, 1/4-20 x 1, G5
(Superseded to 1921960SM)

Note: (CE Models Only)

$3.49

$

In Stock, only 2 left!

0

0290

Simplicity 1960151

WASHER, Plain 1/4 x 1-1/4 x 5/64
(Superseded to 703136)

$3.99

$

Usually ships in 2-12 days

0

0300

Simplicity 1918249

SCREW, Truss Head, 5/16-18 x 3/4
(Superseded to 1918249SM)

Note: (CE Models Only)

$4.99

$

Usually ships in 2-12 days

0

0310

Simplicity 1927557

NUT, Flange, Whiz Lock, 5/16-18
(Superseded to 703330)

Note: (CE Models Only)

$4.99

$

In Stock, Qty 9

0

0320

Simplicity 1709561

HOPPER HALF, Upper, Wire Form
(Superseded to 1709561SM)

Note: (CE Models Only)

$72.99

$

Usually ships in 2-12 days

0

0330

Simplicity 1917356

LOCKWASHER, 5/16
(Superseded to 703116)

Note: (CE Models Only)

$3.49

$

In Stock, Qty 20+

0

0340

Simplicity 1921515

CAPSCREW, Hex Head, 5/16-24 x 3/4
(Superseded to 1921515SM)

$3.99

$

Usually ships in 2-12 days

0

0350

Simplicity 1960506

BOLT, Socket Button Head, 1/4-20 x 7/8
(Superseded to 704034)

$5.49

$

In Stock, only 1 left!

0
