1695931 - Brute 29" Snow Thrower, 14.5 Gross TP (2010) Wheels & Tires Group Parts Diagram

29" Snow Thrower, 14.5 Gross TP

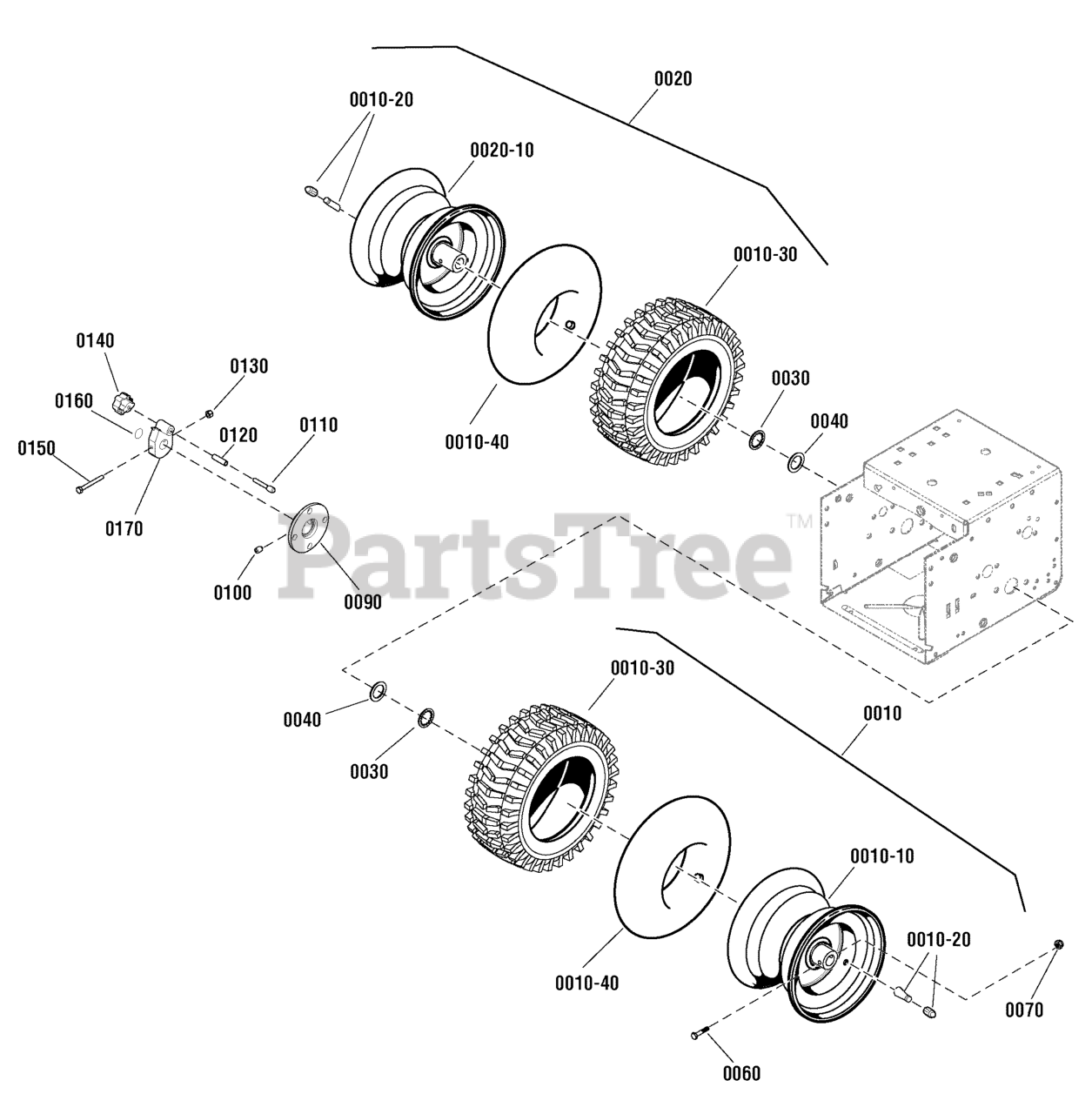

Wheels & Tires Group Parts Diagram

  • Title

0010

Murray 1735355YP

WHEEL & TIRE ASSEMBLY, 16 X 6.50-8, LH

Note: (Includes Ref. Nos. 0010-10, 0010-20, & 0010-30)

$182.99

$

Usually ships in 2-12 days

0

0010-10

* WHEEL, Rim, LH

$

$

Not available

0010-20

Murray 2172353SM

VALVE STEM & CAP
(Superseded to 024373MA)

$

$

Not available

0010-30

Murray 1727075SM

TIRE, X-Trac, 16 x 6.50-8
(Superseded to 1751301YP)

$101.99

$

Usually ships in 2-12 days

0

0010-40

Murray 2164247SM

TUBE, Tire, 16 x 6-1/2 - 8

$40.99

$

In Stock, only 1 left!

0

0020

Murray 1735356YP

WHEEL & TIRE ASSEMBLY, 16 X 6.50-8, RH

Note: (Includes Ref. Nos. 0020-10, 0010-20, & 0010-30)

$173.99

$

Usually ships in 2-12 days

0

0020-10

* WHEEL, Rim, RH

$

$

Not available

0030

Murray 1657528SM

RING, Retaining

$4.49

$

In Stock, Qty 20+

0

0040

Murray 712120MA

WASHER, Flat, 3/4

$4.99

$

In Stock, only 2 left!

0

0060

Murray 577015MA

BOLT, Hex, 1/4-20 x 1-3/4

$4.99

$

In Stock, Qty 9

0

0070

Murray 15X145MA

NUT, Hex Nylock, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0090

Murray 1501032EMA

DISC, Wheel Lock

$32.99

$

Usually ships in 2-12 days

0

0100

Murray 2001066MA

SCREW, Hex, 3/8-16 x 1/2

$5.49

$

In Stock, only 2 left!

0

0110

Murray 1501856YZMA

PIN, Wheel Lock

$15.99

$

In Stock, only 3 left!

0

0120

Murray 164X34MA

SPRING, Compression

$5.99

$

In Stock, only 2 left!

0

0130

Murray 1920397SM

NUT, Hex Lock, ESNA Light, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0140

Murray 1501855MA

KNOB, Wheel Lock

$13.99

$

In Stock, only 1 left!

0

0150

Murray 73839MA

CAPSCREW, Hex Head, 1/4-20 x 2-1/4

$5.49

$

In Stock, Qty 9

0

0160

Murray 48X5600MA

DECAL, Wheel Lock

$14.99

$

Usually ships in 2-12 days

0

0170

Murray 1501857MA

HUB, Wheel Lock

$34.99

$

In Stock, only 3 left!

0
