1695939 - Snapper Dozer Blade for 48" Mower 48" Snow Blade (1695939) Parts Diagram

Dozer Blade for 48" Mower

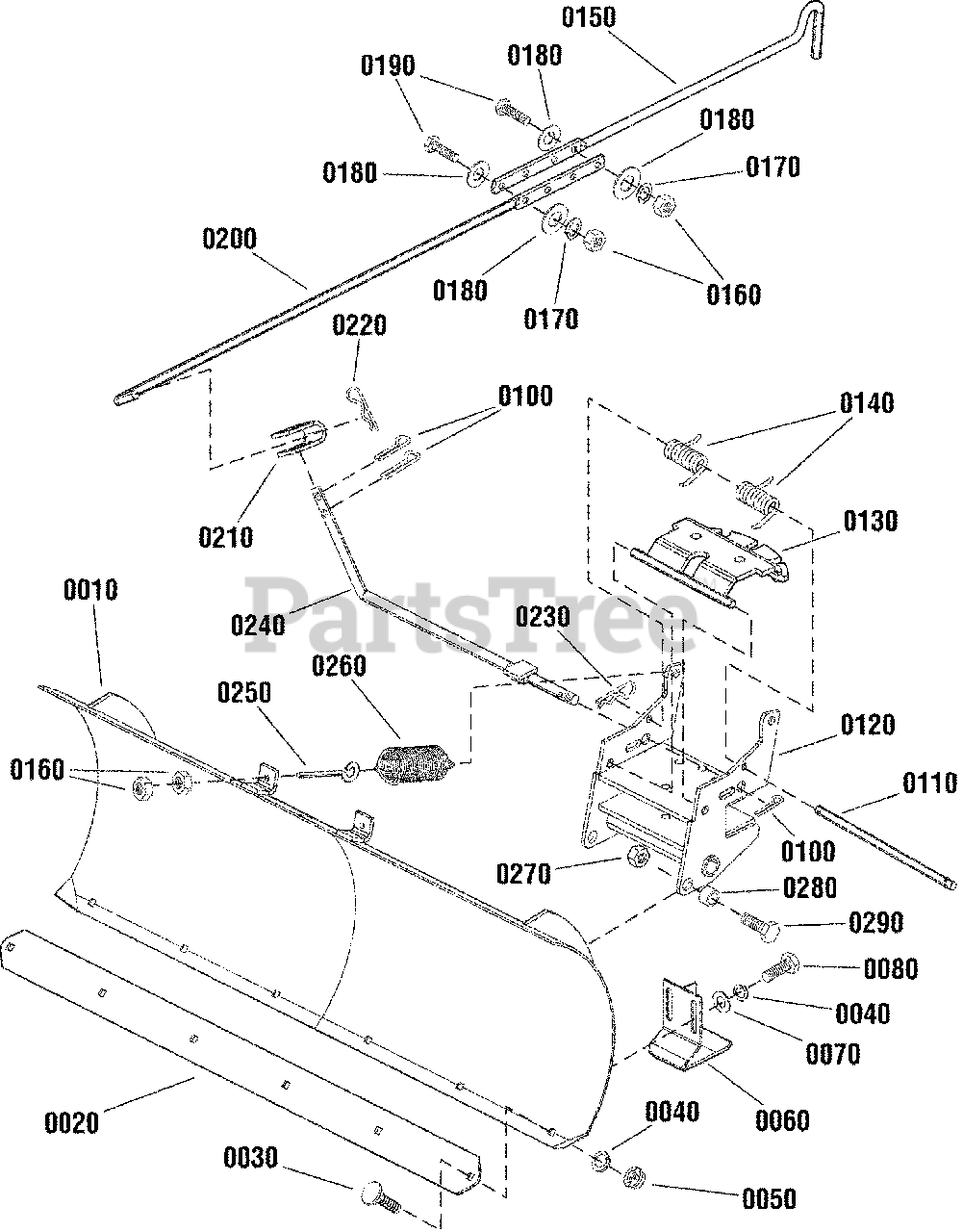

48" Snow Blade (1695939) Parts Diagram

  • Title

0010

Snapper 1752890AYP

BLADE, Weldment 48"

$1196.99

$

Usually ships in 2-12 days

0

0020

Snapper 1752895A

PLATE, Wear
(Superseded to 1752895AYP)

$

$

Not available

0030

Snapper 1931350

BOLT, Carriage 3/8-16 X 1.0
(Superseded to 703815)

$4.49

$

In Stock, Qty 5

0

0040

Snapper 1916965

WASHER, Lock 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 11

0

0050

Snapper 1916950

NUT, Hex 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 12

0

0060

Snapper 2107106A

SHOE, Skid
(Superseded to 2107106ASM)

$68.99

$

In Stock, Qty 5

0

0070

Snapper 1924940

WASHER, Flat 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

0080

Snapper 1921965

CAPSCREW, HexHead 3/8-16 X .75
(Superseded to 703237)

$4.99

$

Usually ships in 2-12 days

0

0100

Snapper 1918452

PIN, Cotter 1/8 X 1
(Superseded to 703795)

$5.99

$

Usually ships in 2-12 days

0

0110

Snapper 1721051

ROD, Latch Plate
(Superseded to 1721051SM)

$7.99

$

Usually ships in 2-12 days

0

0120

Snapper 1721043A

FRAME ASSEMBLY, Pivot
(Superseded to 1721043ASM)

$826.99

$

Usually ships in 2-12 days

0

0130

Snapper 1721048A

LATCH, Plate
(Superseded to 1721048ASM)

$182.99

$

Usually ships in 2-12 days

0

0140

Snapper 1723938

SPRING, Torsion
(Superseded to 1723938SM)

$6.49

$

Usually ships in 2-12 days

0

0150

Snapper 1713483A

HANDLE, Spout Control
(Superseded to 1713483ASM)

$113.99

$

Usually ships in 2-12 days

0

0160

Snapper 1917372

NUT, Hex 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

0170

Snapper 1917356

LOCKWASHER 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0180

Snapper 1919326

WASHER, Flat 3/8
(Superseded to 703332)

$4.49

$

In Stock, Qty 17

0

0190

Snapper 1921977

CAPSCREW 3/8-18 X 1.25
(Superseded to 1921977SM)

$4.99

$

In Stock, Qty 12

0

0200

Snapper 1721056

ROD, Pivot Control
(Superseded to 1721056SM)

$67.99

$

Usually ships in 2-12 days

0

0210

Snapper 1721058

Pin, Clevis
(Superseded to 1721058BMYP)

$38.99

$

Usually ships in 2-12 days

0

0220

Snapper 1918196

PIN, Spring .091 X 1.88
(Superseded to 5025210YP)

$3.99

$

In Stock, only 2 left!

0

0230

Snapper 1960074

CLIP - SPRING .093 X 1.62
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

0240

Snapper 1721053

ROD, Pivot
(Superseded to 1721053SM)

$57.99

$

Usually ships in 2-12 days

0

0250

Snapper 1675198

EYE BOLT, 5/16-18
(Superseded to 1675198SM)

$7.49

$

Usually ships in 2-12 days

0

0260

Snapper 2101126

SPRING, Extension
(Superseded to 2101126SM)

$46.99

$

In Stock, only 1 left!

0

0270

Snapper 1922134

NUT, Hex Lock 1/2-13
(Superseded to 703894)

$3.49

$

In Stock, Qty 10

0

0280

Snapper 1725601

SPACER
(Superseded to 1725601SM)

$19.99

$

Usually ships in 2-12 days

0

0290

Snapper 1920328

CAPSCREW, Hex Head 1/2-13 X 1
(Superseded to 703571)

$4.49

$

In Stock, only 1 left!

0
