1695946 - Murray 46" Grass Mulcher Kit 46" & 52" Mulcher kit Parts Diagram

46" Grass Mulcher Kit

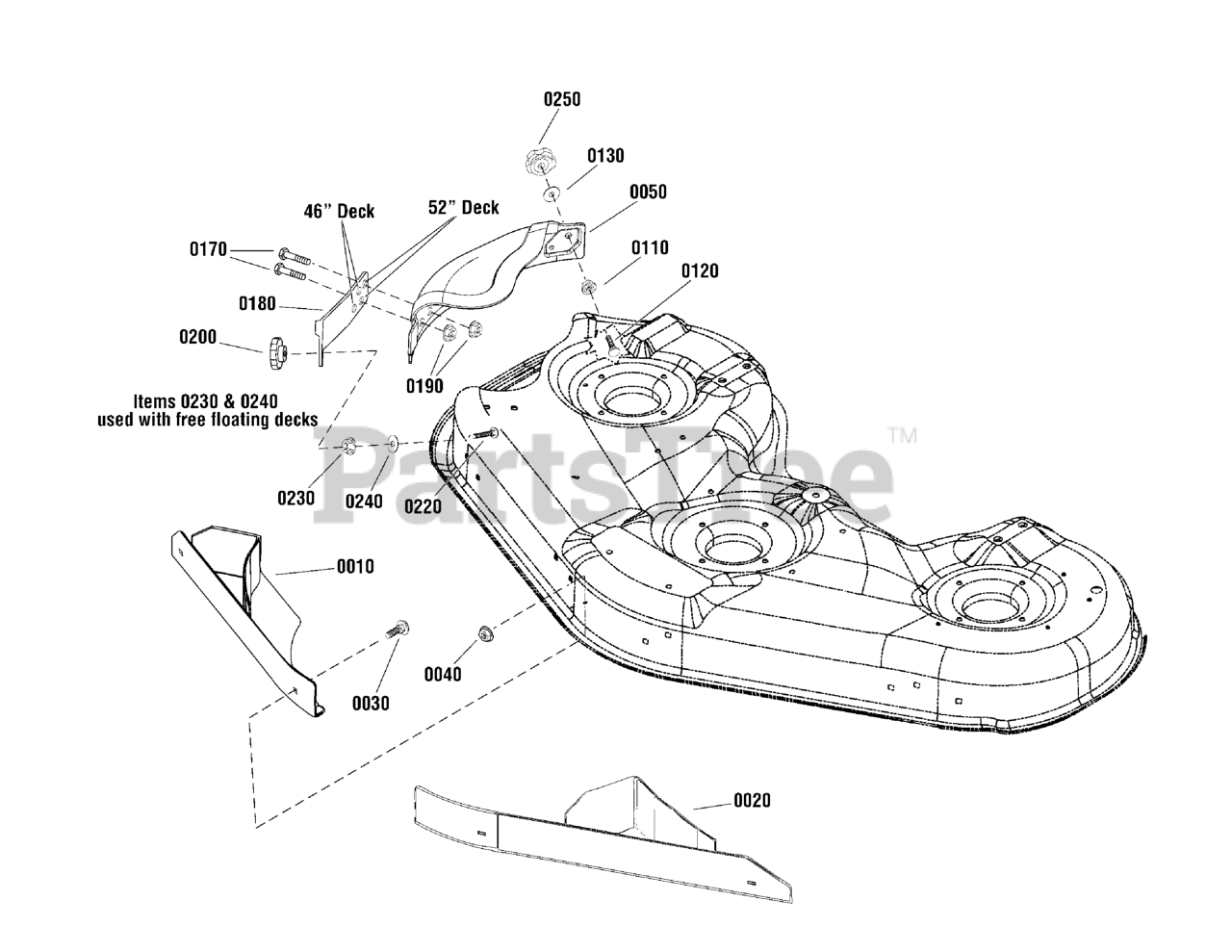

46" & 52" Mulcher kit Parts Diagram

  • Title

0010

Murray 1737317AYP

BAFFLE ASSEMBLY, 46 MULCHING, RH

Note: (46" Mower Deck Only)

$

$

Not available

0010

Murray 1737319AYP

BAFFLE ASSEMBLY, 52 MULCHING, RH
(Superseded to 1737319BZYP)

Note: (52" Mower Deck Only)

$100.99

$

Usually ships in 2-12 days

0

0020

Murray 1737316AYP

BAFFLE ASSEMBLY, 46 MULCHING, LH

Note: (46" Mower Deck Only)

$

$

Not available

0020

Murray 1737318AYP

BAFFLE ASSEMBLY, 52 MULCHING, LH

Note: (52" Mower Deck Only)

$

$

Not available

0030

Murray 1931332SM

BOLT, Round Head, Short Neck 5/16-18 X 5/8
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

0040

Murray 703330

NUT, Hex Flange Whiz-Lock, 5/16-18

$4.99

$

In Stock, Qty 9

0

0050

Murray 1751018YP

COVER, Mulching

$39.99

$

In Stock, only 3 left!

0

0110

Murray 703061

NUT, 1/4-20, Keps, Conical Washer

$3.49

$

In Stock, only 3 left!

0

0120

Murray 1960698SM

BOLT, Round Head, Short Neck, 1/4-20 X 1
(Superseded to 703584)

$3.99

$

In Stock, only 3 left!

0

0130

Murray 7091627YP

WASHER, Flat, 9/32 X 1 X 1/8

$4.99

$

In Stock, Qty 11

0

0170

Murray 1921332SMYP

CAPSCREW, Hex Head, 5/16-18 X 3/4

$

$

Not available

0180

Murray 7301167BMYP

LATCH, Mulch Cover

$

$

Not available

0180

Murray 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 17

0

0200

Murray 7101022YP

KNOB, Flutted

$7.49

$

In Stock, Qty 20+

0

0220

Murray 7091169YP

BOLT, Carriage, Short Neck, 5/16 x 1 1/8
(Superseded to 704002)

$4.49

$

Usually ships in 2-12 days

0

0230

Murray 015X79MAYP

NUT, Flange, 5/16 - 18

$

$

Not available

0240

Murray 1919384SM

WASHER, 3/8

$5.49

$

In Stock, only 2 left!

0

0250

Murray 1738295YP

KNOB, ESNA, 1/4-20

$7.49

$

In Stock, only 1 left!

0

--

Murray 1695946YP

KIT, Grass Mulcher, 46"
(Superseded to 1696910)

$218.99

$

Usually ships in 2-12 days

0

--

Murray 1695947YP

KIT, Grass Mulcher, 52"

$149.99

$

Usually ships in 2-12 days

0
