1695952 - Champion 27" Snow Thrower, 11.5hp, Canada (2010) Auger Drive Group Parts Diagram

27" Snow Thrower, 11.5hp, Canada

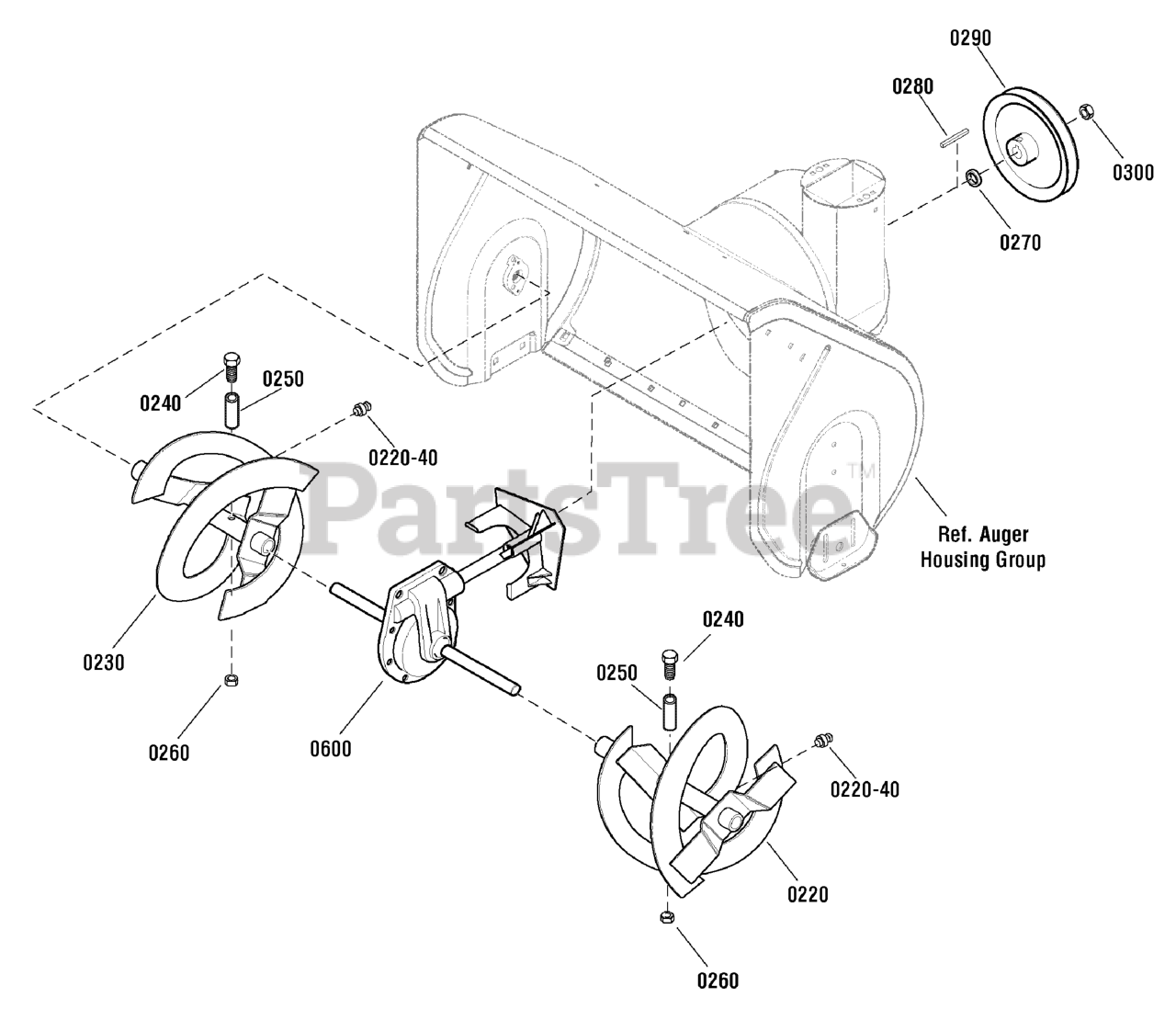

Auger Drive Group Parts Diagram

  • Title

0220

Murray 1738044BCYP

AUGER, 27", LH

Note: (Includes Ref. No. 0220-40)

$176.99

$

Usually ships in 2-12 days

0

0220

Murray 1738042BCYP

AUGER, 30", LH

Note: (Includes Ref. No. 0220-40)

$193.99

$

Usually ships in 2-12 days

0

0230

Murray 1738043BCYP

AUGER, 27", RH

Note: (Includes Ref. No. 0220-40)

$153.99

$

Usually ships in 2-12 days

0

0230

Murray 1738041BCYP

AUGER, 30", RH
(Superseded to 760596E701MA)

Note: (Includes Ref. No. 0220-40)

$353.99

$

Usually ships in 2-12 days

0

0220-40

Murray 10104MA

FITTING, Grease
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0240

Murray 9524MA

CAPSCREW, Hex Head, 1/4-20 x 1-3/4
(Superseded to 703057)

$5.99

$

In Stock, Qty 20+

0

0250

Murray 3943MA

SPACER, Sleeve, 1/4 x 1/2
(Superseded to 703058)

$7.49

$

In Stock, Qty 16

0

0260

Murray 73826MA

NUT, Hex Centerlock, 1/4-20
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

0270

Murray 1501158MA

SPACER, Friction Pulley

$4.99

$

In Stock, only 2 left!

0

0280

Murray 2001022MA

KEY,Square, 3/16 x 3/4

$4.49

$

In Stock, Qty 11

0

0290

Murray 583146MA

PULLEY

$

$

Not available

0300

Murray 15X112MA

NUT, Hex Flange Serrated, 1/2-20

$5.49

$

Usually ships in 2-12 days

0

0600

Murray 1738603YP

GEAR CASE ASSEMBLY, 27

Note: (Use on 27" Models)

$712.99

$

Usually ships in 2-12 days

0

0600

Murray 1738606YP

GEAR CASE ASSEMBLY, 30

Note: (Use on 30" Models)

$712.99

$

Usually ships in 2-12 days

0

--

Murray 1501216MA

SHEAR BOLT KIT

Note: (Includes Ref. Nos. 0240, 0250 & 0260)

$4.99

$

In Stock, Qty 20+

0
