1695960 - Murray 54" Mower Deck (2011) 54" Mower Deck - Housing & Arbor Group Parts Diagram

54" Mower Deck

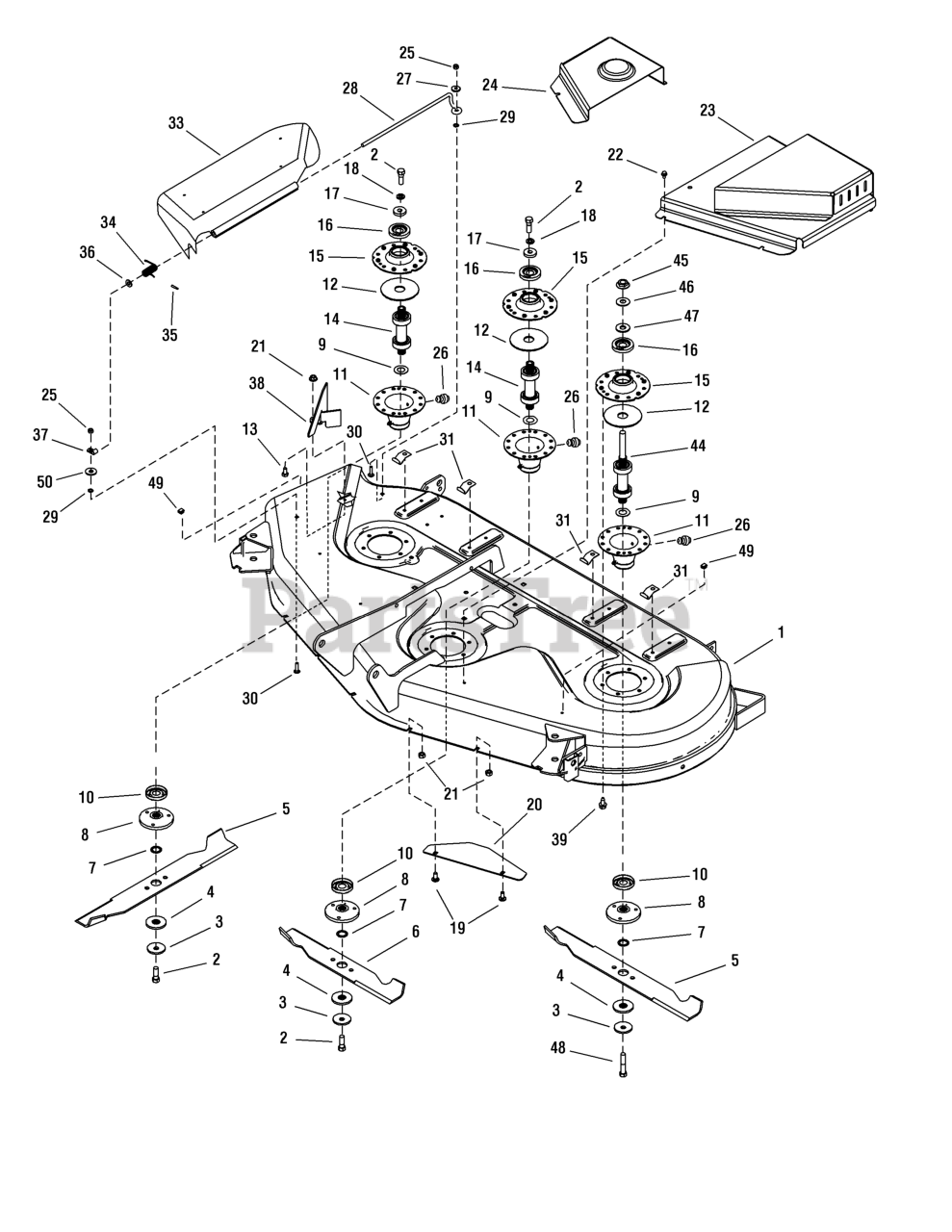

54" Mower Deck - Housing & Arbor Group Parts Diagram

  • Title

1

Murray 1727445BTYP

HOUSING ASSEMBLY, 54" Mower
(Superseded to 1687676YP)

$

$

Not available

2

Murray 2823471SM

CAPSCREW, Hex Head 7/16-14 x 1-1/4 G8
(Superseded to 703579)

$4.99

$

In Stock, Qty 20+

0

3

Murray 1656916SM

WASHER, Spring

$7.99

$

In Stock, Qty 20+

0

4

Murray 1679711SM

WASHER, Splined

$7.99

$

In Stock, Qty 20+

0

5

Murray 1736043AYP

BLADE, Mower 20.56

$30.99

$

In Stock, Qty 20+

0

6

Murray 1736044AYP

BLADE, Mower 16.00

$25.99

$

In Stock, Qty 20+

0

7

Murray 1657528SM

RETAINING RING, Self Locking

$4.49

$

In Stock, Qty 20+

0

8

Murray 1655777SM

ADAPTER, Blade

$27.99

$

In Stock, Qty 20+

0

9

Murray 1700230SM

WASHER, Shim

$5.49

$

In Stock, Qty 20+

0

10

Murray 1700229SM

SHIELD, Bearing

$11.99

$

In Stock, Qty 20+

0

11

Murray 1703273ASM

HOUSING & FITTING ASSEMBLY, Lower

Note: (Incl. Ref. 26)

$36.99

$

Usually ships in 2-12 days

0

12

Murray 1707335SM

GASKET, Foam

$5.99

$

In Stock, Qty 20+

0

13

Murray 1925205SM

CAPSCREW, Hex Head 5/16-18 x 5/8 G5
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

14

Murray 1676278SM

ARBOR SHAFT & BEARINGS ASSEMBLY

$

$

Not available

15

Murray 1655729ASM

HOUSING, Arbor Top

$14.99

$

In Stock, Qty 20+

0

16

Murray 1657969SM

SHIELD, Bearing, Mower Arbor, Upper

$7.99

$

In Stock, Qty 20+

0

17

Murray 1933263SM

WASHER
(Superseded to 703990)

$6.99

$

In Stock, Qty 12

0

18

Murray 1918199SM

LOCKWASHER, Spring
(Superseded to 704007)

$4.49

$

In Stock, Qty 7

0

19

Murray 1931333SM

BOLT, Carriage, 5/16-18 x 3/4 G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

20

Murray 1720962ASM

BAFFLE, Front

$14.99

$

In Stock, only 2 left!

0

21

Murray 1960684SM

NUT, Hex KEPS 5/16-18 Conical Washer
(Superseded to 703222)

$6.49

$

In Stock, only 2 left!

0

22

Murray 1927428SM

SCREW, Hex Washer Head Taptite 1/4-20 x 3/8
(Superseded to 703583)

$4.99

$

In Stock, Qty 20+

0

23

Murray 1720621BTYP

COVER ASSEMBLY, Upper

$165.99

$

Usually ships in 2-12 days

0

24

Murray 1733373BTYP

COVER, Arbor R.H. 54"

$60.99

$

Usually ships in 2-12 days

0

25

Murray 1920397SM

NUT, Hex Lock ESNA Light 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

26

Murray 1704314SM

FITTING, Lube, 1/4 Drive
(Superseded to 703907)

Note: (Included with Ref. No. 11)

$5.49

$

In Stock, Qty 20+

0

27

Murray 1960353SM

WASHER, 1/4
(Superseded to 703229)

$4.49

$

In Stock, Qty 20+

0

28

Murray 1706709SM

ROD, Deflector

$8.99

$

In Stock, Qty 15

0

29

Murray 1960518SM

NUT, Push
(Superseded to 703826)

$3.49

$

In Stock, Qty 18

0

30

Murray 1960698SM

CARRIAGE BOLT, 1/4-20 x 1 G5
(Superseded to 703584)

$3.99

$

In Stock, Qty 10

0

31

Murray 1720623SM

CLIP, Spring

$8.99

$

In Stock, Qty 5

0

33

Murray 1705449SM

DEFLECTOR

$125.99

$

In Stock, Qty 10

0

34

Murray 7101082SM

SPRING, Torsion, Chute
(Superseded to 1759750YP)

$8.99

$

In Stock, Qty 11

0

35

Murray 1723323SM

CAP, Spring End

$4.99

$

In Stock, Qty 15

0

36

Murray 1919326SM

WASHER, 5/16

$4.49

$

Usually ships in 2-12 days

0

37

Murray 1704873SM

CLAMP, Wire, 5/16 Diameter

$4.49

$

In Stock, Qty 20+

0

38

Murray 1724976ASM

BAFFLE, Discharge

$73.99

$

In Stock, only 1 left!

0

39

Murray 1664847SM

CAPSCREW, Hex Washer Head Taptite 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

44

Murray 1676278SM

ARBOR SHAFT & BEARINGS ASSEMBLY, 40"

$

$

Not available

45

Murray 1714419SM

NUT, Hex Flange 9/16-18

$5.99

$

In Stock, Qty 20+

0

46

Murray 1713675SM

WASHER, Bellville .56ID x 1.34 OD x .05T

$4.49

$

In Stock, Qty 20+

0

47

Murray 1918431SM

WASHER, 1/2
(Superseded to 704011)

$4.49

$

In Stock, Qty 10

0

48

Murray 2827120SM

CAPSCREW, Hex Head 7/16-14 x 2-1/4 G8

$

$

Not available

49

Murray 1705115SM

PLUG, Hole

$4.49

$

In Stock, Qty 11

0

50

Murray 1960353SM

WASHER, 1/4
(Superseded to 703229)

$4.49

$

In Stock, Qty 20+

0
