1695968 - Murray 52" Mower Deck (2011) 52" Mower Deck - Housing, Arbors & Blades Group Parts Diagram

52" Mower Deck

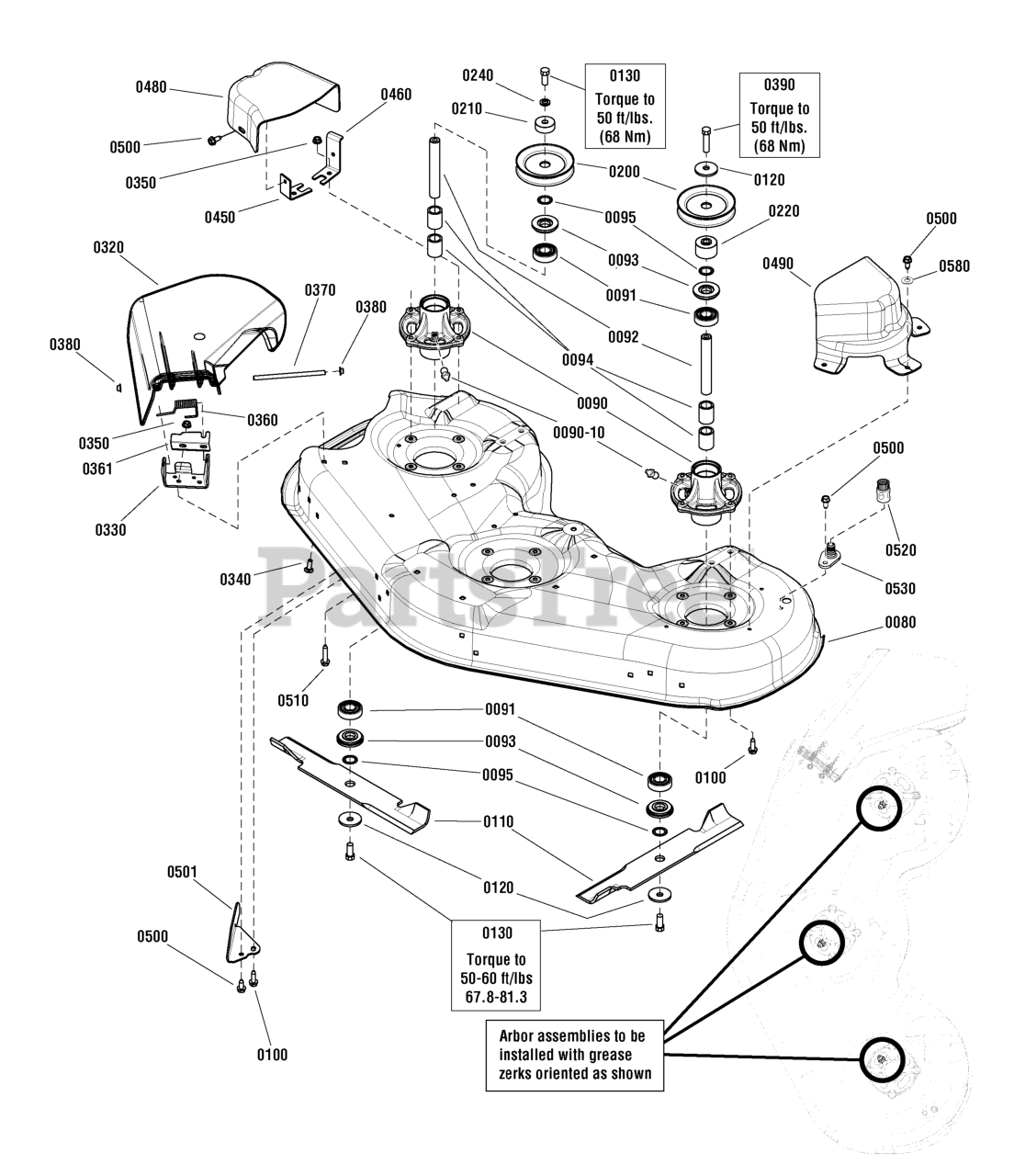

52" Mower Deck - Housing, Arbors & Blades Group Parts Diagram

  • Title

0080

Murray 1687599YP

HOUSING, Mower, 52"

$826.99

$

Usually ships in 2-12 days

0

0090

Murray 1735573YP

HOUSING, Spindle
(Superseded to 84003654)

$43.99

$

In Stock, only 4 left!

0

0090-10

Murray 1704314SM

FITTING, Grease
(Superseded to 703907)

Note: (Included in Ref. 0090)

$4.99

$

In Stock, Qty 20+

0

0091

Murray 1735399YP

BEARING, Ball, 20mm

$9.99

$

In Stock, Qty 20+

0

0092

Murray 1735326YP

SHAFT, Spindle
(Superseded to 1760276YP)

$27.99

$

In Stock, Qty 8

0

0093

Murray 1735323YP

SHIELD, Arbor
(Superseded to 84003166)

$6.99

$

In Stock, Qty 20+

0

0094

Murray 1735328YP

SPACER, Bearing

$6.49

$

In Stock, Qty 20+

0

0095

Murray 1960766YP

RING, Self Lock

$4.49

$

In Stock, Qty 20+

0

0100

Murray 1960373SM

SCREW, Hex Washer Head, Taptite, 5/16-18 x 1
(Superseded to 704146)

$3.99

$

In Stock, Qty 20+

0

0110

Murray 1737252AYP

BLADE, Mower, 52"
(Superseded to 1687440YP)

$

$

Not available

0120

Murray 1656916SM

WASHER, Spring

$7.49

$

In Stock, Qty 20+

0

0130

Murray 1920676SM

CAPSCREW, Hex Head, 7/16-14 X 1

$5.49

$

In Stock, Qty 8

0

0200

Murray 1735733YP

PULLEY, Split

$20.99

$

In Stock, Qty 16

0

0210

Murray 1735579YP

SPACER, Lower Drive

$7.49

$

In Stock, only 2 left!

0

0220

Murray 1736445YP

SPACER, Pulley

$13.99

$

In Stock, only 2 left!

0

0240

Murray 7091301YP

LOCKWASHER, Spring
(Superseded to 704007)

$4.49

$

In Stock, Qty 7

0

0320

Murray 1735447YP

DEFLECTOR, Discharge
(Superseded to 1687750YP)

$37.99

$

In Stock, Qty 15

0

0330

Murray 1737418AYP

HINGE, Deflector

$22.99

$

In Stock, only 1 left!

0

0340

Murray 1931333SM

BOLT, Carriage, Short Neck, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

0350

Murray 1931277SM

NUT, Hex Flange Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0360

Murray 1736364YP

SPRING, Torsion, Deflector

$8.49

$

In Stock, only 1 left!

0

0361

Murray 1737359BMYP

PLATE, Deflector Closeoff

$8.49

$

In Stock, only 3 left!

0

0370

Murray 1736366YP

ROD, Deflector

$11.99

$

Usually ships in 2-12 days

0

0380

Murray 7012542YP

NUT, Push, 5/16
(Superseded to 704028)

$5.49

$

In Stock, Qty 9

0

0390

Murray 1923027SM

CAPSCREW, Hex Head, 7/16-14 x 1-3/4, G5
(Superseded to 703171)

$3.99

$

In Stock, Qty 11

0

0450

Murray 1736518AYP

BRACKET, Belt Cover, Front

$9.49

$

In Stock, only 1 left!

0

0460

Murray 1736519AYP

BRACKET, Belt Cover, Rear

$9.49

$

In Stock, only 1 left!

0

0480

Murray 1735752YP

COVER, Belt, RH

$29.99

$

Usually ships in 2-12 days

0

0490

Murray 1736505YP

COVER, Belt, LH

$42.99

$

In Stock, only 1 left!

0

0500

Murray 1664847SM

SCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0501

Murray 1737279AYP

BAFFLE, Pinchoff

$16.99

$

In Stock, only 1 left!

0

0510

Murray 1930600SM

SCREW, Hex Washer Head, Taptite, 5/16-18 x 1-1/2

$4.99

$

In Stock, Qty 20+

0

0520

Murray 1736898YP

CONNECTOR, Washout Port
(Superseded to 1756246YP)

$15.99

$

In Stock, Qty 5

0

0530

Murray 1735716YP

ADAPTER, Washout Port
(Superseded to 1687721YP)

$13.99

$

Usually ships in 2-12 days

0

0580

Murray 703302

WASHER, Flat, 5/16

$4.49

$

In Stock, Qty 20+

0
