1696024 - Brute 27" Snow Thrower, 11.5 Gross TP (2011) Gear Case Assembly (1753533) Parts Diagram

27" Snow Thrower, 11.5 Gross TP

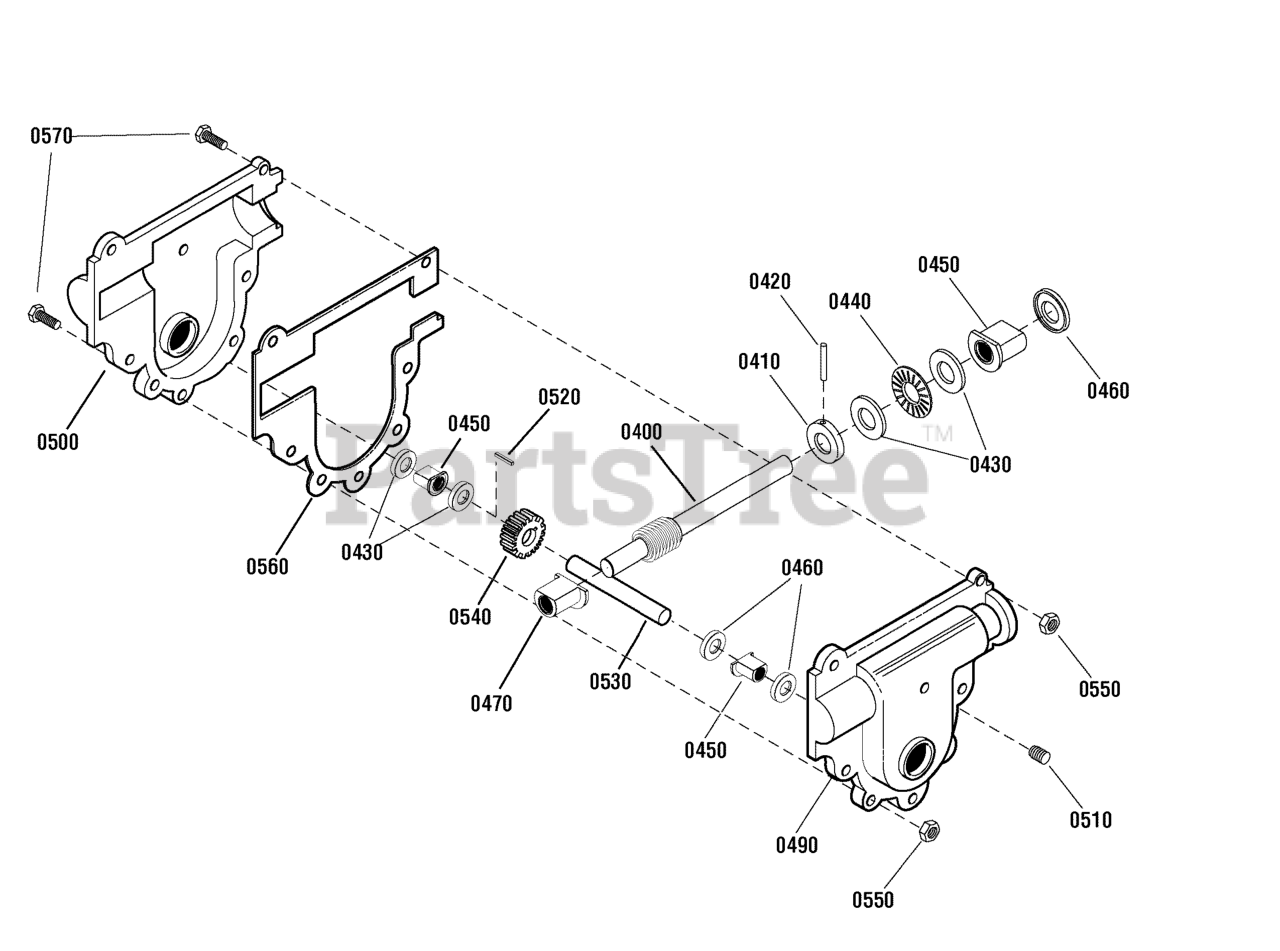

Gear Case Assembly (1753533) Parts Diagram

  • Title

0400

Murray 1751673YP

SHAFT,Impeller

$139.99

$

Usually ships in 2-12 days

0

0410

Murray 580295MA

COLLAR, Thrust

$22.99

$

Usually ships in 2-12 days

0

0420

Murray 454565MA

PIN, Spring

$

$

Not available

0430

Murray 48275MA

WASHER, Thrust

$6.49

$

In Stock, Qty 10

0

0440

Murray 50684MA

BEARING, Roll, 3/4ID x 1-1/4OD

$6.49

$

In Stock, only 3 left!

0

0450

Murray 50304MA

BEARING, Flange, 3/4ID x 1OD

$8.49

$

In Stock, Qty 16

0

0460

Murray 9566MA

SEAL, Oil

$12.99

$

In Stock, Qty 10

0

0470

Murray 50221MA

BEARING, Flange, 1/2ID x 3/4OD

$8.49

$

Usually ships in 2-12 days

0

0490

Murray 10576MA

CASE, Gear, Left

$22.99

$

Usually ships in 2-12 days

0

0500

Murray 10577MA

CASE, Gear, Right

$22.99

$

In Stock, only 1 left!

0

0510

Murray 9344MA

SCREW, Whiz Lock, 3/8-16 x 1/2
(Superseded to 704213)

$5.49

$

In Stock, only 1 left!

0

0520

Murray 431787MA

KEY, Woodruf
(Superseded to 703891)

$4.99

$

In Stock, Qty 20+

0

0530

Murray 1501307MA

SHAFT, Auger Out, 27

$68.99

$

Usually ships in 2-12 days

0

0540

Murray 1752499YP

GEAR, Worm

$58.99

$

Usually ships in 2-12 days

0

0550

Murray 15X143MA

NUT, Flange Lock, 1/4-20

$4.99

$

In Stock, only 4 left!

0

0560

Murray 51279MA

GASKET, Gear Case

$12.99

$

In Stock, only 2 left!

0

0570

Murray 01X169MA

CAPSCREW, 1/4-20 X 3/4

$3.49

$

In Stock, only 1 left!

0
