1696055-01 (CM 741450 H) - Canadiana 29" Snow Thrower, Canada (2012) Traction Drive Group Parts Diagram

29" Snow Thrower, Canada

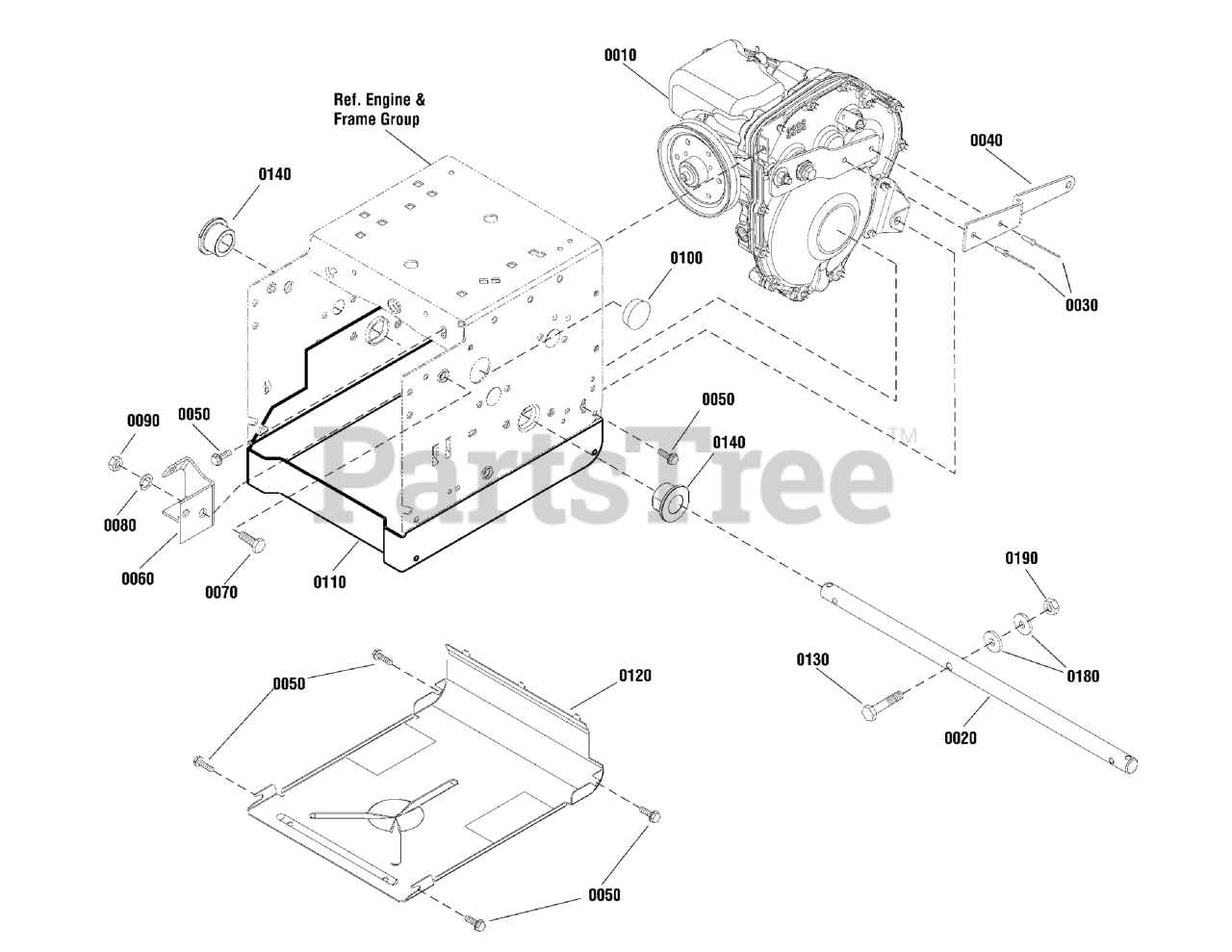

Traction Drive Group Parts Diagram

  • Title

0010

Murray 1733364SM

TRANSMISSION, HydroGear, 314-0410

$997.99

$

Usually ships in 2-12 days

0

0020

Murray 1753028YP

AXLE

$98.99

$

Usually ships in 2-12 days

0

0030

Murray 1960241SM

POP RIVET

$5.49

$

Usually ships in 2-12 days

0

0040

Murray 1501366MA

ARM, Control

$12.99

$

Usually ships in 2-12 days

0

0050

Murray 1927429SM

SCREW, Hex Washer Head, Taptite, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, only 1 left!

0

0060

Murray 1501361MA

BRACKET, Lower Drive
(Superseded to 703236)

$44.99

$

Usually ships in 2-12 days

0

0070

Murray 1921965SM

CAPSCREW, Hex Head, 3/8-16 x 3/4 G5
(Superseded to 703237)

$4.99

$

Usually ships in 2-12 days

0

0080

Murray 1916965SM

LOCKWASHER, Spring, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 9

0

0090

Murray 1917421SM

NUT, Hex Jam, 3/8-16
(Superseded to 703996)

$4.99

$

In Stock, only 4 left!

0

0100

Murray 1501496MA

PLUG

$3.99

$

Usually ships in 2-12 days

0

0110

Murray 1740597AYP

FRAME

$85.99

$

Usually ships in 2-12 days

0

0120

Murray 1740577AYP

PANEL, Bottom

$34.99

$

In Stock, only 1 left!

0

0130

Murray 1921160SM

CAPSCREW, Hex Head, 5/16-18 x 2-1/4, G5

$4.99

$

Usually ships in 2-12 days

0

0140

Murray 1501114MA

BEARING, Ball

$11.99

$

In Stock, only 2 left!

0

0180

Murray 1919381SM

WASHER, 5/16
(Superseded to 703298)

$4.49

$

In Stock, Qty 11

0

0190

Murray 1919438SM

NUT, Hex Lock, ESNA LIGHT, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 13

0
