1696058 - Champion 27" Snow Thrower, 11.5hp, Canada (2011) Controls Group Parts Diagram

27" Snow Thrower, 11.5hp, Canada

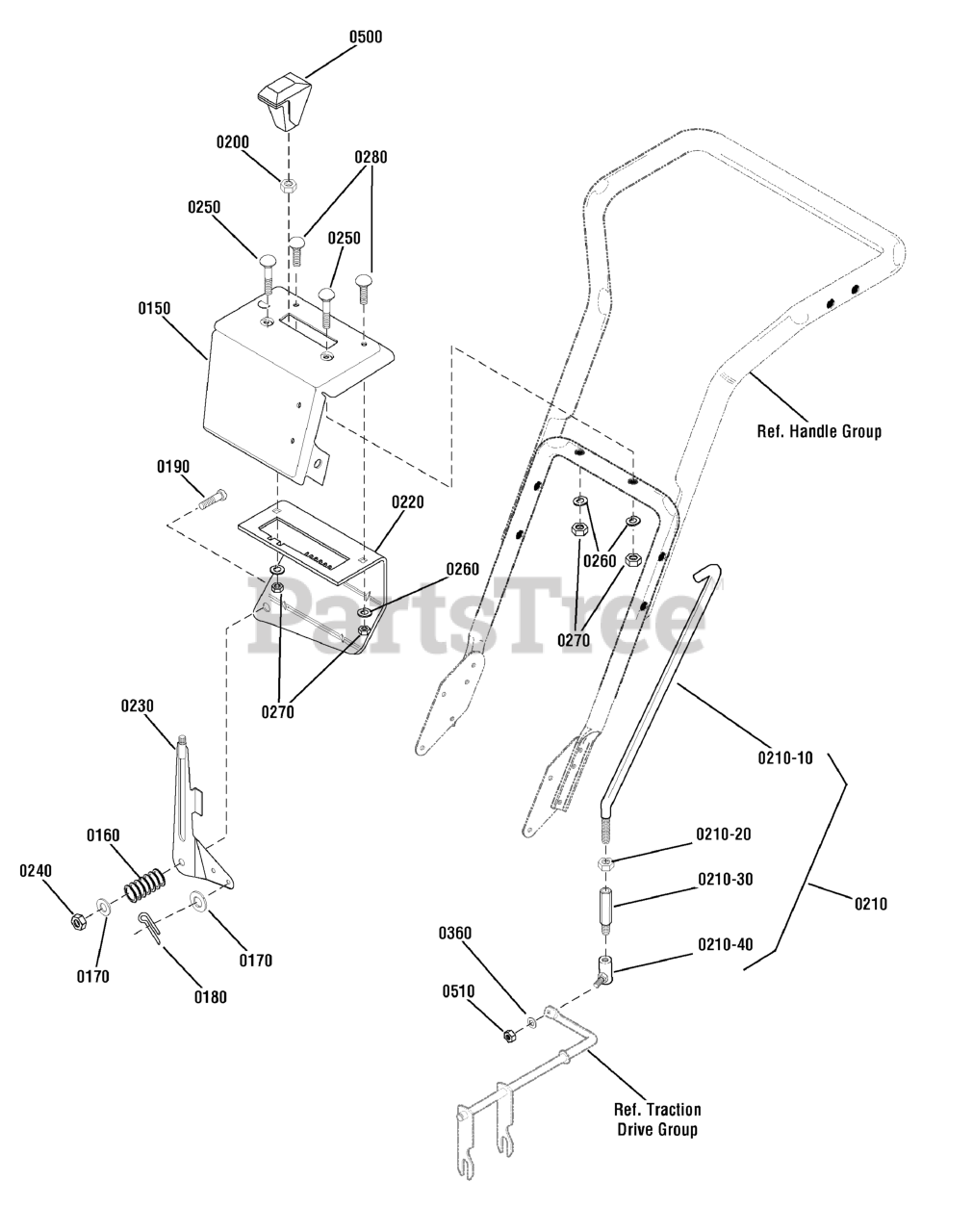

Controls Group Parts Diagram

  • Title

0150

Murray 1741123ZYP

PANEL, Control

$25.99

$

Usually ships in 2-12 days

0

0160

Murray 50786MA

SPRING, 3/4

$5.49

$

Usually ships in 2-12 days

0

0170

Murray 71071MA

WASHER, Flat
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

0180

Murray 71081MA

PIN, Cotter

$3.49

$

Usually ships in 2-12 days

0

0190

Murray 302900MA

CAPSCREW, Hex Head, 5/16-18 x 1-3/4

$4.49

$

Usually ships in 2-12 days

0

0200

Murray 71045MA

NUT, Hex Jam, 3/8-16

$4.99

$

Usually ships in 2-12 days

0

0210

Murray 1741110MA

ROD ASSEMBLY, Speed

Note: (Includes Ref. Nos. 0210-10, 0210-20, 0210-30 & 0210-40)

$36.99

$

Usually ships in 2-12 days

0

0210-10

Murray 1502019MA

ROD, Speed

$58.99

$

Usually ships in 2-12 days

0

0210-20

Murray 71042MA

NUT, Hex, 5/16-24

$4.49

$

Usually ships in 2-12 days

0

0210-30

Murray 6352MA

ADAPTOR, Rod Speed

$95.99

$

Usually ships in 2-12 days

0

0210-40

Murray 50782MA

BALLJOINT

$21.99

$

In Stock, only 1 left!

0

0220

Murray 1741119AYP

BRACKET, Shift Control

$19.99

$

Usually ships in 2-12 days

0

0230

Murray 1741118AYP

LEVER ASSEMBLY, Shift

$27.99

$

Usually ships in 2-12 days

0

0240

Murray 71038MA

NUT, Hex Nylock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 13

0

0250

Murray 1931323SM

BOLT, Carriage, Short Neck, 1/4-20 x 2, G5

$4.49

$

Usually ships in 2-12 days

0

0260

Murray 71059MA

WASHER

$3.99

$

In Stock, only 3 left!

0

0270

Murray 71034MA

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0

0280

Murray 3809MA

BOLT, Carriage, 1/4-20 x 5/8

$3.49

$

Usually ships in 2-12 days

0

0360

Murray 71060MA

WASHER, Splitlock, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0500

Murray 304437MA

GRIP, Lever

$11.99

$

Usually ships in 2-12 days

0

0510

Murray 71042MA

NUT, Hex, 5/16-24

$4.49

$

Usually ships in 2-12 days

0
