1696083 (M 1227 E) - Canadiana 27" Snow Thrower, 11.5 Gross TP (2011) Auger Housing Group Parts Diagram

27" Snow Thrower, 11.5 Gross TP

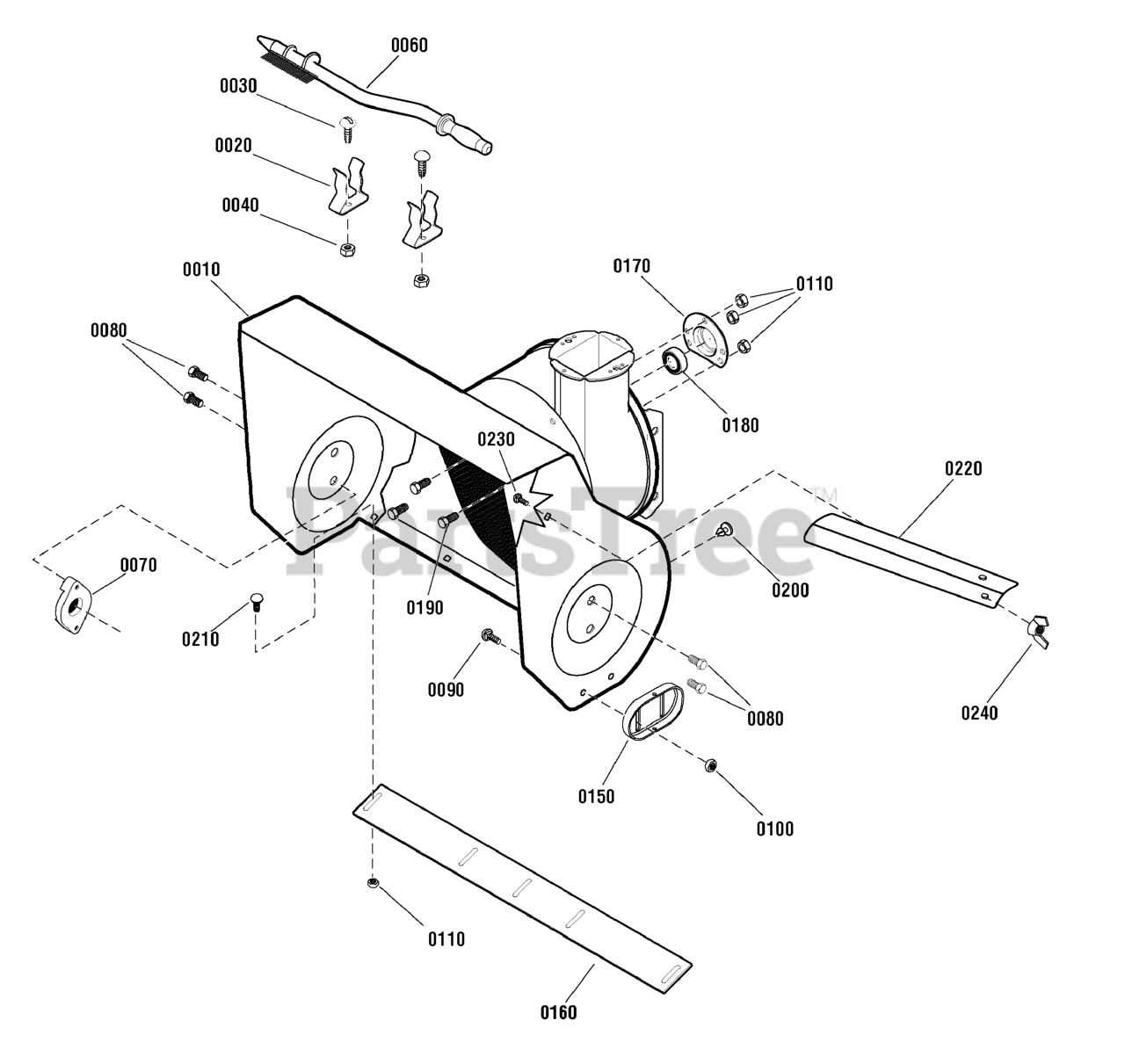

Auger Housing Group Parts Diagram

  • Title

0010

Murray 1750538ZYP

HOUSING, Auger, 27
(Superseded to 1687538YP)

$495.99

$

Usually ships in 2-12 days

0

0020

Murray 1736620YP

CLIP, Retainer

$6.99

$

In Stock, Qty 8

0

0030

Murray 1960569SM

SCREW, Truss Head Torx, #10-24 x 3/8
(Superseded to 706144)

$4.49

$

Usually ships in 2-12 days

0

0040

Murray 7091290SM

NUT, Nylock, 10 x 24
(Superseded to 703412)

$4.49

$

In Stock, Qty 5

0

0060

Murray 1736094YP

BRUSH, Cleanout

$36.99

$

In Stock, only 2 left!

0

0070

Murray 53757MA

BEARING, Auger Shaft

$10.99

$

In Stock, only 2 left!

0

0080

Murray 25X021MA

SCREW, Hex Washer Head, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0090

Murray 7091790YP

BOLT, Carriage, 3/8-16 x 1-1/4, GR5
(Superseded to 703130)

$4.49

$

In Stock, Qty 13

0

0100

Murray 7091619SM

NUT, Hex Flange, 3/8-16
(Superseded to 703333)

$4.99

$

In Stock, Qty 12

0

0110

Murray 710026MA

NUT, Hex Flange, Serrated Lock, 5/16-18
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0

0150

Murray 1750222YP

SKID, Shoe, Reversible

$40.99

$

In Stock, only 1 left!

0

0160

Murray 1740745AYP

BLADE, Scraper
(Superseded to 1740745BMYP)

$43.99

$

Usually ships in 2-12 days

0

0170

Murray 582957YZMA

RETAINER, Ball Bearing
(Superseded to 1756809YP)

$11.99

$

In Stock, only 2 left!

0

0180

Murray 1705897SM

BEARING, Ball

$8.49

$

In Stock, Qty 20+

0

0190

Murray 001X45MA

BOLT, Hex, 5/16-18 x 5/8
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

0200

Murray 760040MA

PLUG

$

$

Not available

0210

Murray 7090799SM

BOLT, Carriage, 5/16-18 x 5/8 GR5
(Superseded to 703447)

$4.49

$

In Stock, Qty 18

0

0220

Murray 1733102ASM

DRIFT CUTTER

$32.99

$

In Stock, only 4 left!

0

0230

Murray 340720MA

BOLT, Carriage, 5/16-18 x 3/4
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 20+

0

0240

Murray 711604MA

NUT, Wing, 5/16-18
(Superseded to 703141)

$3.99

$

Usually ships in 2-12 days

0
