1696094 - Simplicity Walk-Behind Leaf Blower Leaf Blower Parts Diagram

Walk-Behind Leaf Blower

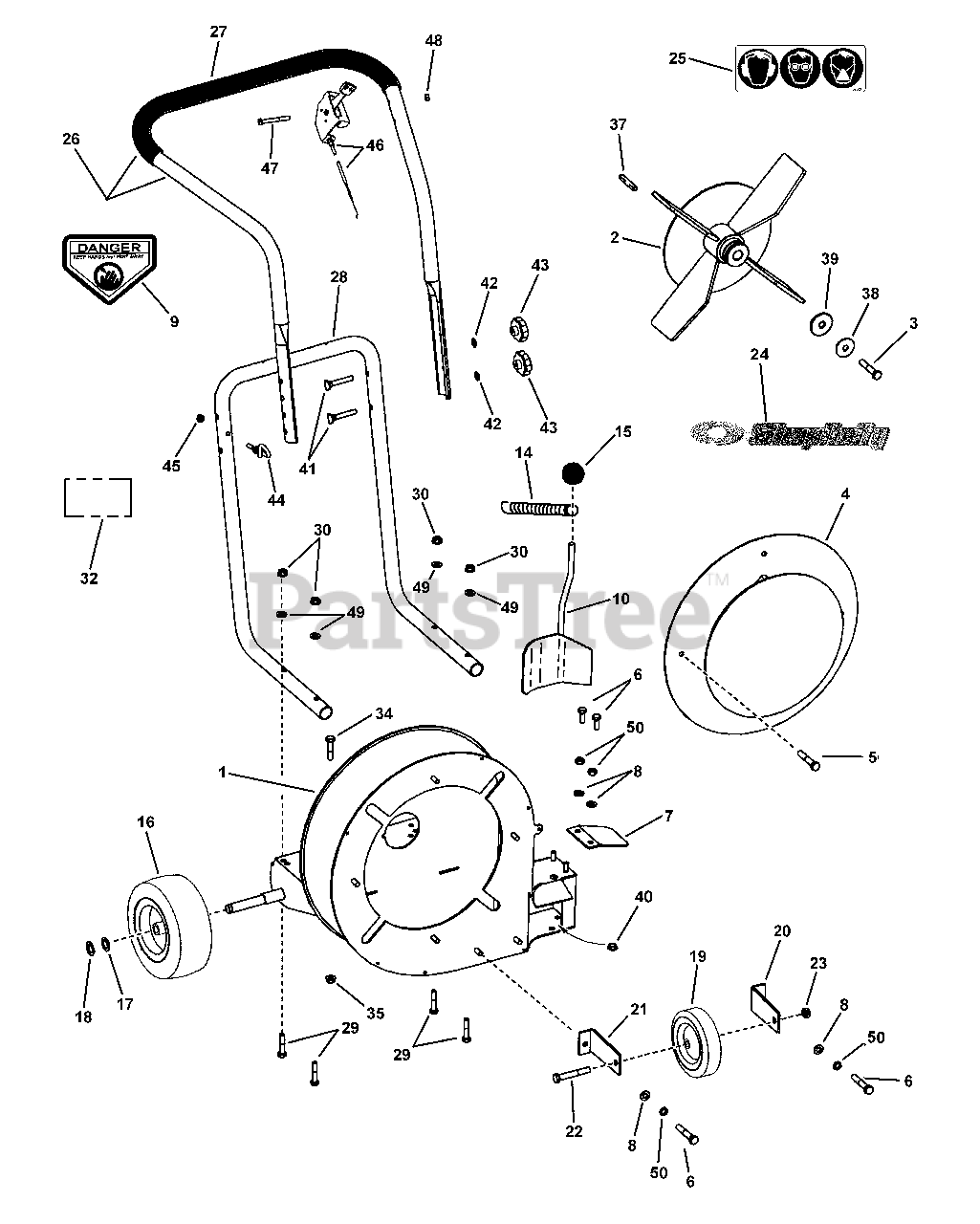

Leaf Blower Parts Diagram

  • Title

1

Simplicity 7043239YP

BASE & HOUSING ASSEMBLY, 52 Classic

$

$

Not available

2

Simplicity 7043287YP

IMPELLER ASSEMBLY, Steel 4 Blade 15.00 O.D.

$445.99

$

Usually ships in 2-12 days

0

3

Simplicity 7090167SM

CAPSCREW, 3/8-24 x 2 Hex Head, GR5

$3.99

$

Usually ships in 2-12 days

0

4

Simplicity 3020234SM

INTAKE BAFFLE ASSEMBLY

$

$

Not available

5

Simplicity 7091525YP

BOLT, Hex Flange, 5/16-18 x 1/2

$3.49

$

In Stock, only 1 left!

0

6

Simplicity 7091318SM

SCREW, Hex Head, 5/16-18 x 3/4, GR5
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

7

Simplicity 3024507SM

DEFLECTOR, Side Air

$13.99

$

Usually ships in 2-12 days

0

8

Simplicity 7090188SM

WASHER, .34 x .69 x .08 Flat
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

9

Simplicity 7013010SM

DECAL, Danger, Cut Finger

$9.49

$

In Stock, Qty 20+

0

10

Simplicity 3024508SM

DOOR FRONT/SIDE DISCHARGE ASSEMBLY

$

$

Not available

--

Simplicity 7091530SM

CAPSCREW, 1/4-20 x 3/4 Hex Head, GR5
(Superseded to 703101)

Note: (Not Shown)

$3.99

$

In Stock, Qty 5

0

--

Simplicity 7091584SM

NUT, Hex Flange, 1/4-20
(Superseded to 703233)

Note: (Not Shown)

$4.49

$

In Stock, only 2 left!

0

14

Simplicity 3071782SM

SPRING, Extension

$

$

Not available

15

Simplicity 3031103SM

KNOB, #230 Dimco

$

$

Not available

16

Simplicity 3033001SM

WHEEL & TIRE ASSEMBLY, Sawtooth 4.10/3.50-4 Kenda

$

$

Not available

--

Simplicity 3033151SM

BALL BEARING, 5/8 x 1-3/8 (Not shown, included with Ref. No. 16)

$4.49

$

Usually ships in 2-12 days

0

17

Simplicity 7091628SM

WASHER, .64 x .99 x .05 Flat

$4.49

$

In Stock, Qty 5

0

18

Simplicity 7012763SM

RING, External Retaining (TRU1500-62)

$4.49

$

In Stock, Qty 6

0

19

Simplicity 3033017SM

WHEEL, 6.00 x 1.50 Semi-Pneumatic

$

$

Not available

20

Simplicity 3033101SM

BRACKET, Caster - RH

$17.99

$

Usually ships in 2-12 days

0

21

Simplicity 3033102SM

BRACKET, Caster - LH

$17.99

$

Usually ships in 2-12 days

0

22

Simplicity 7091501SM

CAPSCREW, 3/8-16 x 2-1/2 Hex Head, GR5
(Superseded to 703873)

$4.49

$

In Stock, Qty 6

0

23

Simplicity 7091585SM

NUT, 3/8-16 Hex Center Lock, GR5 or B
(Superseded to 703347)

$4.99

$

In Stock, Qty 17

0

--

Simplicity 3033003SM

ASSEMBLY, Front Caster (Includes Ref. No. 19 thru 23)

$

$

Not available

24

Simplicity 1722551SM

DECAL, Simplicity Logo

$11.99

$

In Stock, only 1 left!

0

24

Simplicity 7075760YP

DECAL, Snapper Logo

$11.99

$

Usually ships in 2-12 days

0

25

Simplicity 7075893SM

DECAL, Personal Protection

$

$

Not available

26

Simplicity 3023270SM

ASSEMBLY, Upper Handle & Grip - Narrow (p/n 3033876 + grip)

$125.99

$

Usually ships in 2-12 days

0

27

Simplicity 7074422SM

GRIP, 1.0 x 21-1/2 Foam

$16.99

$

Usually ships in 2-12 days

0

28

Simplicity 7033877SM

HANDLE, Lower Folding- Narrow- Blower

$101.99

$

Usually ships in 2-12 days

0

29

Simplicity 7091908YP

CAPSCREW, 5/16-18 x 1-3/4 Hex Head, GR5
(Superseded to 704288)

$4.99

$

In Stock, only 2 left!

0

30

Simplicity 7091298YP

NUT, 5/16-18 Hex Nyloc
(Superseded to 703902)

$3.99

$

In Stock, Qty 13

0

--

*ENGINE, 8.5 TP Briggs & Stratton

$

$

Not available

32

Simplicity 7033874SM

DECAL, Thrown Objects, Large

$

$

Not available

--

Simplicity 7033686SM

DECAL, Leaf Blower Warning

Note: (Not Shown)

$

$

Not available

34

Simplicity 7091540YP

CAPSCREW, 5/16-18 x 1-1/2 Hex Head, GR5 (Engine Mounting Hardware)
(Superseded to 703906)

$4.99

$

In Stock, Qty 7

0

35

Simplicity 7091601SM

NUT, 5/16-18 Hex Flange Lock, GR5 (Engine Mounting Hardware)
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

--

Simplicity 7090517SM

WASHER, 3/8 Flat (Engine Mounting Hardware)

Note: (Not Shown)

$4.49

$

In Stock, Qty 8

0

37

Simplicity 7010210SM

KEY, 1/4 Square x 2
(Superseded to 703890)

$4.99

$

In Stock, Qty 8

0

38

Simplicity 7012063SM

WASHER, .411/.406 I.D. Cone
(Superseded to 703963)

$6.99

$

In Stock, Qty 20+

0

39

Simplicity 7091962SM

WASHER, .468 x 1.625 x .25 Flat

$7.99

$

In Stock, only 1 left!

0

40

Simplicity 7078169YP

BEARING, 3/8" Clip

$4.49

$

Usually ships in 2-12 days

0

41

Simplicity 7091189YP

CARRIAGE BOLT, 5/16-18 x 2, GR2
(Superseded to 703059)

$4.49

$

In Stock, Qty 14

0

42

Simplicity 7090391SM

WASHER, 5/16 Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

43

Simplicity 3071776SM

KNOB, Folding Handle

$

$

Not available

44

Simplicity 7046465SM

GUIDE, Rope

$3.49

$

Usually ships in 2-12 days

0

45

Simplicity 7090372SM

NUT, 1/4-20 Hex Center Lock, GR5 or B
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

46

Simplicity 3071800SM

THROTTLE CONTROL, Briggs & Stratton

$52.99

$

Usually ships in 2-12 days

0

47

Simplicity 7090505YP

CAPSCREW, 1/4-20 x 2 Hex Head, GR5
(Superseded to 703163)

$3.49

$

Usually ships in 2-12 days

0

48

Simplicity 7076978SM

NUT, 1/4-20 Hex Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

49

Simplicity 1717312SM

WASHER, 5/16 Curved

$

$

Not available

50

Simplicity 7091315SM

WASHER, 5/16 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0
