1696095 - Simplicity Walk-Behind Leaf Vacuum Engine, Impeller, Housing & Wheels Group Parts Diagram

Walk-Behind Leaf Vacuum

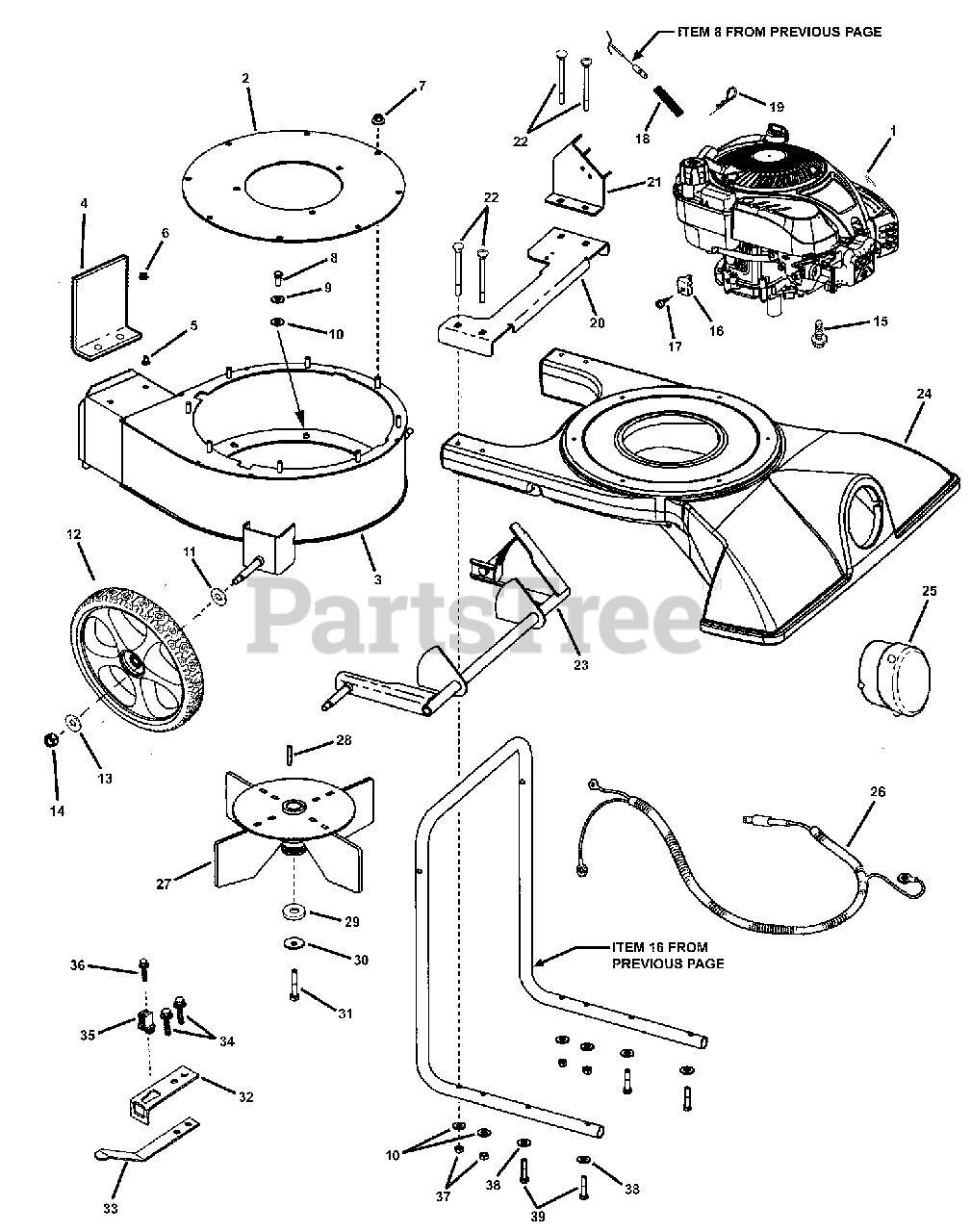

Engine, Impeller, Housing & Wheels Group Parts Diagram

  • Title

1

ENGINE, 6.5HP Briggs & Stratton Quantum Modular XRM, Recoil Start, Model 123K02, Type 0126-E1

$

$

Not available

2

Simplicity 7034902YP

PLATE, Engine Base Vacuum Universal

$62.99

$

Usually ships in 2-12 days

0

3

Simplicity 7044853SM

HOUSING ASSEMBLY, Upper

$481.99

$

Usually ships in 2-12 days

0

4

Simplicity 7075807YP

ASSEMBLY, Hinge Door

$59.99

$

Usually ships in 2-12 days

0

5

Simplicity 7091604YP

CARRIAGE BOLT, 1/4-20 x 1/2 Short Neck, GR5
(Superseded to 703978)

$3.99

$

In Stock, only 2 left!

0

6

Simplicity 7091584SM

NUT, 1/4-20 Hex Flange Lock
(Superseded to 703233)

$4.49

$

In Stock, only 2 left!

0

7

Simplicity 1931277SM

NUT, 5/16-18 Hex Flange Lock, GR5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

8

Simplicity 7091318SM

CAPSCREW, 5/16-18 x 3/4 Hex Head, GR5
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

9

Simplicity 7091315SM

WASHER, 5/16 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

10

Simplicity 7090188SM

WASHER, 5/16 Flat
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

11

Simplicity 7026257MA

WASHER, 1/2 Wave

$4.49

$

In Stock, only 2 left!

0

12

Simplicity 7058668SM

WHEEL ASSEMBLY, 14.00 x 2

$74.99

$

Usually ships in 2-12 days

0

13

Simplicity 7090122YP

WASHER, 3/8 SAE Flat
(Superseded to 703590)

$3.99

$

In Stock, Qty 18

0

14

Simplicity 7091299SM

NUT, 3/8-16 Nyloc
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

15

Simplicity 7090324SM

SCREW, 3/8-16 x 1 Hex Washer Self-Tap
(Superseded to 704000)

$4.99

$

In Stock, only 4 left!

0

16

Simplicity 7023153YP

CLAMP, Casing

$3.99

$

Usually ships in 2-12 days

0

17

Simplicity 7023154YP

SCREW, #10-32 x 5/8 Hex Head Self-Tap

$3.49

$

Usually ships in 2-12 days

0

18

Simplicity 7025062YP

SPRING, Compression

$4.49

$

Usually ships in 2-12 days

0

19

Simplicity 7091193YP

HAIRPIN, 29/32 Cotter

$5.99

$

In Stock, only 1 left!

0

20

Simplicity 7075802YP

PLATE, Reinforcing

$39.99

$

Usually ships in 2-12 days

0

21

Simplicity 7044886YP

CABLE ANCHOR ASSEMBLY

$51.99

$

Usually ships in 2-12 days

0

22

Simplicity 7058271YP

CARRIAGE BOLT, 5/16-18 x 3-1/2 Short Neck, GR5

$5.99

$

Usually ships in 2-12 days

0

23

Simplicity 7044885YP

AXLE ASSEMBLY, Drag Link

$174.99

$

Usually ships in 2-12 days

0

24

Simplicity 7075836SM

HOUSING, Lower

$329.99

$

Usually ships in 2-12 days

0

25

Simplicity 7075806SM

PLUG, Hose Port

$59.99

$

Usually ships in 2-12 days

0

26

Simplicity 7026247YP

WIRE HARNESS, Interlock

$9.49

$

Usually ships in 2-12 days

0

27

Simplicity 7045218SM

IMPELLER

$220.99

$

Usually ships in 2-12 days

0

28

Simplicity 7012315YP

KEY, 1/4 Square x 1-7/16 long

$2.99

$

Usually ships in 2-12 days

0

29

Simplicity 7091962SM

WASHER, .468 I.D. x 1-5/8 O.D. x 1/4 thick

$7.99

$

In Stock, only 1 left!

0

30

Simplicity 7012063SM

WASHER,Cone
(Superseded to 703963)

$6.99

$

In Stock, Qty 20+

0

31

Simplicity 7090167SM

CAPSCREW, 3/8-24 x 2 Hex Head, GR5

$3.99

$

Usually ships in 2-12 days

0

32

Simplicity 7032416YP

BRACKET, Interlock

$21.99

$

Usually ships in 2-12 days

0

33

Simplicity 7032417YP

SPRING, Interlock

$15.99

$

Usually ships in 2-12 days

0

34

Simplicity 7091122SM

CAPSCREW, 1/4-20 x 1/2 Hex Washer Self-Tap
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

35

Simplicity 7012048YP

INSULATOR

$3.49

$

Usually ships in 2-12 days

0

36

Simplicity 7090379YP

SCREW,# 8-18 x 3/4 Sheet Metal

$3.49

$

Usually ships in 2-12 days

0

37

Simplicity 7091298YP

NUT, 5/16-18 Hex Nyloc
(Superseded to 703902)

$3.99

$

In Stock, Qty 13

0

38

Simplicity 7091315SM

WASHER, 5/16 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

39

Simplicity 7091540YP

CAPSCREW, 5/16-18 x 1-1/2 Hex Head, GR5
(Superseded to 703906)

$4.99

$

In Stock, Qty 7

0
