1696105-01 - Simplicity 61" FAB Mower Deck 61" Mower Deck - Arbor & Drive Group (5303289) Parts Diagram

61" FAB Mower Deck

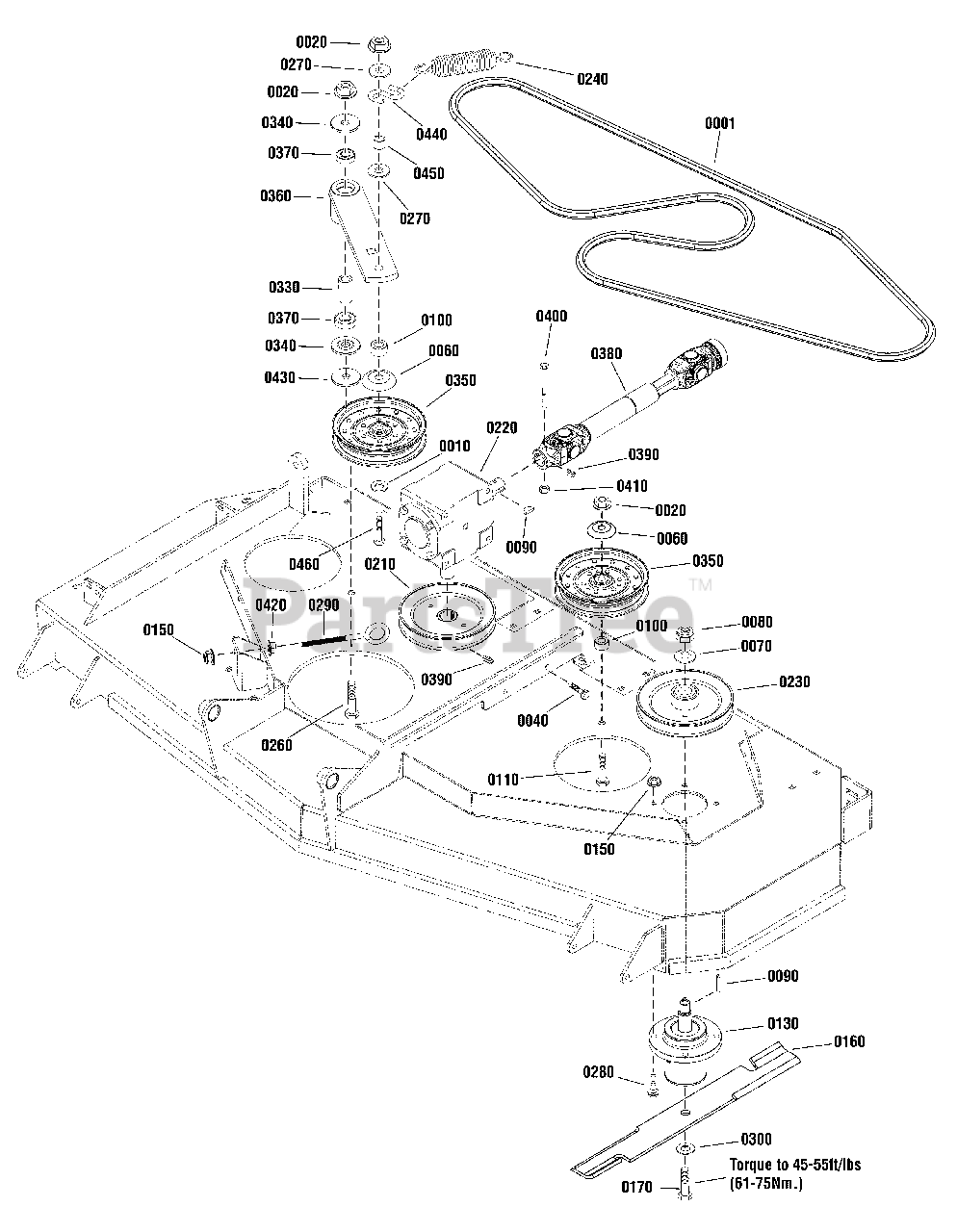

61" Mower Deck - Arbor & Drive Group (5303289) Parts Diagram

  • Title

0001

Simplicity 5103806YP

BELT, Aramid, 130

$112.99

$

Usually ships in 2-12 days

0

0010

Simplicity 5025158SM

WASHER, 1/2

$3.99

$

In Stock, Qty 5

0

0020

Simplicity 5025396SM

NUT, Hex, 1/2-13

$3.49

$

In Stock, only 3 left!

0

0040

Simplicity 1960695SM

SCREW, Hex Washer Head, 3/8-16 X 1 1/8

$14.99

$

Usually ships in 2-12 days

0

0060

Simplicity 5101103SM

SHIELD, Pulley Bearing

$10.99

$

In Stock, only 2 left!

0

0070

Simplicity 5025406SM

WASHER, Belleville
(Superseded to 770223)

$4.49

$

In Stock, only 4 left!

0

0080

Simplicity 5025405SM

NUT, Hex, 3/4-16

$3.99

$

In Stock, only 2 left!

0

0090

Simplicity 5050407X10YP

KEY, 1/4 x 1 1/4

$3.99

$

In Stock, only 2 left!

0

0100

Simplicity 5101162YP

SPACER

$7.49

$

In Stock, only 2 left!

0

0110

Simplicity 5025017X18SM

BOLT, 1/2-13 X 2-1/4

$5.99

$

Usually ships in 2-12 days

0

0130

Simplicity 5061095SM

SPINDLE ASSEMBLY

$222.99

$

In Stock, only 1 left!

0

0150

Simplicity 5025394SM

NUT, Nylock Flange, 3/8-16

$4.49

$

In Stock, Qty 20+

0

0160

Simplicity 5101755YP

BLADE, Mower, 21 X .25 X 2.5, 1 X 3 1/2
(Superseded to 5101755BMYP)

$26.99

$

In Stock, Qty 7

0

0170

Simplicity 5025320X14SM

BOLT, 5/8-11 X 1 3/4
(Superseded to 770136)

$4.49

$

In Stock, Qty 19

0

0210

Simplicity 5103802YP

PULLEY, 6.93

$74.99

$

Usually ships in 2-12 days

0

0220

Simplicity 1725298SM

GEARBOX, Drive Assembly

$744.99

$

Usually ships in 2-12 days

0

0230

Simplicity 5100700SM

PULLEY, Split, 6.93

$74.99

$

In Stock, only 3 left!

0

0240

Simplicity 5100633YP

SPRING, Extension

$34.99

$

Usually ships in 2-12 days

0

0260

Simplicity 5025017X28SM

BOLT, 1/2-13 X 3-1/2

$5.99

$

In Stock, only 1 left!

0

0270

Simplicity 5025150SM

WASHER, 1/2

$3.99

$

In Stock, only 3 left!

0

0280

Simplicity 5025390X10SM

BOLT, Flange, 3/8-16 X 1-1/4
(Superseded to 770137)

$4.49

$

In Stock, only 4 left!

0

0290

Simplicity 5025429YP

BOLT, Eye, 3/8-16 x 4

$

$

Not available

0300

Simplicity 5025477SM

WASHER, 5/8

$3.99

$

In Stock, only 4 left!

0

0330

Simplicity 5103812YP

SPACER

$7.99

$

In Stock, only 1 left!

0

0340

Simplicity 5103262YP

SPACER, Idler Arm, 1/2

$7.99

$

In Stock, only 2 left!

0

0350

Simplicity 5103800YP

PULLEY, Idler, 6-3/4

$54.99

$

In Stock, Qty 6

0

0360

Simplicity 5410358CJYP

WELD, Idler Arm

$121.99

$

Usually ships in 2-12 days

0

0370

Simplicity 7078243YP

BEARING, Ball

$10.99

$

In Stock, only 2 left!

0

0380

Simplicity 1725217SM

SHAFT ASSEMBLY, Drive

$547.99

$

Usually ships in 2-12 days

0

0390

Simplicity 5025531YP

SCREW, Set, 5/16-18 X 3/8
(Superseded to 1677029SM)

$3.49

$

Usually ships in 2-12 days

0

0400

Simplicity 1921159SM

CAPSCREW, Hex Head, 1/4-20 X 2 1/4
(Superseded to 704291)

$5.49

$

Usually ships in 2-12 days

0

0410

Simplicity 703794

NUT, Centerlock, 1/4-20

$4.99

$

Usually ships in 2-12 days

0

0420

Simplicity 5025128SM

NUT, Serrated Flange, 3/8-16

$3.49

$

In Stock, only 1 left!

0

0430

Simplicity 1718640SM

WASHER

$8.49

$

Usually ships in 2-12 days

0

0440

Simplicity 5104011YP

S-HOOK, 5/16

$9.49

$

Usually ships in 2-12 days

0

0450

Simplicity 5104012YP

SPACER

$8.49

$

Usually ships in 2-12 days

0

0460

Simplicity 5025017X24SM

BOLT, 1/2-13 x 3

$5.99

$

In Stock, only 2 left!

0
