1696105-01 - Simplicity 61" FAB Mower Deck 61" Mower Deck - Housing & Cover Group (5303286) Parts Diagram

61" FAB Mower Deck

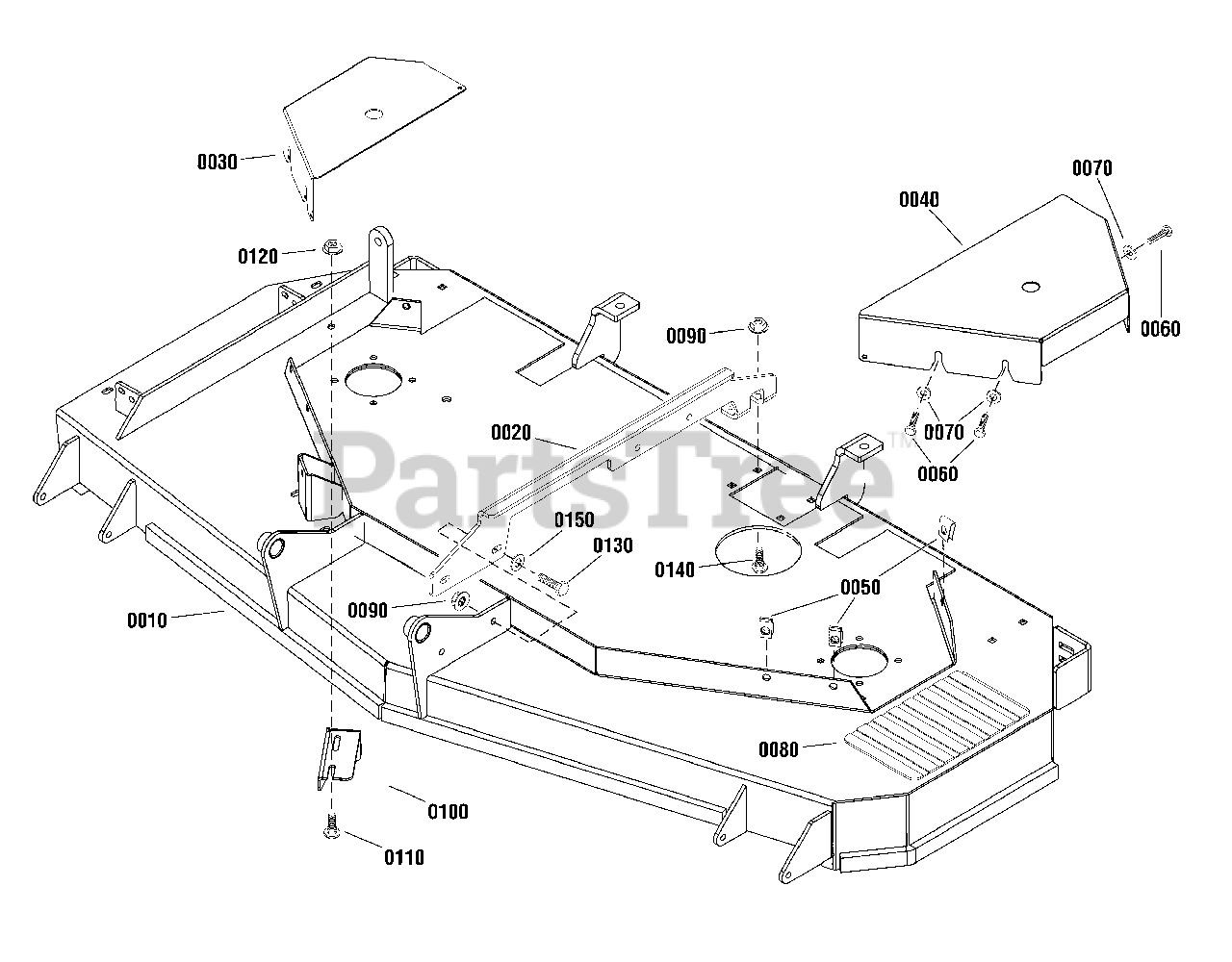

61" Mower Deck - Housing & Cover Group (5303286) Parts Diagram

  • Title

0010

Simplicity 1687824YP

MOWER DECK, 61
(Superseded to 1687943)

$2479.99

$

Usually ships in 2-12 days

0

0020

Simplicity 5410339AYP

PLATE, Stiffner

$102.99

$

In Stock, only 1 left!

0

0030

Simplicity 5410340CYP

GUARD, RH 61

$48.99

$

Usually ships in 2-12 days

0

0040

Simplicity 5410341CYP

GUARD, LH 61"

$69.99

$

Usually ships in 2-12 days

0

0050

Simplicity 5022308SM

BODY CLIP, 5/16-18

$5.99

$

In Stock, Qty 9

0

0060

Simplicity 5025011X8SM

BOLT, 5/16-18 X 1
(Superseded to 703585)

$4.99

$

In Stock, only 3 left!

0

0070

Simplicity 5025292SM

WASHER, Flat, 5/16

$3.99

$

In Stock, only 4 left!

0

0080

Simplicity 5101005SM

SAFETY WALK, 9.75 X 6.00

$15.99

$

Usually ships in 2-12 days

0

0090

Simplicity 5025394SM

NUT, Nylock Flange, 3/8-16

$4.49

$

In Stock, Qty 20+

0

0100

Simplicity 5401344AYP

PLATE, Deflector

$27.99

$

Usually ships in 2-12 days

0

0110

Simplicity 5025145X6SM

BOLT, Carriage, 5/16-18 X 3/4

$3.99

$

In Stock, only 3 left!

0

0120

Simplicity 5025392SM

NUT, Nylock Flange, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 17

0

0130

Simplicity 5025013X10SM

BOLT, 3/8-16 X 1 1/4

$3.99

$

In Stock, only 2 left!

0

0140

Simplicity 703815

BOLT, Round Head Short Neck, 3/8-16X 1

$4.49

$

In Stock, Qty 5

0

0150

Simplicity 5025156SM

WASHER, 3/8
(Superseded to 703590)

$3.99

$

In Stock, Qty 20+

0
