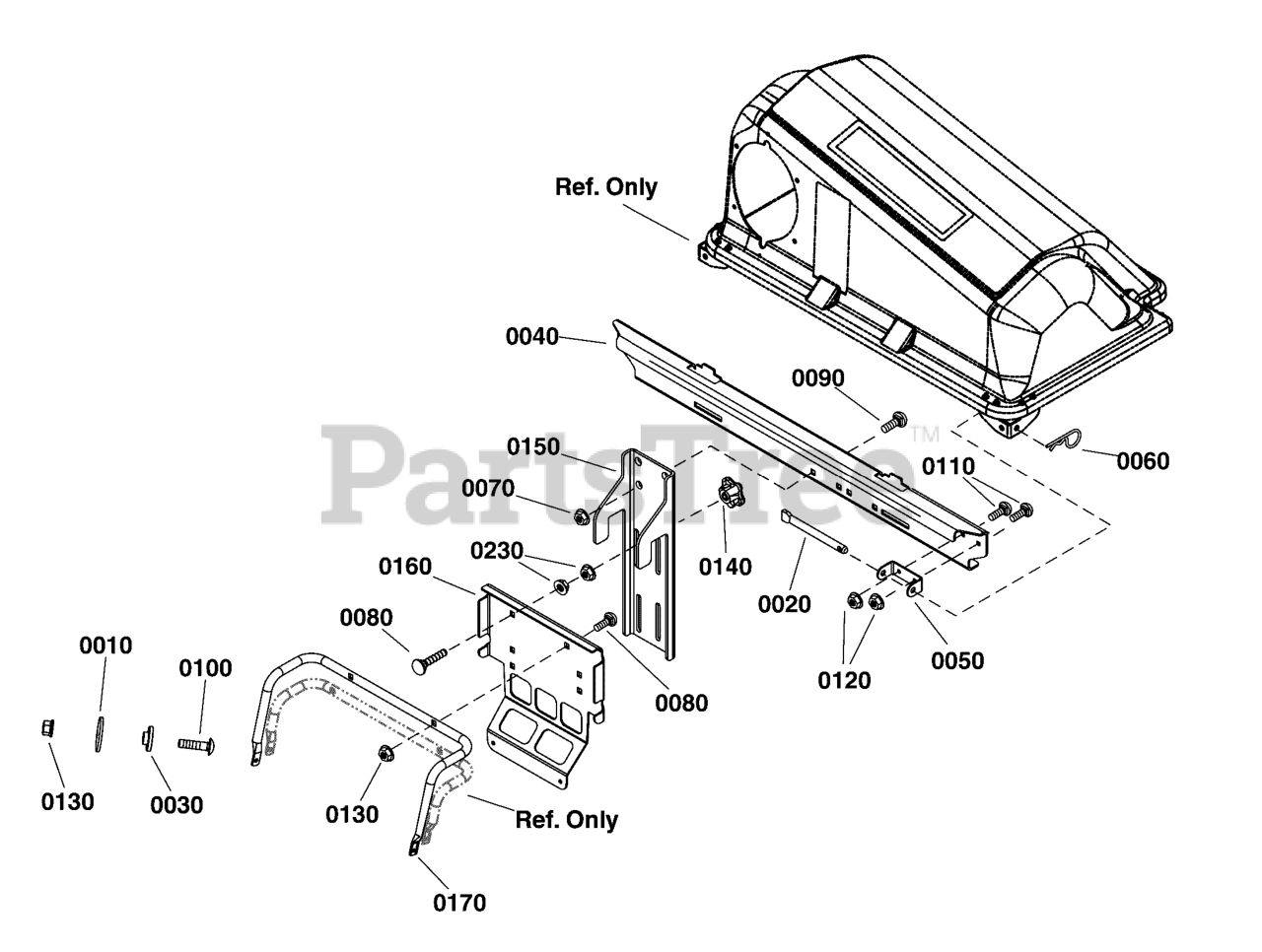

1696133 A-00 - Murray 46" & 52" Clean Sweep Triple Bag Grass Catcher Hitch Group Parts Diagram

46" & 52" Clean Sweep Triple Bag Grass Catcher

Hitch Group Parts Diagram

  • Title

0010

Murray 703939

WASHER, .32 ID x 1.40 OD x .10 Thk, Bellville, ZC/CL

$7.49

$

Usually ships in 2-12 days

0

0020

Murray 054407ZMA

PIN, Cover Hinge, 3/8 Dia.x 3-3/4

$14.99

$

In Stock, only 2 left!

0

0030

Murray 1723244SM

SPACER, Pivot

$8.49

$

Usually ships in 2-12 days

0

0040

Murray 1736080AYP

CROSS SUPPORT

$197.99

$

Usually ships in 2-12 days

0

0050

Murray 1736886BMYP

PIVOT, Hinge

$35.99

$

Usually ships in 2-12 days

0

0060

Murray 703796

PIN, Hair

$5.99

$

In Stock, Qty 8

0

0070

Murray 703793

NUT, Lock, Flange, 3/8-16
(Superseded to 5025128SM)

$3.49

$

In Stock, Qty 15

0

0080

Murray 703175

BOLT, Carriage, 5/16-18 x 1 3/4

$3.99

$

In Stock, only 2 left!

0

0090

Murray 703815

BOLT, Carriage, 3/8-16 X 1

$4.49

$

In Stock, only 3 left!

0

0100

Murray 703446

BOLT, Carriage, 5/16-18 X 1 1/4, GR5

$4.49

$

In Stock, only 2 left!

0

0110

Murray 1960252SM

BOLT, Carriage, 1/4-20 x 5/8

$3.99

$

Usually ships in 2-12 days

0

0120

Murray 703233

NUT, Serrated, Flange, 1/4-20, GR5

$4.49

$

In Stock, Qty 6

0

0130

Murray 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0140

Murray 7105085YP

KNOB, 5 Prong, 5/16-18

$3.99

$

In Stock, Qty 12

0

0150

Murray 7301143BMYP

BRACKET,Rear Bumper

$172.99

$

Usually ships in 2-12 days

0

0160

Murray 1753572BMYP

PLATE BRAND

$94.99

$

Usually ships in 2-12 days

0

0170

Murray 7301123BMYP

TUBE, Bumper, Upper

$

$

Not available

0230

Murray 703330

NUT, Hex Flange Whiz-Lock, 5/16-18

$4.99

$

In Stock, Qty 6

0
