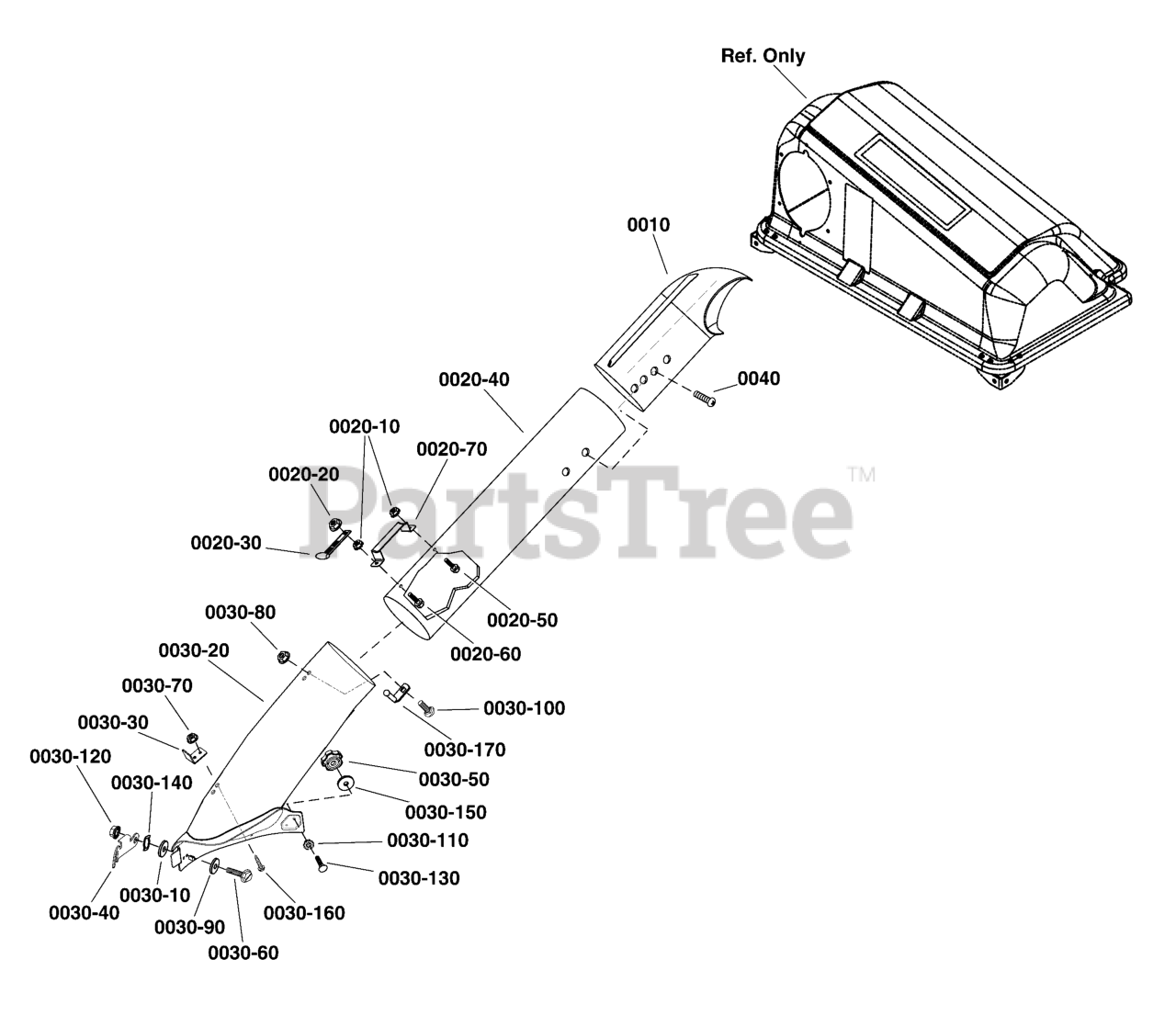

1696133 A-00 - Simplicity Clean Sweep Triple Grass Catcher for 46" & 52" Mower Tube Group Parts Diagram

Clean Sweep Triple Grass Catcher for 46" & 52" Mower

Tube Group Parts Diagram

  • Title

0010

Simplicity 1733885SM

ELBOW, Upper Tube

$103.99

$

Usually ships in 2-12 days

0

0040

Simplicity 26X239MA

SCREW, 1/4 Phillips

$4.49

$

In Stock, only 2 left!

0

0020-10

Simplicity 703914

NUT, Hex, 1/4-20

$3.49

$

In Stock, Qty 18

0

0020-20

Simplicity 703916

NUT, Hex Flange, 1/4-20

$4.99

$

In Stock, only 4 left!

0

0020-30

Simplicity 2171600SM

STRAP, Hood Rubber

$7.99

$

In Stock, Qty 20+

0

0020-40

Simplicity 7104383YP

TUBE, Clear, 34"

$158.99

$

Usually ships in 2-12 days

0

0020-50

Simplicity 004X24MA

SCREW, Slotted, 1/4-20 x 1/2

$4.49

$

Usually ships in 2-12 days

0

0020-60

Simplicity 004X71MA

SCREW, Machine, 1/4-20 X 1

$4.99

$

In Stock, only 4 left!

0

0020-70

Simplicity 054416ZMA

HANDLE, Connect Tube

$20.99

$

In Stock, only 4 left!

0

0030-10

Simplicity 1708511SM

SPACER, 5/16 ID x 1 OD x 1/4"`

$7.49

$

Usually ships in 2-12 days

0

0030-20

Simplicity 1734776YP

BOOT, Bagging

$268.99

$

In Stock, only 1 left!

0

0030-30

Simplicity 1737764AYP

UPSTOP, Deflector

$33.99

$

Usually ships in 2-12 days

0

0030-40

Simplicity 1737765AYP

LATCH, Bagging Boot

$32.99

$

In Stock, only 1 left!

0

0030-50

Simplicity 1738295YP

KNOB, ESNA, 1/4-20

$7.49

$

In Stock, only 1 left!

0

0030-60

Simplicity 703585

CAPSCREW, Hex Head, 5/16-18 x 1

$4.99

$

In Stock, only 3 left!

0

0030-70

Simplicity 703914

NUT, Hex, 1/4-20

$3.49

$

In Stock, Qty 18

0

0030-80

Simplicity 703916

NUT, Hex Flange, 1/4-20

$4.99

$

In Stock, only 4 left!

0

0030-90

Simplicity 1960044SM

WASHER, Flat, 5/16

$4.49

$

In Stock, Qty 16

0

0030-100

Simplicity 703061

NUT, 1/4-20, Keps, Conical Washer

$3.49

$

In Stock, only 3 left!

0

0030-110

Simplicity 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 17

0

0030-120

Simplicity 1960698SM

BOLT, Round Head, Short Neck, 1/4-20 X 1
(Superseded to 703584)

$3.99

$

In Stock, only 3 left!

0

0030-130

Simplicity 7026257MA

WASHER, Wave, 1/2

$4.49

$

In Stock, only 2 left!

0

0030-140

Simplicity 1960252SM

BOLT, Carriage, 1/4-20 x 5/8

$3.99

$

In Stock, only 2 left!

0

0030-150

Simplicity 7091627YP

WASHER, Flat, 9/32 X 1 X 1/8

$4.99

$

In Stock, Qty 11

0

0030-160

Simplicity 004X24MA

SCREW, Slotted, 1/4-20 x 1/2

$4.49

$

Usually ships in 2-12 days

0

0030-170

Simplicity 054563MA

PIN, Latch

$23.99

$

In Stock, only 2 left!

0
