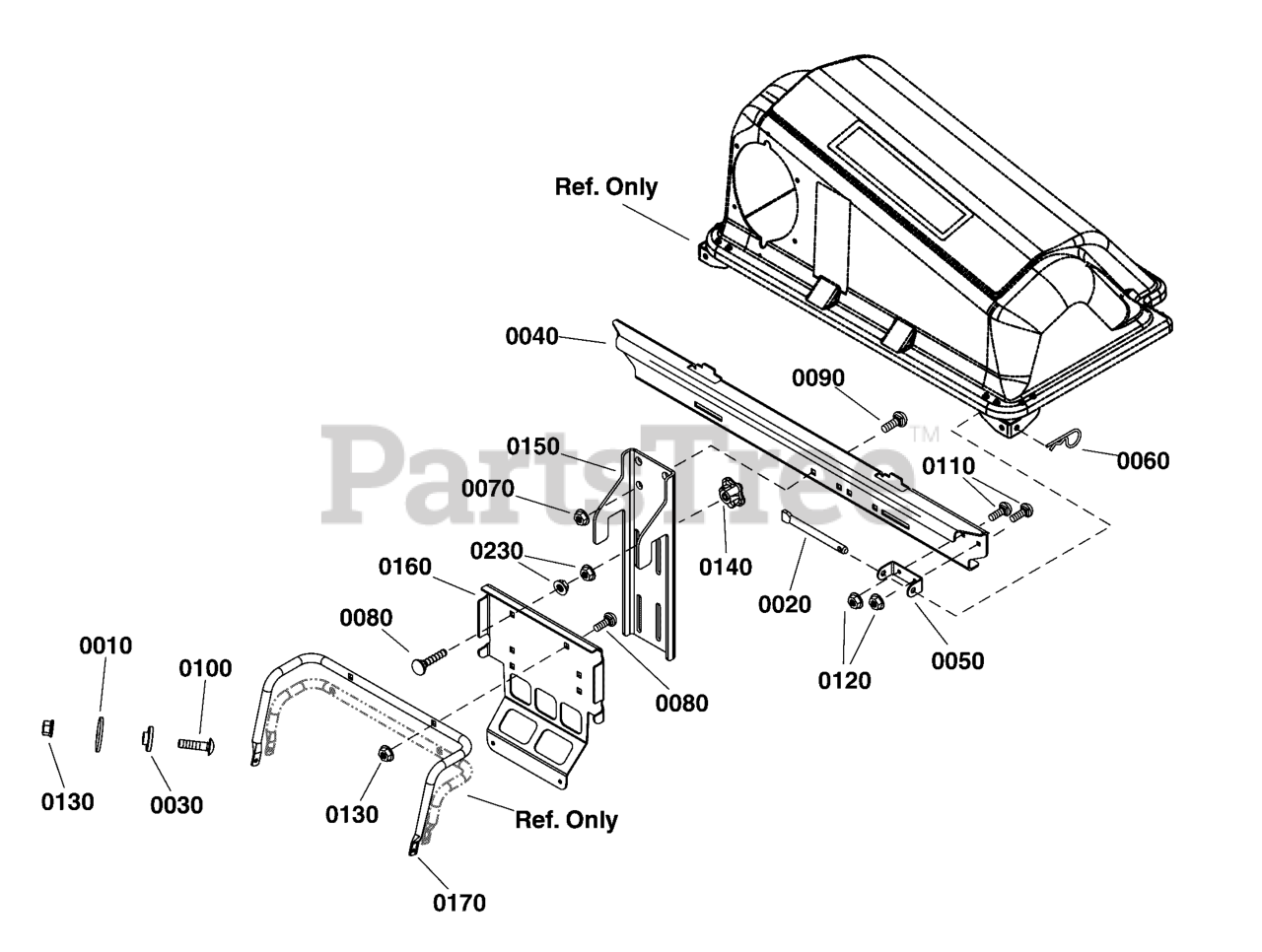

1696133A-00 - Snapper Clean Sweep Triple Grass Catcher for 46" & 52" Mower Hitch Group Parts Diagram

Clean Sweep Triple Grass Catcher for 46" & 52" Mower

Hitch Group Parts Diagram

  • Title

0010

Snapper 703939

WASHER, .32 ID x 1.40 OD x .10 Thk, Bellville, ZC/CL

$7.49

$

Usually ships in 2-12 days

0

0020

Snapper 054407ZMA

PIN, Cover Hinge, 3/8 Dia.x 3-3/4

$14.99

$

In Stock, only 1 left!

0

0030

Snapper 1723244SM

SPACER, Pivot

$8.49

$

Usually ships in 2-12 days

0

0040

Snapper 1736080AYP

CROSS SUPPORT

$197.99

$

Usually ships in 2-12 days

0

0050

Snapper 1736886BMYP

PIVOT, Hinge

$35.99

$

Usually ships in 2-12 days

0

0060

Snapper 703796

PIN, Hair

$5.99

$

In Stock, Qty 10

0

0070

Snapper 703793

NUT, Lock, Flange, 3/8-16
(Superseded to 5025128SM)

$3.49

$

In Stock, Qty 17

0

0080

Snapper 703175

BOLT, Carriage, 5/16-18 x 1 3/4

$3.99

$

In Stock, only 2 left!

0

0090

Snapper 703815

BOLT, Carriage, 3/8-16 X 1

$4.49

$

In Stock, only 4 left!

0

0100

Snapper 703446

BOLT, Carriage, 5/16-18 X 1 1/4, GR5

$4.49

$

In Stock, only 2 left!

0

0110

Snapper 1960252SM

BOLT, Carriage, 1/4-20 x 5/8

$3.99

$

Usually ships in 2-12 days

0

0120

Snapper 703233

NUT, Serrated, Flange, 1/4-20, GR5

$4.49

$

In Stock, Qty 6

0

0130

Snapper 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0140

Snapper 7105085YP

KNOB, 5 Prong, 5/16-18

$3.99

$

In Stock, Qty 20+

0

0150

Snapper 7301143BMYP

BRACKET,Rear Bumper

$172.99

$

Usually ships in 2-12 days

0

0160

Snapper 1753572BMYP

PLATE BRAND

$94.99

$

Usually ships in 2-12 days

0

0170

Snapper 7301123BMYP

TUBE, Bumper, Upper

$

$

Not available

0230

Snapper 703330

NUT, Hex Flange Whiz-Lock, 5/16-18

$4.99

$

In Stock, Qty 7

0
