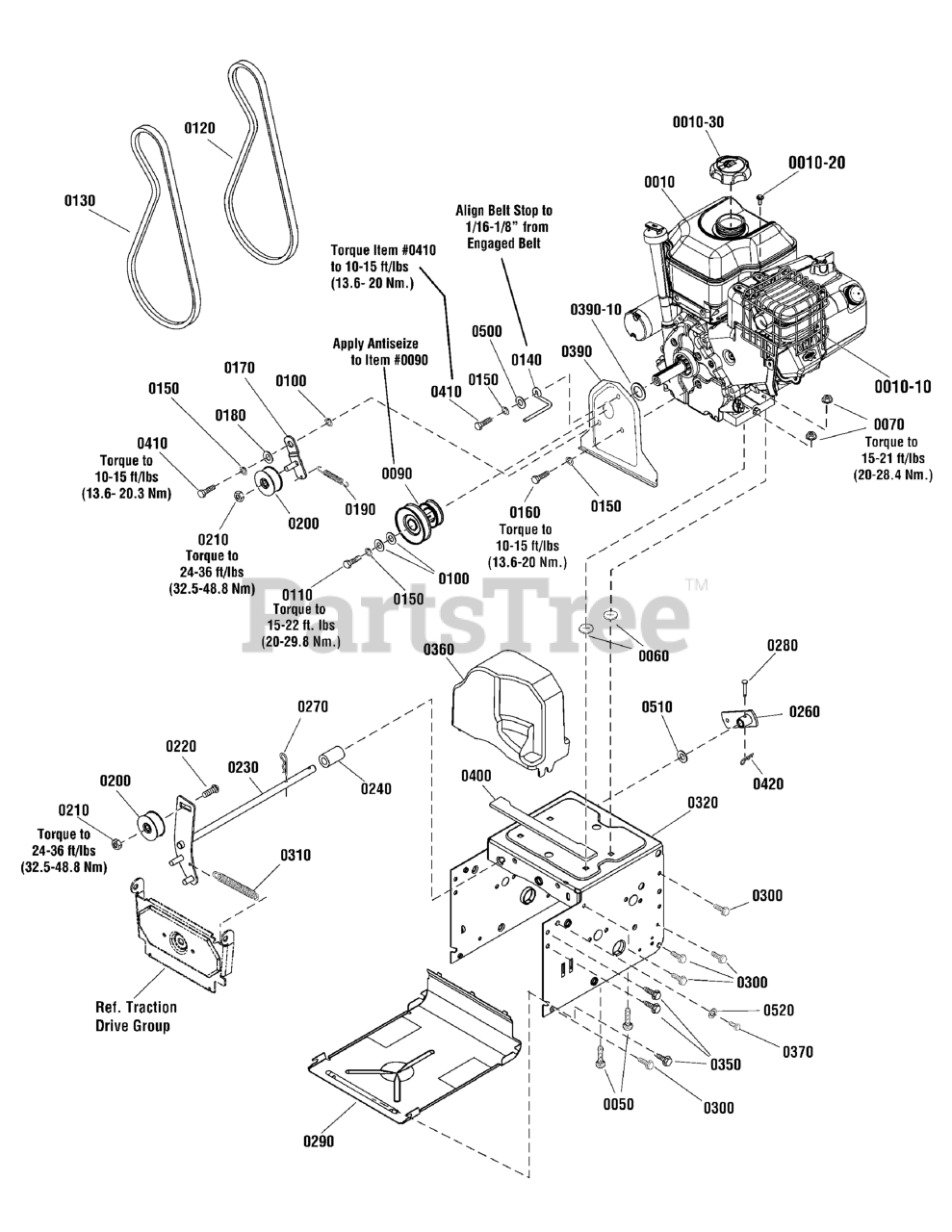

1696227-00 (CL 61900 R) - Canadiana 24" Snow Thrower, Canada (2012) Engine & Frame Group Parts Diagram

24" Snow Thrower, Canada

Engine & Frame Group Parts Diagram

  • Title

0010

Murray 12D106-0168-F8

* ENGINE, 900 Series, Briggs & Stratton, Export

Note: (Engine Model: 12D106-0168-F8)

$

$

Not available

0010-10

Murray 793193

GUARD, Muffler, Wire

$61.99

$

Usually ships in 2-12 days

0

0010-20

Murray 699854

SCREW, Muffler Guard

$4.49

$

In Stock, Qty 19

0

0010-30

Murray 795027

CAP, Fuel

$10.99

$

In Stock, Qty 16

0

0050

Murray 1931337SM

BOLT, Carriage, Short Neck, 5/16-18 x 1-1/2, G5
(Superseded to 703296)

$4.49

$

In Stock, only 3 left!

0

0060

Murray 028X76MA

NUT, Push, 1/4

$4.49

$

Usually ships in 2-12 days

0

0070

Murray 015X79MA

NUT, Flange, 5/16-18
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0

0090

Murray 1501109MA

PULLEY, Engine

$43.99

$

In Stock, only 2 left!

0

0100

Murray 1919381SM

WASHER, 5/16
(Superseded to 703298)

$4.49

$

In Stock, Qty 15

0

0110

Murray 1921982SM

CAPSCREW, Hex Head, 5/16-24 x 1-1/4, G5
(Superseded to 703299)

$5.49

$

Usually ships in 2-12 days

0

0120

Murray 1733324SM

V-BELT, Traction Drive, 3L 33.13

$19.99

$

In Stock, only 1 left!

0

0130

Murray 1751417YP

BELT, Auger Drive, 4L 38.17

$29.99

$

In Stock, only 2 left!

0

0140

Murray 1739070YP

GUIDE, Belt

$8.49

$

In Stock, only 2 left!

0

0150

Murray 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 5025170SM)

$4.49

$

In Stock, only 1 left!

0

0160

Murray 1921515SM

CAPSCREW, Hex Head, 5/16-24 x 3/4, G5
(Superseded to 703336)

$4.99

$

In Stock, Qty 14

0

0170

Murray 1501112YZMA

IDLER BRACKET
(Superseded to 1687797YP)

$8.99

$

In Stock, only 2 left!

0

0180

Murray 1501065MA

BUSHING, Idler Bracket

$5.99

$

In Stock, only 2 left!

0

0190

Murray 165X164MA

SPRING, Extension, Auger

$7.99

$

In Stock, only 2 left!

0

0200

Murray 1502120MA

IDLER, Plastic Ball Bearing

$23.99

$

In Stock, only 2 left!

0

0210

Murray 1960251SM

NUT, Hex Centerlock Jam, 3/8-16
(Superseded to 703230)

$5.49

$

In Stock, Qty 9

0

0220

Murray 585781MA

BOLT, Carriage, Short Neck, 3/8-16 x 1-1/2, G5
(Superseded to 1960268SM)

$4.49

$

In Stock, only 3 left!

0

0230

Murray 1752397YP

AUGER IDLER

$67.99

$

Usually ships in 2-12 days

0

0240

Murray 1501200MA

SPACER, 1/2 ID x 1 OD x 1-3/4"

$6.49

$

Usually ships in 2-12 days

0

0260

Murray 1733451SM

ARM, Control

$22.99

$

In Stock, only 2 left!

0

0270

Murray 0031X6MA

PIN, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

0280

Murray 1736381YP

PIN, Clevis
(Superseded to 703313)

$5.49

$

In Stock, only 2 left!

0

0290

Murray 1740906ASM

PANEL, Bottom
(Superseded to 1753969BMYP)

$

$

Not available

0300

Murray 1927429SM

SCREW, Hex Washer Head, Taptite, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, Qty 14

0

0310

Murray 165X159MA

SPRING, Extension, Auger

$7.49

$

In Stock, Qty 6

0

0320

Murray 1754891BNYP

FRAME

$145.99

$

Usually ships in 2-12 days

0

0350

Murray 1664847SM

SCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0360

Murray 1753893YP

COVER, Belt

$55.99

$

Usually ships in 2-12 days

0

0370

Murray 1751355YP

SCREW, Hex Washer Head, Tap, SEMS, 1/4-20 x 3/4

$6.99

$

Usually ships in 2-12 days

0

0390

Murray 1733868BZYP

PLATE, Seal
(Superseded to 1733868BMYP)

$14.99

$

In Stock, only 1 left!

0

0390-10

Murray 1733898SM

SEAL, Foam

$6.99

$

Usually ships in 2-12 days

0

0400

Murray 1750172YP

STRIP, Seal

$7.99

$

Usually ships in 2-12 days

0

0410

Murray 910828MA

BOLT, Hex, 5/16-24 x 1
(Superseded to 703301)

$4.49

$

In Stock, only 4 left!

0

0420

Murray 7023590SM

PIN, Cotter, Self Lock, 1/4

$4.49

$

In Stock, Qty 20+

0

0500

Murray 7091528SM

WASHER, Flat, 3/8
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

0510

Murray 1960027SM

WASHER, 1/2
(Superseded to 703128)

$3.99

$

In Stock, Qty 20+

0

0520

Murray 7091890SM

WASHER, Internal Tooth, 1/4

$4.49

$

Usually ships in 2-12 days
