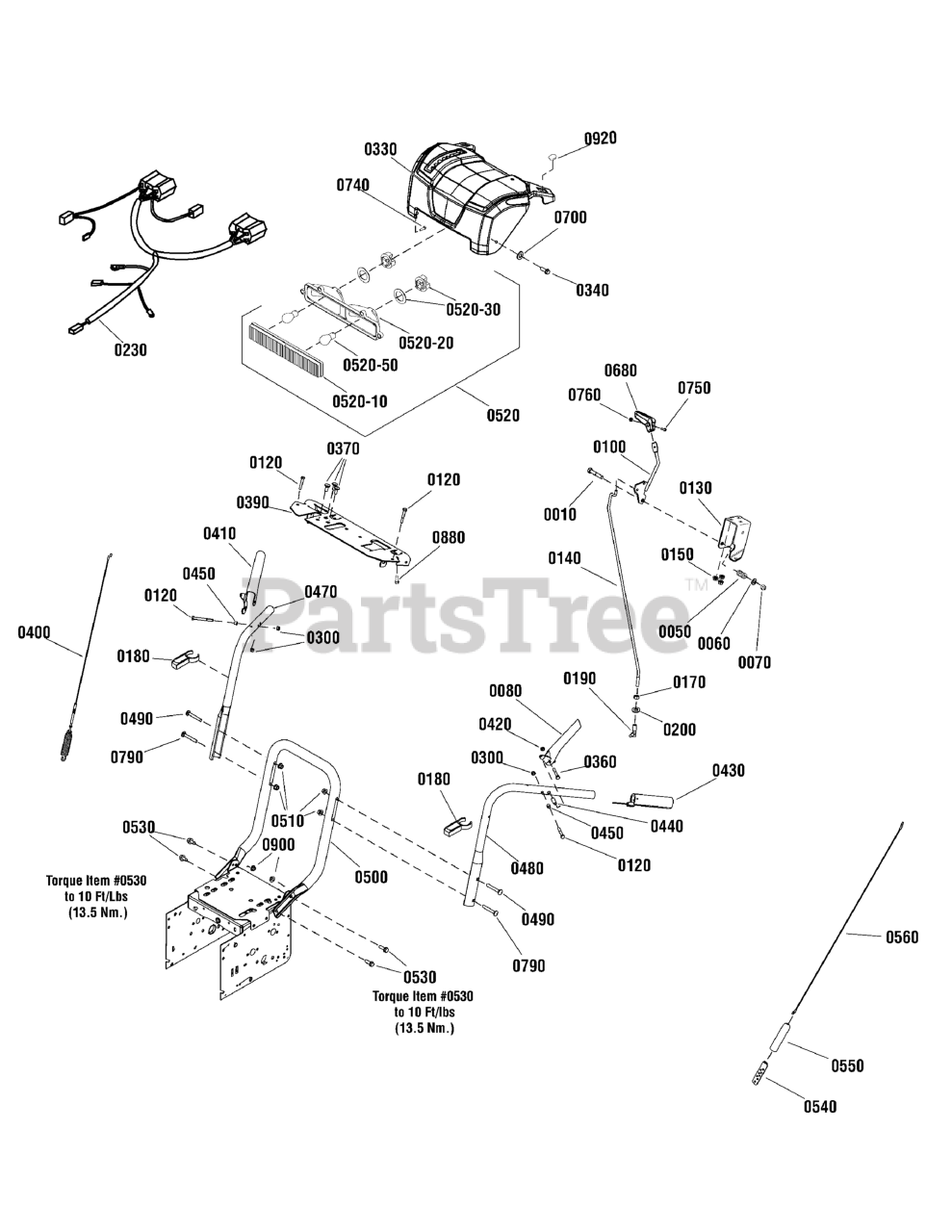

1696227-00 (CL 61900 R) - Canadiana 24" Snow Thrower, Canada (2012) Handles & Controls Group Parts Diagram

24" Snow Thrower, Canada

Handles & Controls Group Parts Diagram

  • Title

0010

Murray 1923701SM

CAPSCREW, Hex Head, 3/8-16 x 2, GR5
(Superseded to 703589)

$4.49

$

In Stock, Qty 20+

0

0050

Murray 50786MA

SPRING, 3/4"

$5.49

$

Usually ships in 2-12 days

0

0060

Murray 1918266SM

WASHER, 3/8
(Superseded to 703590)

$3.99

$

In Stock, Qty 20+

0

0070

Murray 1919439SM

NUT, Hex Lock, ESNA LIGHT, 3/8-16
(Superseded to 703117)

$3.99

$

In Stock, Qty 20+

0

0080

Murray 1739782AYP

LEVER, Clutch, LH

$

$

Not available

0100

Murray 1736836YP

SPEED LEVER
(Superseded to 703047)

$59.99

$

Usually ships in 2-12 days

0

0120

Murray 1921962SM

CAPSCREW, Hex Head, 1/4-20 x 1-3/4, GR5
(Superseded to 703586)

$4.99

$

Usually ships in 2-12 days

0

0130

Murray 1737684YP

BRACKET, Controls

$17.99

$

Usually ships in 2-12 days

0

0140

Murray 1734354SM

ROD, 25"
(Superseded to 704085)

$24.99

$

Usually ships in 2-12 days

0

0150

Murray 1931277SM

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0

0170

Murray 2820263SM

NUT, Hex, 5/16-24
(Superseded to 703331)

$4.49

$

In Stock, Qty 17

0

0180

Murray 1739487YP

BRACKET, Lower Mounting

$6.49

$

In Stock, only 1 left!

0

0190

Murray 50782MA

BALLJOINT

$22.99

$

In Stock, only 4 left!

0

0200

Murray 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 5025170SM)

$4.49

$

In Stock, only 1 left!

0

0230

Murray 1750359YP

WIRING HARNESS, Headlights

$39.99

$

Usually ships in 2-12 days

0

0300

Murray 1920397SM

NUT, Hex Lock, ESNA LIGHT, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0330

Murray 1736186YP

COVER ASSEMBLY, Panel
(Superseded to 1757550YP)

$138.99

$

Usually ships in 2-12 days

0

0340

Murray 1960001SM

SCREW, Hex Washer Head, Plastite, 10-14 x 5/8
(Superseded to 703062)

$4.99

$

In Stock, Qty 20+

0

0360

Murray 1753529YP

BOLT, Shoulder, 1/4 x 1-1/4

$3.99

$

In Stock, only 1 left!

0

0370

Murray 1931333SM

BOLT, Carriage, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

0390

Murray 1739500AYP

SUPPORT, Dash

$54.99

$

Usually ships in 2-12 days

0

0400

Murray 1732471SM

CABLE, Auger Drive

$

$

Not available

0410

Murray 1739783AYP

LEVER, Clutch, RH

$29.99

$

In Stock, only 1 left!

0

0420

Murray 1933896SM

NUT, Hex Lock, Nylon Insert, 10-24
(Superseded to 703412)

$4.49

$

In Stock, Qty 5

0

0430

Murray 1726317SM

GRIP

$8.99

$

Usually ships in 2-12 days

0

0440

Murray 1736542YP

SPACER, Stepped
(Superseded to 703223)

$4.49

$

Usually ships in 2-12 days

0

0450

Murray 1678392SM

SPACER, 1/4 ID x 3/8 OD x 5/16"
(Superseded to 703137)

$7.49

$

In Stock, only 2 left!

0

0470

Murray 1734587ASM

HANDLE, Upper, RH

$54.99

$

Usually ships in 2-12 days

0

0480

Murray 1734586ASM

HANDLE, Upper, LH

$58.99

$

Usually ships in 2-12 days

0

0490

Murray 1960273SM

BOLT, Carriage, Short Neck, 5/16-18 x 2-1/4, GR5
(Superseded to 704421)

$5.49

$

In Stock, Qty 17

0

0500

Murray 1737274AYP

HANDLE, Lower

$113.99

$

Usually ships in 2-12 days

0

0510

Murray 1739305YP

NUT, Hex Flange, ESNA, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0520

Murray 1736176YP

HEADLIGHT ASSEMBLY

$68.99

$

Usually ships in 2-12 days

0

0520-10

LENS

Note: (Included with Ref. No. 0520)

$

$

Not available

0520-20

DEFLECTOR, Light

Note: (Included with Ref. No. 0520)

$

$

Not available

0520-30

Murray 1736180YP

SOCKET & GASKET ASSEMBLY, Headlight

Note: (Included with Ref. No. 0520)

$10.99

$

Usually ships in 2-12 days

0

0520-50

* BULB, Light, 12V 15W, 1156

Note: (Included with Ref. No. 0520)

$

$

Not available

0530

Murray 340720MA

BOLT, Carriage, 5/16-18 x 3/4
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 20+

0

0540

Murray 313441MA

BRACKET, Cable Adjusting

$

$

Not available

0550

Murray 308146MA

BOOT, Spring End Cover

$6.99

$

In Stock, Qty 8

0

0560

Murray 1502113MA

CABLE, Front Drive

$22.99

$

In Stock, Qty 9

0

0680

Murray 1733192SM

KNOB, Slot Speed

$8.99

$

Usually ships in 2-12 days

0

0700

Murray 1921319SM

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

0740

Murray 7091105YP

SCREW, Hex Washer Head, #10-16 x 1/2
(Superseded to 26X245MA)

$4.49

$

In Stock, Qty 10

0

0750

Murray 1960589SM

SCREW, Round Head Phillips, #10-24 x 3/4

$4.49

$

Usually ships in 2-12 days

0

0760

Murray 7091290SM

NUT, Hex Lock, Nylon, #10C
(Superseded to 703412)

$4.49

$

In Stock, Qty 5

0

0790

Murray 1931338SM

BOLT, Carriage, Short Neck, 5/16-18 x 1-3/4, GR5
(Superseded to 703175)

$3.99

$

Usually ships in 2-12 days

0

0880

Murray 7091081SM

SCREW, 1/4-15X3/4, Self-Tapping, BZ
(Superseded to 1960728SM)

$3.99

$

In Stock, only 4 left!

0

0900

Murray 1960684SM

NUT, Hex Flange, ESNA, 5/16-18
(Superseded to 703222)

$6.49

$

In Stock, only 2 left!

0

0920

Murray 1752273YP

PLUG

$3.99

$

Usually ships in 2-12 days

0
