1696230-00 (CH 842100 SE) - Canadiana 33" Snow Thrower, Canada (2012) Handles & Controls Group Parts Diagram

33" Snow Thrower, Canada

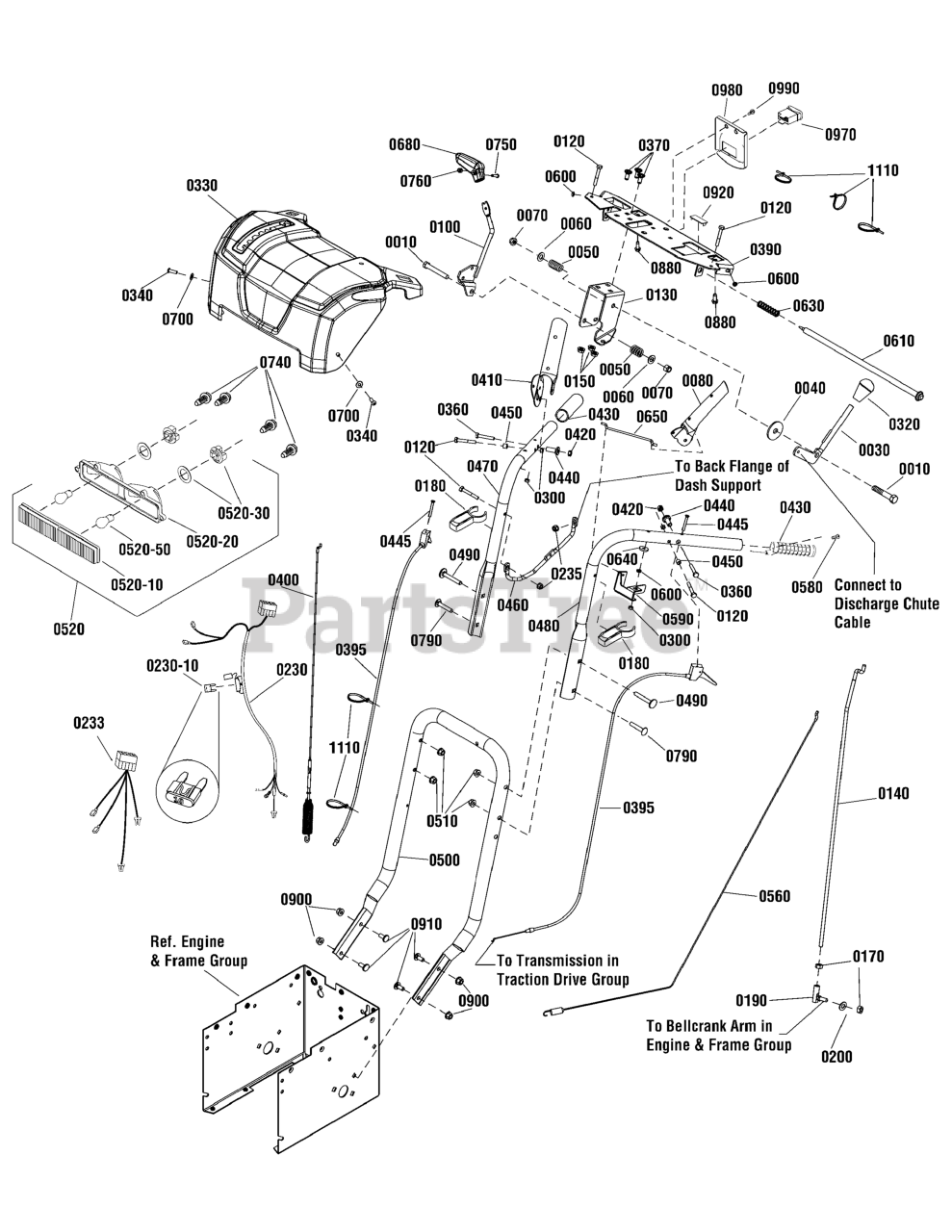

Handles & Controls Group Parts Diagram

  • Title

0010

Murray 1923701SM

CAPSCREW, Hex Head, 3/8-16 x 2, G5
(Superseded to 703589)

$4.49

$

In Stock, Qty 11

0

0030

Murray 1736192YP

LEVER, Deflector Control

$13.99

$

Usually ships in 2-12 days

0

0040

Murray 1924356SM

WASHER, 3/8
(Superseded to 703591)

$5.49

$

In Stock, Qty 17

0

0050

Murray 50786MA

SPRING, 3/4"

$5.49

$

Usually ships in 2-12 days

0

0060

Murray 1918266SM

WASHER, 3/8
(Superseded to 703590)

$3.99

$

In Stock, Qty 20+

0

0070

Murray 1919439SM

NUT, Hex Lock, ESNA Light, 3/8-16
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

0080

Murray 1739782AYP

LEVER, Clutch, LH

$

$

Not available

0100

Murray 1736836YP

LEVER, Speed
(Superseded to 703047)

$56.99

$

Usually ships in 2-12 days

0

0120

Murray 1921962SM

CAPSCREW, Hex Head, 1/4-20 x 1-3/4, G5
(Superseded to 703586)

$4.99

$

Usually ships in 2-12 days

0

0130

Murray 1737684YP

BRACKET, Controls

$16.99

$

Usually ships in 2-12 days

0

0140

Murray 1737331YP

ROD, Speed Control

$19.99

$

Usually ships in 2-12 days

0

0150

Murray 1931277SM

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0170

Murray 2820263SM

NUT, Hex, 5/16-24
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

0180

Murray 1739487YP

BRACKET, Mounting

$6.49

$

Usually ships in 2-12 days

0

0190

Murray 1739290YP

BALLJOINT
(Superseded to 703224)

$21.99

$

Usually ships in 2-12 days

0

0200

Murray 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0230

Murray 1755059YP

HARNESS

$59.99

$

Usually ships in 2-12 days

0

0230-10

* FUSE, Mini, 10 Amp

Note: (Included with Ref. No. 0230)

$

$

Not available

0233

Murray 1752164YP

HARNESS, Heated Hand Grip, ON/OFF

$43.99

$

In Stock, only 1 left!

0

0235

Murray 703463

NUT, Nylock Flanged, 1/4-20

$4.49

$

In Stock, Qty 5

0

0300

Murray 1920397SM

NUT, Hex Lock, ESNA Light, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0320

Murray 1732470SM

KNOB, 3/8-16

$19.99

$

In Stock, only 1 left!

0

0330

Murray 1736951YP

DASH

$128.99

$

Usually ships in 2-12 days

0

0340

Murray 1960001SM

SCREW, Hex Washer Head, Plastite, 10-14 x 5/8
(Superseded to 703062)

$4.49

$

In Stock, Qty 20+

0

0360

Murray 1750554YP

BOLT, Shoulder, 10-24

$4.99

$

In Stock, only 1 left!

0

0370

Murray 340720MA

BOLT, Carriage, 5/16-18 x 3/4
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

0390

Murray 1739500AYP

SUPPORT, Dash

$51.99

$

Usually ships in 2-12 days

0

0395

Murray 1737510YP

CABLE, Steering Control

$33.99

$

Usually ships in 2-12 days

0

0400

Murray 1737544YP

CABLE, Auger Drive
(Superseded to 703221)

$24.99

$

In Stock, only 3 left!

0

0410

Murray 1739783AYP

LEVER, Clutch, RH

$28.99

$

In Stock, only 1 left!

0

0420

Murray 1933896SM

NUT, Hex Lock, Nylon Insert, 10-24
(Superseded to 703412)

$4.49

$

In Stock, Qty 12

0

0430

Murray 1738124YP

HAND GRIP, Heated
(Superseded to 770002)

$86.99

$

Usually ships in 2-12 days

0

0440

Murray 1736542YP

SPACER, Stepped

$4.49

$

Usually ships in 2-12 days

0

0445

Murray 7073145YP

BOLT, Oval Head, 10-24 x 1-1/2

$3.49

$

Usually ships in 2-12 days

0

0450

Murray 1678392SM

SPACER, 1/4 ID x 3/8 OD x 5/16"
(Superseded to 703137)

$6.99

$

In Stock, only 2 left!

0

0460

Murray 1737552YP

BRACE

$22.99

$

In Stock, only 1 left!

0

0470

Murray 1737531AYP

HANDLE, Upper, RH

$59.99

$

Usually ships in 2-12 days

0

0480

Murray 1737532AYP

HANDLE, Upper, LH

$53.99

$

Usually ships in 2-12 days

0

0490

Murray 1960273SM

BOLT, Carriage, Short Neck, 5/16-18 x 2-1/4, G5
(Superseded to 704421)

$5.49

$

Usually ships in 2-12 days

0

0500

Murray 1737274AYP

HANDLE, Lower

$107.99

$

Usually ships in 2-12 days

0

0510

Murray 1739305YP

NUT, Hex Flange, ESNA, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 17

0

0520

Murray 1736176YP

HEADLIGHT ASSEMBLY

$64.99

$

Usually ships in 2-12 days

0

0520-10

LENS

Note: (Included in Ref. No. 0520)

$

$

Not available

0520-20

DEFLECTOR

Note: (Included in Ref. No. 0520)

$

$

Not available

0520-30

Murray 1736180YP

SOCKET & GASKET ASSEMBLY, Headlight

Note: (Included in Ref. No. 0520)

$10.99

$

In Stock, only 4 left!

0

0520-50

* BULB, Light, 12V 15W, 1156

Note: (Included in Ref. No. 0520)

$

$

Not available

0560

Murray 1737511YP

CABLE, Forward Drive

$24.99

$

In Stock, only 1 left!

0

0580

Murray 703044

SCREW, 1/8-20 x 1/8

$4.49

$

Usually ships in 2-12 days

0

0590

Murray 1733505ASM

BRACKET, Pivot, Free Hand
(Superseded to 1733505BMYP)

$14.99

$

Usually ships in 2-12 days

0

0600

Murray 1733095SM

SPACER, 1/4 ID x 3/8 OD x 1/8"

$4.49

$

Usually ships in 2-12 days

0

0610

Murray 1733509SM

ROD & SPRING ASSEMBLY

$81.99

$

Usually ships in 2-12 days

0

0630

Murray 2108360SM

SPRING, Compression, 2-1/4"

$5.49

$

In Stock, only 1 left!

0

0640

Murray 1960353SM

WASHER, 1/4
(Superseded to 703229)

$4.49

$

In Stock, only 2 left!

0

0650

Murray 1736360YP

ROD, Hold Down

$11.99

$

Usually ships in 2-12 days

0

0680

Murray 1733192SM

KNOB, Speed

$8.49

$

Usually ships in 2-12 days

0

0700

Murray 1921319SM

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 17

0

0740

Murray 7091105YP

SCREW, Hex Washer Head, #10-16 x 1/2

$5.49

$

In Stock, only 4 left!

0

0750

Murray 1960589SM

SCREW, Phillips, #10-24 x 3/4

$3.99

$

Usually ships in 2-12 days

0

0760

Murray 1933896SM

NUT, Hex Lock, Nylon Insert, 10-24
(Superseded to 703412)

$4.49

$

In Stock, Qty 12

0

0790

Murray 1931338SM

BOLT, Carriage, Short Neck, 5/16-18 x 1-3/4, G5
(Superseded to 703175)

$3.99

$

In Stock, only 2 left!

0

0880

Murray 7091081SM

SCREW, 1/4-15X3/4, Self-Tapping, BZ

$4.49

$

In Stock, Qty 18

0

0900

Murray 1960684SM

NUT, Hex KEPS, 5/16-18
(Superseded to 703222)

$5.99

$

In Stock, only 2 left!

0

0910

Murray 340720MA

BOLT, Carriage, 5/16-18 x 3/4
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

0920

Murray 1709188SM

PLUG

$4.99

$

In Stock, Qty 7

0

0970

Murray 1752242YP

SWITCH, Heated Hand Grip

$36.99

$

In Stock, only 1 left!

0

0980

Murray 1739861BMYP

BRACKET, Switch
(Superseded to 1739861AYP)

$19.99

$

Usually ships in 2-12 days

0

0990

Murray 1960556SM

SCREW, Pan Head Torx, Taptite, 1/4-20 x 3/4

$4.49

$

Usually ships in 2-12 days

0

1110

Murray 1701011SM

TIE, Self Lock

$5.49

$

In Stock, only 2 left!

0
