1696282-00 - Brute 29" Snow Thrower, 14.5 Gross TP (2012) Handles & Controls Group Parts Diagram

29" Snow Thrower, 14.5 Gross TP

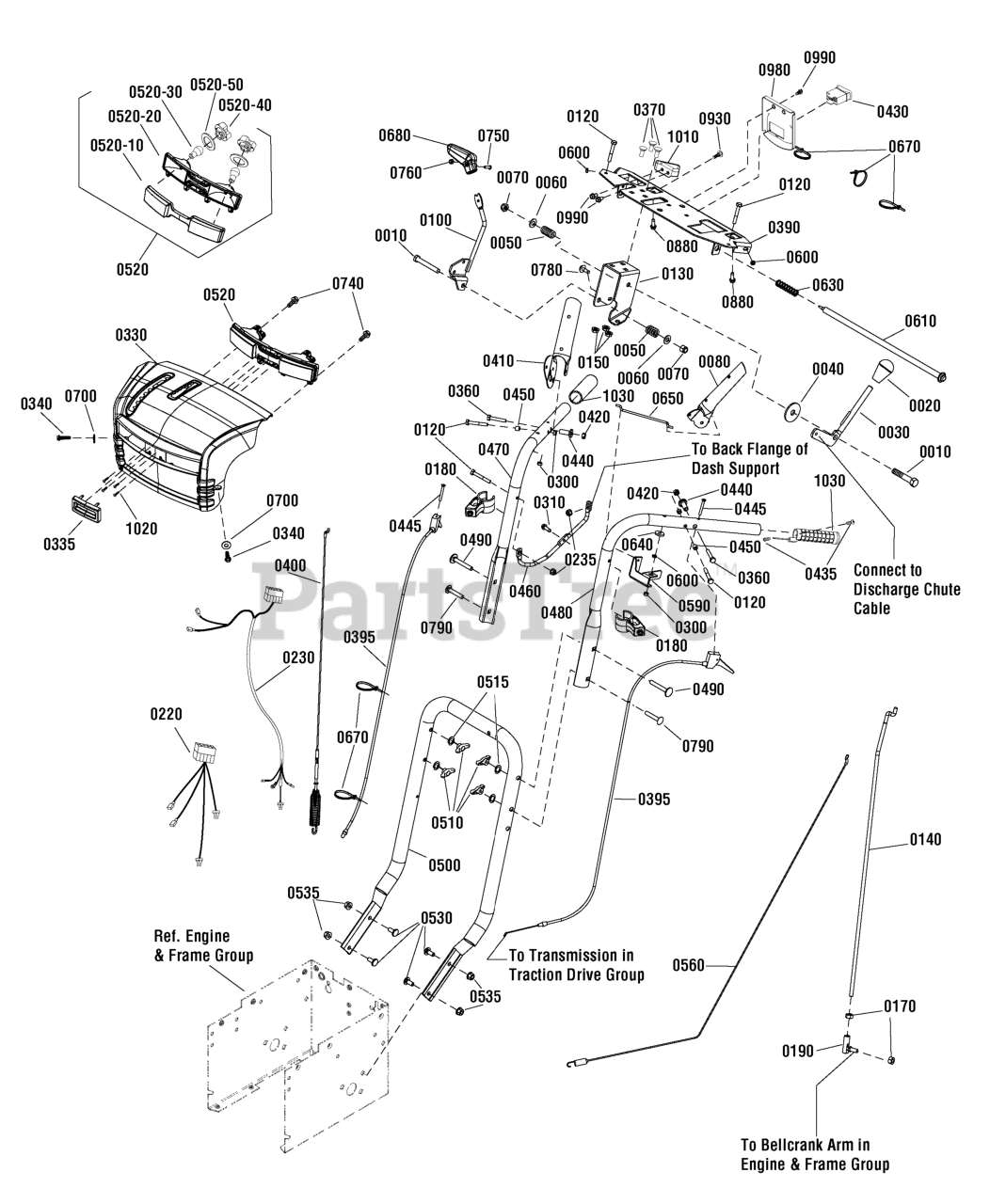

Handles & Controls Group Parts Diagram

  • Title

0010

Murray 703589

CAPSCREW, Hex Head, 3/8-16 x 2, G5

$4.49

$

In Stock, Qty 11

0

0020

Murray 1732470SM

KNOB, Deflector

$19.99

$

In Stock, only 1 left!

0

0030

Murray 1736192YP

LEVER, Deflector

$13.99

$

Usually ships in 2-12 days

0

0040

Murray 703591

WASHER, Flat, 13/32 x 1 1/2 x 1/8

$5.49

$

In Stock, Qty 17

0

0050

Murray 50786MA

SPRING, 3/4"

$5.49

$

Usually ships in 2-12 days

0

0060

Murray 703590

WASHER, .406

$3.99

$

In Stock, Qty 20+

0

0070

Murray 703117

NUT, Nylock, GR5, 3/8-16

$3.49

$

In Stock, Qty 20+

0

0080

Murray 1739782AYP

LEVER, Clutch, L.H.

$

$

Not available

0100

Murray 703047

SPEED LEVER ASSEMBLY

$56.99

$

Usually ships in 2-12 days

0

0120

Murray 703588

CAPSCREW, Hex Head, 1/4-20 x 1 3/4, GR5

$3.99

$

Usually ships in 2-12 days

0

0130

Murray 1737684YP

BRACKET, Controls

$16.99

$

Usually ships in 2-12 days

0

0140

Murray 1737331YP

ROD, Speed Select

$19.99

$

Usually ships in 2-12 days

0

0150

Murray 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0170

Murray 703331

NUT, Hex Flange Serrated Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

0180

Murray 1739510YP

BRACKET, Lower Mounting

$14.99

$

Usually ships in 2-12 days

0

0190

Murray 703224

BALL JOINT, Quick Release

$21.99

$

Usually ships in 2-12 days

0

0220

Murray 1752164YP

HARNESS, On/Off, HHG

$43.99

$

In Stock, only 1 left!

0

0230

Murray 1755059YP

WIRING HARNESS

$59.99

$

Usually ships in 2-12 days

0

0235

Murray 703463

NUT, Nylock Flanged, 1/4-20

$4.49

$

In Stock, Qty 5

0

0300

Murray 703232

NUT, Hex Lock ESNA Light 1/4-20

$4.49

$

In Stock, Qty 20+

0

0310

Murray 703466

SCREW, Hex Washer Head, Taptite, 1/4-20 x 3/4

$3.99

$

In Stock, only 2 left!

0

0330

Murray 1755373YP

PANEL ASSEMBLY

$107.99

$

Usually ships in 2-12 days

0

0335

Murray 1754422YP

FILLER STRIP, Center Piece

$3.99

$

Usually ships in 2-12 days

0

0340

Murray 703062

SCREW, Hex Washer Head, Plastite,10-14 x 5/8

$4.49

$

In Stock, Qty 20+

0

0360

Murray 1753529YP

BOLT, Shoulder, Hex Washer Head, 1/4 x 1-1/2

$3.99

$

Usually ships in 2-12 days

0

0370

Murray 703225

BOLT, Carriage, 5/16-18 x 3/4

$3.99

$

In Stock, Qty 20+

0

0390

Murray 1739500BMYP

SUPPORT, Dash

$54.99

$

Usually ships in 2-12 days

0

0395

Murray 1737510YP

CABLE, Steering Control

$33.99

$

Usually ships in 2-12 days

0

0400

Murray 703221

CABLE & SPRING ASSEMBLY, Auger Drive, R.H.

$24.99

$

In Stock, only 3 left!

0

0410

Murray 1739783AYP

LEVER, Clutch, RH

$28.99

$

In Stock, only 1 left!

0

0420

Murray 703412

NUT, Nylock, 10 x 24

$4.49

$

In Stock, Qty 12

0

0430

Murray 1752242YP

SWITCH, Heated Hand Grip

$36.99

$

In Stock, only 1 left!

0

0435

Murray 703044

SCREW, Square, 1/8-20 x 1/32

$4.49

$

Usually ships in 2-12 days

0

0440

Murray 703223

SPACER, Stepped

$4.49

$

Usually ships in 2-12 days

0

0445

Murray 703134

BOLT, 10-24 x 1.5, GR5

$3.49

$

Usually ships in 2-12 days

0

0450

Murray 703137

SPACER

$6.99

$

In Stock, only 2 left!

0

0460

Murray 1737552YP

BRACE

$22.99

$

In Stock, only 1 left!

0

0470

Murray 1737531AYP

HANDLE, Upper, R.H.

$59.99

$

Usually ships in 2-12 days

0

0480

Murray 1737532AYP

HANDLE, Upper, L.H.

$53.99

$

Usually ships in 2-12 days

0

0490

Murray 703168

BOLT, 5/16-18 x 2-1/4, Carriage, Curved Head

$3.99

$

In Stock, only 4 left!

0

0500

Murray 1737274AYP

HANDLE, Lower

$107.99

$

Usually ships in 2-12 days

0

0510

Murray 703065

KNOB, Wing, 5/16-18

$6.99

$

In Stock, Qty 20+

0

0515

Murray 703587

WASHER, Internal Tooth Lock, 5/16"

$4.49

$

In Stock, Qty 20+

0

0520

Murray 1754419YP

LIGHT ASSEMBLY, P19, Incandescent

Note: (Incl. Ref. No. 0520-10, 0520-20, 0520-30, 0520-40 & 0520-50)

$74.99

$

Usually ships in 2-12 days

0

0520-10

LENS, Light, P19

Note: (Included with Ref. No. 0520)

$

$

Not available

0520-20

LIGHT, Bezel, P19

Note: (Included with Ref. No. 0520)

$

$

Not available

0520-30

* BULB, Light, 12V 15W, 1156

Note: (Included with Ref. No. 0520)

$

$

Not available

0520-40

Murray 1736180YP

SOCKET & GASKET ASSEMBLY, Headlight

Note: (Included with Ref. No. 0520)

$10.99

$

In Stock, only 4 left!

0

0520-50

Murray 1736179YP

GASKET, Single, Twin Light
(Superseded to 1736180YP)

Note: (Included with Ref. No. 0520)

$10.99

$

In Stock, only 4 left!

0

0530

Murray 1737687YP

BOLT, Carriage, 5/16-18 x 3/4

$6.49

$

Usually ships in 2-12 days

0

0535

Murray 703222

NUT, Hex, KEPS, 5/16-18

$5.99

$

In Stock, only 2 left!

0

0560

Murray 1737511YP

CABLE, Traction Drive

$24.99

$

In Stock, only 1 left!

0

0590

Murray 1733505BMYP

BRKT, Pivot, Free Hand

$14.99

$

Usually ships in 2-12 days

0

0600

Murray 703124

SPACER, Powdered Metal

$3.99

$

Usually ships in 2-12 days

0

0610

Murray 1736363YP

ROD & SPRING ASSEMBLY

$33.99

$

Usually ships in 2-12 days

0

0630

Murray 2108360SM

SPRING, Compression

$5.49

$

In Stock, only 1 left!

0

0640

Murray 703229

WASHER, 0.261ID x 0.84OD x 0.12

$4.49

$

In Stock, only 2 left!

0

0650

Murray 1736360YP

ROD, Hold Down, 5-1/2"

$11.99

$

Usually ships in 2-12 days

0

0670

Murray 703586

TIE, Self Locking

$4.99

$

Usually ships in 2-12 days

0

0680

Murray 1733192SM

KNOB, Slot Speed

$8.49

$

Usually ships in 2-12 days

0

0700

Murray 703332

WASHER, Flat, 1/4

$4.49

$

In Stock, Qty 17

0

0740

Murray 703944

SCREW, Hex Washer Head, #10-16 x 0.375

$3.49

$

Usually ships in 2-12 days

0

0750

Murray 1960589SM

SCREW, Round Head Phillips, #10-24 x 3/4

$3.99

$

Usually ships in 2-12 days

0

0760

Murray 703412

NUT, Nylock, 10 x 24

$4.49

$

In Stock, Qty 12

0

0780

Murray 703466

SCREW, Hex Washer Head, Taptite, 1/4-20 x 3/4

$3.99

$

In Stock, only 2 left!

0

0790

Murray 703059

BOLT, Conical, 5/16-18 x 2

$4.49

$

In Stock, Qty 16

0

0880

Murray 7091081SM

SCREW, 1/4-15X3/4, Self-Tapping, BZ

$4.49

$

In Stock, Qty 18

0

0930

Murray 703101

BOLT, Carriage, 1/4-20 x 3/4

$3.99

$

In Stock, Qty 5

0

0980

Murray 1739861BMYP

BRACKET, Switch
(Superseded to 1739861AYP)

$19.99

$

Usually ships in 2-12 days

0

0990

Murray 1960556SM

SCREW, Pan Head, Torx, 1/4-20 x 3/4, Taptite

$4.49

$

Usually ships in 2-12 days

0

1010

Murray 1739483AYP

POD, Chute Rotation, RH

$35.99

$

Usually ships in 2-12 days

0

1020

Murray 1753218YP

SCREW, Torx, 8/18 x 1/2

$3.49

$

Usually ships in 2-12 days

0

1030

Murray 1738124YP

HAND GRIP, Heated 1" Dia. x 5-1/4 Lg
(Superseded to 770002)

$86.99

$

Usually ships in 2-12 days

0
