1696356 A-00 - Simplicity Grass Catcher Hitch & Tube Kit Hitch & Tube Group Parts Diagram

Grass Catcher Hitch & Tube Kit

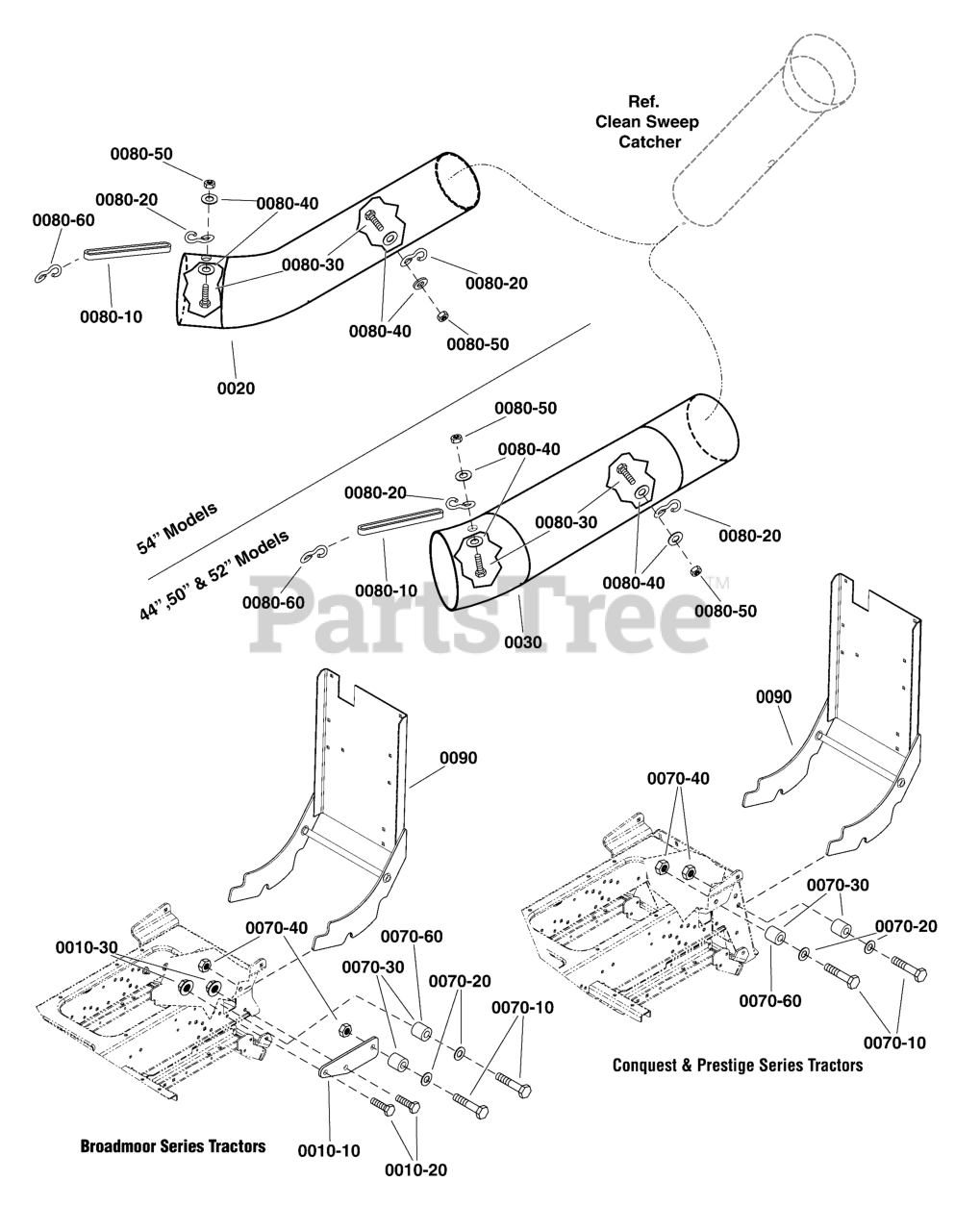

Hitch & Tube Group Parts Diagram

  • Title

--

HARDWARE BAG, Broadmoor Adapter

Note: (Not a Serviceable part. Includes items 0010-10 through 0010-30. Order components separately - 1756310)

$

$

Not available

0010-10

Simplicity 1755436AYP

PLATE, Side Extension

$82.99

$

Usually ships in 2-12 days

0

0010-20

Simplicity 703407

CAPSCREW, Hex Head, 3/8-16 x 1
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 2 left!

0

0010-30

Simplicity 703793

NUT, Hex Flange Lock, 3/8-16
(Superseded to 5025128SM)

$3.49

$

In Stock, Qty 16

0

0020

Simplicity 1717072SM

TUBE, Lower

Note: (For 54" models)

$188.99

$

Usually ships in 2-12 days

0

0030

Simplicity 1723166SM

TUBE, Lower

Note: (For 44", 50", & 52" models)

$109.99

$

Usually ships in 2-12 days

0

--

HARDWARE BAG, Carrier

Note: (Not a Serviceable part,. Includes Ref. Nos. 0070-10 through 0070-60. Order components separately - 1756324)

$

$

Not available

0070-10

Simplicity 703856

CAPSCREW, Hex Head, 1/2-13 x 2-1/4

$12.99

$

Usually ships in 2-12 days

0

0070-20

Simplicity 703451

WASHER, Flat, 17/32 X 1 1/4

$4.49

$

In Stock, Qty 20+

0

0070-30

Simplicity 703450

SPACER, .75 OD X .5 ID x .77"

$8.99

$

Usually ships in 2-12 days

0

0070-40

Simplicity 703453

NUT, Hex Lock ESNA, 1/2-13

$6.49

$

In Stock, Qty 13

0

0070-60

Simplicity 1722148SM

SPACER, .75 OD x .5 ID x 1.03"

Note: (Use on all Non-Suspensions Units)

$12.99

$

In Stock, only 1 left!

0

--

HARDWARE BAG, Tubes

Note: (Not a Serviceable part. Includes Ref. Nos. 0080-10 through 0000-60. Order components separately - 1756324)

$

$

Not available

0080-10

Simplicity 2172744SM

STRAP, Rubber, Black

$19.99

$

Usually ships in 2-12 days

0

0080-20

Simplicity 1723168SM

HOOK
(Superseded to 84003954)

$9.99

$

Usually ships in 2-12 days

0

0080-30

Simplicity 1924009SM

CAPSCREW, Hex Head, 1/4-20 x 7/8
(Superseded to 703819)

$4.49

$

Usually ships in 2-12 days

0

0080-40

Simplicity 703332

WASHER, Flat, 1/4

$4.49

$

In Stock, Qty 20+

0

0080-50

Simplicity 703232

NUT, Hex Lock ESNA, 1/4-20

$4.49

$

In Stock, Qty 20+

0

0080-60

Simplicity 1672689SM

HOOK, S

$33.99

$

Usually ships in 2-12 days

0

0090

Simplicity 1755661AYP

HITCH ASSEMBLY

$398.99

$

Usually ships in 2-12 days

0
