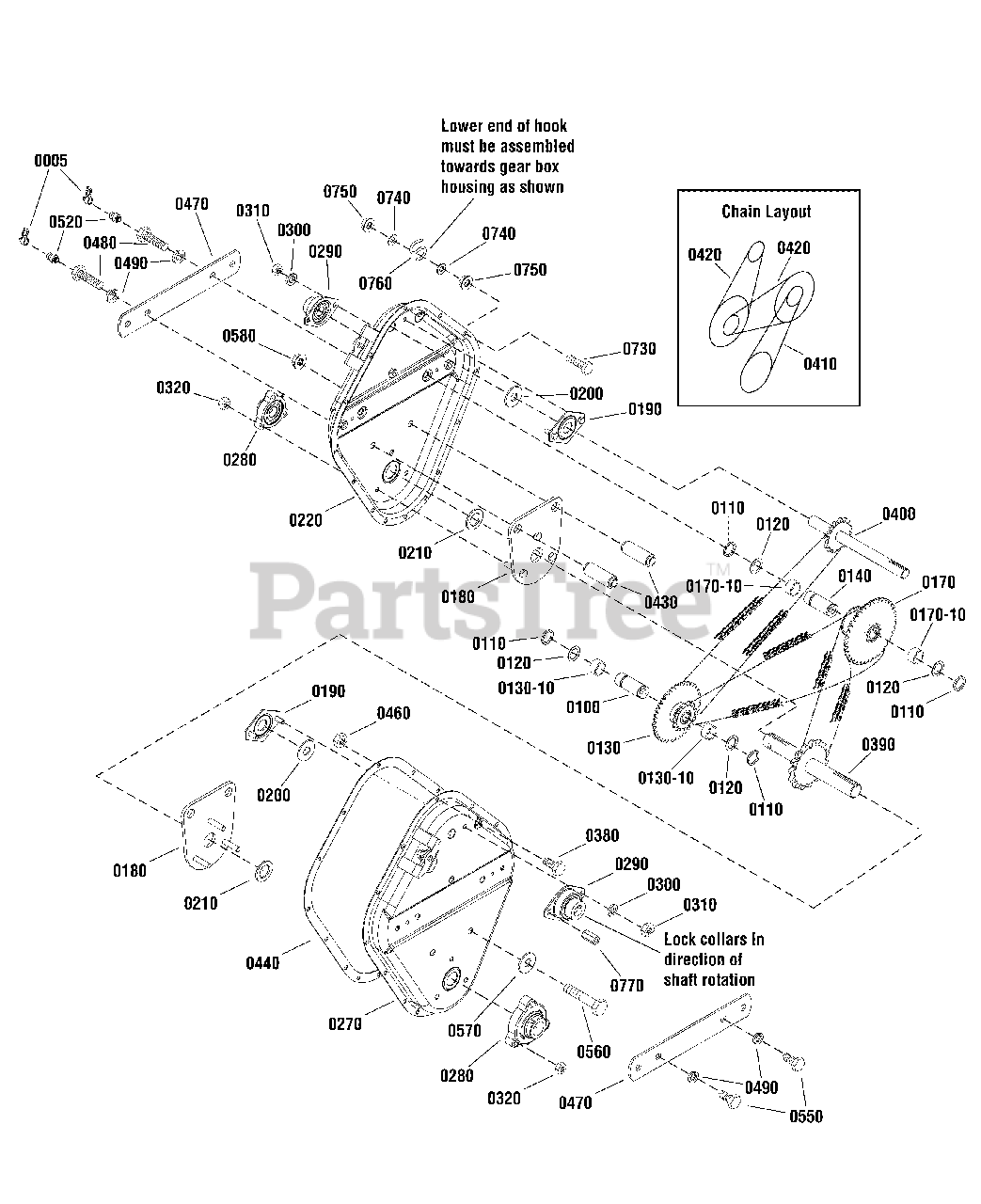

1696360-00 - Simplicity 36" Tiller Attachment Housing Group Parts Diagram

36" Tiller Attachment

Housing Group Parts Diagram

  • Title

0005

Simplicity 2105363SM

CAP, Grease

$3.49

$

Usually ships in 2-12 days

0

0100

Simplicity 2105292SM

SPACER, Internal

$51.99

$

Usually ships in 2-12 days

0

0110

Simplicity 2827320SM

RING, Retaining

$8.49

$

Usually ships in 2-12 days

0

0120

Simplicity 2860208SM

WASHER, 1

$4.99

$

Usually ships in 2-12 days

0

0130

Simplicity 1650976SM

SPROCKET & BEARING ASSEMBLY

Note: (Includes Ref # 0130-10)

$198.99

$

Usually ships in 2-12 days

0

0130-10

Simplicity 2105195SM

BEARING, Roller

$34.99

$

In Stock, only 2 left!

0

0140

Simplicity 2105192SM

SPACER, Inter.

$110.99

$

Usually ships in 2-12 days

0

0170

Simplicity 1650975SM

SPROCKET & BEARING ASSEMBLY

Note: (Includes Ref # 0170-10)

$259.99

$

Usually ships in 2-12 days

0

0170-10

Simplicity 2105195SM

BEARING, Roller

$34.99

$

In Stock, only 2 left!

0

0180

Simplicity 1669298SM

PLATE ASSEMBLY

$53.99

$

Usually ships in 2-12 days

0

0190

Simplicity 1669338SM

PLATE ASSEMBLY, Upper Bearing

$104.99

$

Usually ships in 2-12 days

0

0200

Simplicity 2105365SM

SEAL

$4.99

$

In Stock, only 2 left!

0

0210

Simplicity 2105357SM

SEAL

$5.99

$

In Stock, Qty 8

0

0220

Simplicity 2105366ASM

CASE ASSEMBLY, Half, R.H.

$182.99

$

Usually ships in 2-12 days

0

0270

Simplicity 2105367ASM

CASE ASSEMBLY, Half, L.H.

$182.99

$

Usually ships in 2-12 days

0

0280

Simplicity 2105309SM

BEARING

$158.99

$

In Stock, only 2 left!

0

0290

Simplicity 1669337SM

BEARING

$85.99

$

Usually ships in 2-12 days

0

0300

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0310

Simplicity 1917372SM

NUT, Hex, 5/16-1
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

0320

Simplicity 1930645SM

LOCKNUT, Hex, Jam, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

0380

Simplicity 1925205SM

CAPSCREW, Hex Head, 5/16-18 x 5/8
(Superseded to 703822)

$4.49

$

In Stock, only 2 left!

0

0390

Simplicity 2178177SM

SHAFT ASSEMBLY, Tine

$277.99

$

In Stock, only 1 left!

0

0400

Simplicity 2105298SM

SHAFT ASSEMBLY, Pulley

$71.99

$

Usually ships in 2-12 days

0

0410

Simplicity 2178174SM

CHAIN, # 50

$86.99

$

Usually ships in 2-12 days

0

0420

Simplicity 2105336SM

CHAIN, # 40

$29.99

$

Usually ships in 2-12 days

0

0430

Simplicity 2105360SM

SPACER
(Superseded to 2105360ASM)

$14.99

$

Usually ships in 2-12 days

0

0440

Simplicity 2105373SM

GASKET

$42.99

$

In Stock, Qty 8

0

0460

Simplicity 1923362SM

LOCKNUT, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 10

0

0470

Simplicity 2105320ASM

BAR, Side

$

$

Not available

0480

Simplicity 2105132SM

BOLT, Hex Head, Drilled & Tapped

$18.99

$

Usually ships in 2-12 days

0

0490

Simplicity 1916966SM

LOCKWASHER, 1/2
(Superseded to 703341)

$4.49

$

Usually ships in 2-12 days

0

0520

Simplicity 2815019SM

FITTING, Grease

$4.49

$

In Stock, only 2 left!

0

0550

Simplicity 1929528SM

CAPSCREW, Hex Head, 1/2-20 x 1

$4.49

$

In Stock, only 2 left!

0

0560

Simplicity 1926158SM

CAPSCREW, Hex Head, 1/2-13 x 4

$6.99

$

In Stock, only 1 left!

0

0570

Simplicity 1918431SM

WASHER, 1/2
(Superseded to 704011)

$4.49

$

In Stock, only 1 left!

0

0580

Simplicity 1930644SM

LOCKNUT, Flange, 1/2-13

$3.49

$

In Stock, only 1 left!

0

0730

Simplicity 1921977SM

CAPSCREW, Hex Head, 5/16-1 8 x 1-1 /4
(Superseded to 703570)

$4.99

$

In Stock, Qty 12

0

0740

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

0750

Simplicity 1935048SM

LOCKNUT, Flange, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

0760

Simplicity 1679204SM

HOOK, "S

$2.99

$

Usually ships in 2-12 days

0

0770

Simplicity 1707599SM

ANCHOR SPRING

$31.99

$

Usually ships in 2-12 days

0
