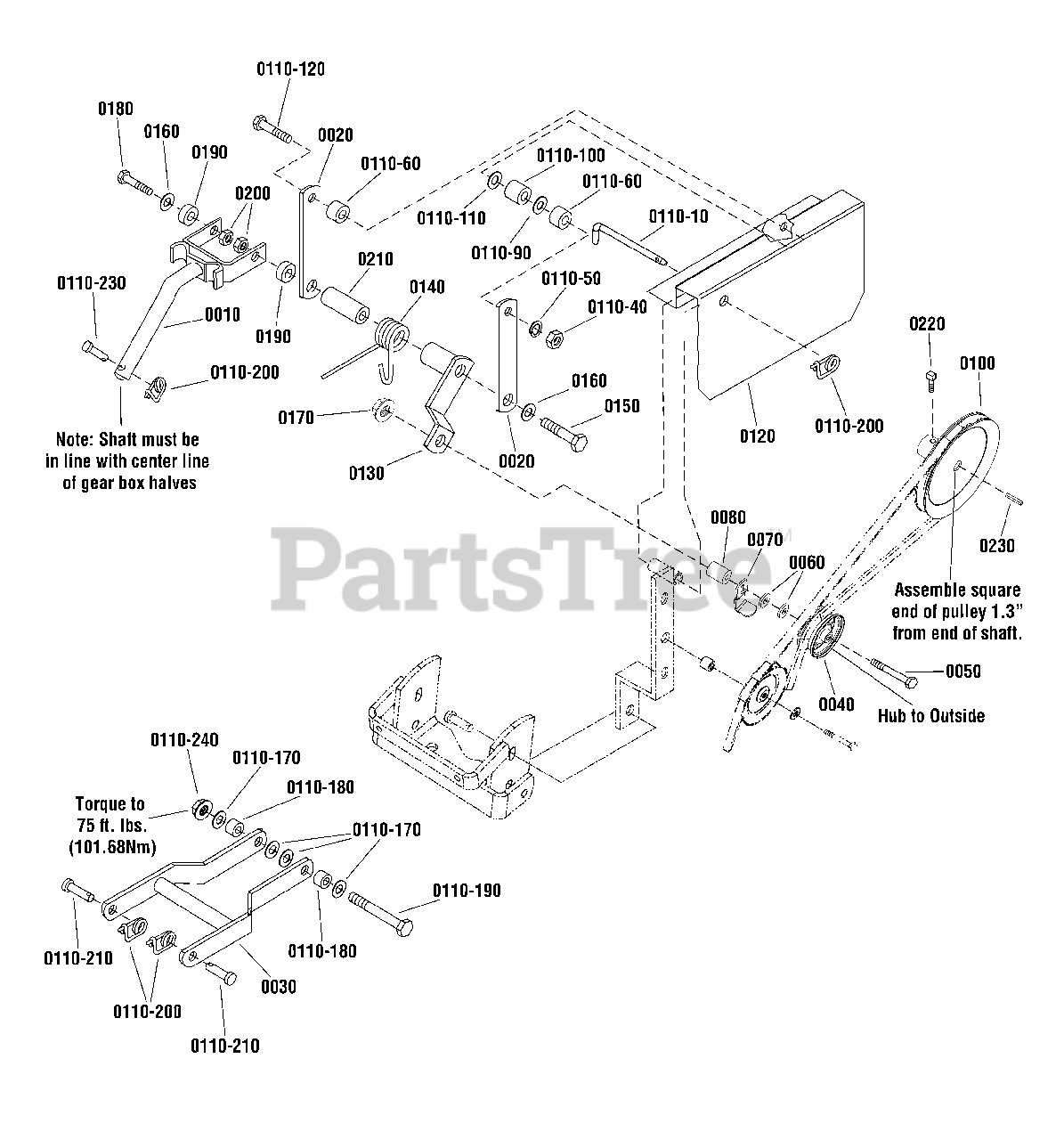

1696360-00 - Snapper 36" Tiller Attachment Drive Group Parts Diagram

36" Tiller Attachment

Drive Group Parts Diagram

  • Title

0010

Snapper 1707569ASM

LIFT ASSEMBLY

$302.99

$

Usually ships in 2-12 days

0

0020

Snapper 2105359ASM

SUPPORT, Rear Belt Guard

$

$

Not available

0030

Snapper 1651844ASM

FRAME ASSEMBLY

$211.99

$

Usually ships in 2-12 days

0

0040

Snapper 1721133SM

PULLEY, Idler, 2 3/4

$29.99

$

In Stock, Qty 9

0

0050

Snapper 703182

CAPSCREW, Hex Head, 3/8-16 X 3 1/2, GR5
(Superseded to 5025013X28SM)

$4.99

$

In Stock, only 2 left!

0

0060

Snapper 704128

WASHER, Flat

$5.49

$

In Stock, Qty 20+

0

0070

Snapper 1708352ASM

GUARD, Spring

$37.99

$

Usually ships in 2-12 days

0

0080

Snapper 1709923SM

SPACER, 1

$28.99

$

Usually ships in 2-12 days

0

0090

Snapper 703158

NUT, Hex Flange, 3/8-16
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0100

Snapper 1723854SM

PULLEY, W/Hub, 7.96 OD x .752ID x .562

$113.99

$

Usually ships in 2-12 days

0

--

Snapper 1757413

HARDWARE BAG

Note: (Not a serviceable part, order parts separately)

$

$

Not available

0110-10

Snapper 1657562SM

ROD, Pivot

$7.49

$

In Stock, only 1 left!

0

0110-40

Snapper 703465

Nut, 5/6-18, GR5
(Superseded to 7091511SM)

$3.49

$

In Stock, only 4 left!

0

0110-50

Snapper 703116

WASHER, Lock, 5/16
(Superseded to 5025170SM)

$4.49

$

Usually ships in 2-12 days

0

0110-60

Snapper 1704716SM

SPACER, 3/4

$8.99

$

Usually ships in 2-12 days

0

0110-100

Snapper 1666106SM

BUSHING, 3/4
(Superseded to 703121)

$10.99

$

In Stock, only 1 left!

0

0110-110

Snapper 2860171SM

WASHER, Nylon

$4.49

$

In Stock, Qty 11

0

0110-120

Snapper 703869

CAPSCREW, Hex Head, 5/16-18 X 2 3/4, GR 5

$6.49

$

Usually ships in 2-12 days

0

0110-170

Snapper 703451

WASHER, Flat, 17/32 X 1 1/4

$4.49

$

In Stock, Qty 20+

0

0110-180

Snapper 2105386SM

SPACER, 7/8

$32.99

$

Usually ships in 2-12 days

0

0110-190

Snapper 1926159SM

CAPSCREW, Hex Head, 1/2-13 X 5, G8

$10.99

$

In Stock, only 1 left!

0

0110-200

Snapper 703852

PIN, Retainer, 5/16 x 3/8

$4.49

$

In Stock, Qty 19

0

0110-210

Snapper 1753526YP

PIN, Clevis

$

$

Not available

0110-230

Snapper 704241

PIN, Round Head, 3/8 X 2

$9.99

$

In Stock, only 2 left!

0

0110-240

Snapper 1930644SM

NUT, Hex Flange, Two-Way Lock, 1/2-13

$3.49

$

In Stock, Qty 14

0

0120

Snapper 1707564SM

COVER, Belt

$

$

Not available

0130

Snapper 2105295ASM

ARM & HUB ASSEMBLY

$

$

Not available

0140

Snapper 1707593SM

SPRING, Torsion

$44.99

$

Usually ships in 2-12 days

0

0150

Snapper 1930585SM

CAPSCREW, Hex Head 7/16-14 X 3 1/2

$7.49

$

In Stock, only 1 left!

0

0160

Snapper 1925125SM

WASHER, 7/16

$6.99

$

In Stock, only 1 left!

0

0180

Snapper 703579

CAPSCREW, Hex Head, 7/16-14 X 1 1/4, GR 8

$4.99

$

In Stock, Qty 20+

0

0190

Snapper 2105346SM

SPACER, 3/4

$30.99

$

Usually ships in 2-12 days

0

0200

Snapper 1930650SM

NUT, Hex Flange, 7/16-14

$5.49

$

In Stock, Qty 15

0

0210

Snapper 2105339SM

SPACER, 3/4

$

$

Not available

0220

Snapper 1960474SM

SCREW, Set 3/8-16 X 1/2

$6.49

$

In Stock, Qty 5

0

0230

Snapper 2157427SM

KEY, Parallel

$5.49

$

Usually ships in 2-12 days

0
