1696362-00 - Simplicity Turbo Collection System for 52" FAB Mower Deck Turbo Mounting Group Parts Diagram

Turbo Collection System for 52" FAB Mower Deck

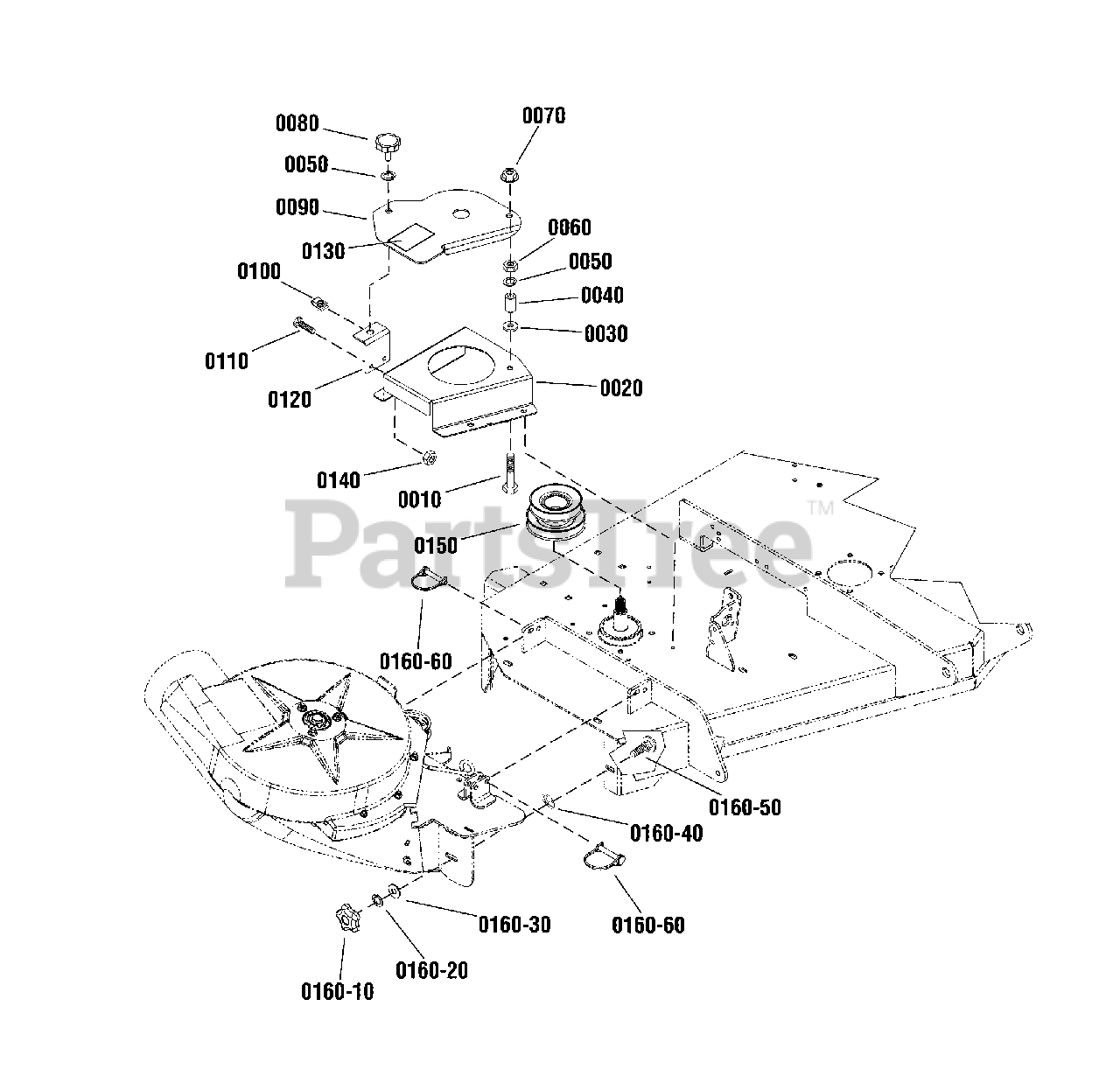

Turbo Mounting Group Parts Diagram

  • Title

0010

Simplicity 703177

BOLT, 5/16-18 X 2-1/4
(Superseded to 5025011X18SM)

$4.49

$

Usually ships in 2-12 days

0

0020

Simplicity 1756291AYP

COVER, Pulley Turbo

$151.99

$

Usually ships in 2-12 days

0

0030

Simplicity 1960141SM

WASHER, 5/16

$3.99

$

Usually ships in 2-12 days

0

0040

Simplicity 5101260YP

SPACER, .33 X .63 X 1

$10.99

$

Usually ships in 2-12 days

0

0050

Simplicity 703116

LOCKWASHER, Split, 5/16
(Superseded to 5025170SM)

$4.49

$

Usually ships in 2-12 days

0

0060

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, only 4 left!

0

0070

Simplicity 703115

NUT, Ny Lock Flange, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0080

Simplicity 5101731YP

KNOB, 5/16-18 X 1, Rosette

$10.99

$

Usually ships in 2-12 days

0

0090

Simplicity 1687737YP

COVER, Pulley, w/Decal

$

$

Not available

0100

Simplicity 1935255SM

NUT, Speed, 5/16-18

$3.49

$

In Stock, Qty 8

0

0110

Simplicity 703338

CAPSCREW, Hex Head, 1/4-20 X 5/8

$3.99

$

Usually ships in 2-12 days

0

0120

Simplicity 1756293AYP

BRACKET, Pulley

$50.99

$

Usually ships in 2-12 days

0

0130

Simplicity 5103184YP

DECAL, Danger

$13.99

$

Usually ships in 2-12 days

0

0140

Simplicity 703232

NUT, Hex, 1/4-20

$4.49

$

In Stock, Qty 20+

0

0150

Simplicity 1756184YP

PULLEY, Turbo, 52" Fab

$338.99

$

Usually ships in 2-12 days

0

--

HARDWARE BAG

Note: (Not a serviceable part, 1756733)

$

$

Not available

0160-10

Simplicity 7105085YP

KNOB, Handle, 5 Prong

$7.49

$

In Stock, Qty 20+

0

0160-20

Simplicity 703116

LOCKWASHER, Split, 5/16
(Superseded to 5025170SM)

$4.49

$

Usually ships in 2-12 days

0

0160-30

Simplicity 1924874SM

WASHER, Flat, 5/16
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

0160-40

Simplicity 703297

RETAINER, Pushnut, 5/16 x 5/8

$3.99

$

In Stock, Qty 7

0

0160-50

Simplicity 1960223SM

BOLT, Carriage, 5/16-18 x 1 1/4
(Superseded to 703446)

$4.49

$

In Stock, only 2 left!

0

0160-60

Simplicity 5100847SM

SNAPPERPIN, 5/16 X 2

$16.99

$

In Stock, only 1 left!

0
